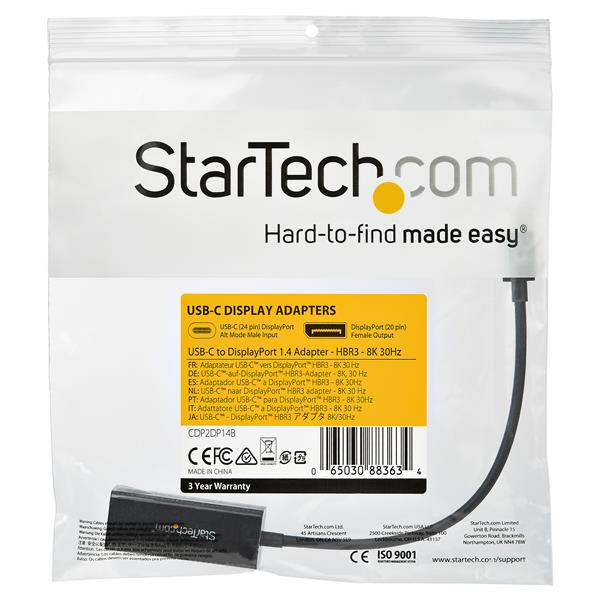

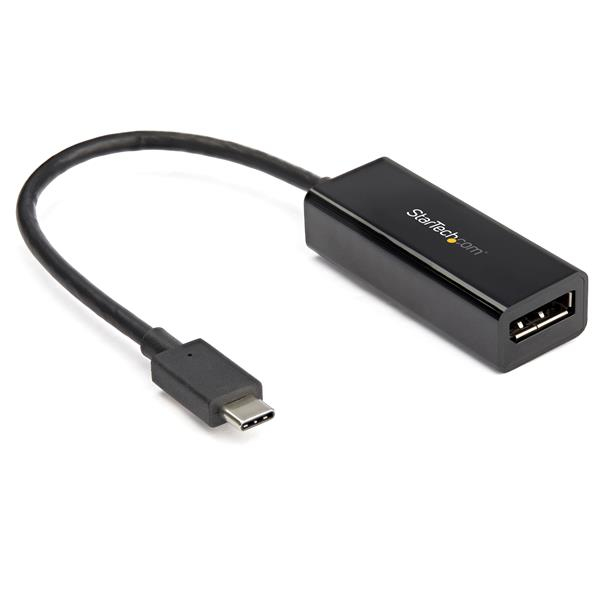

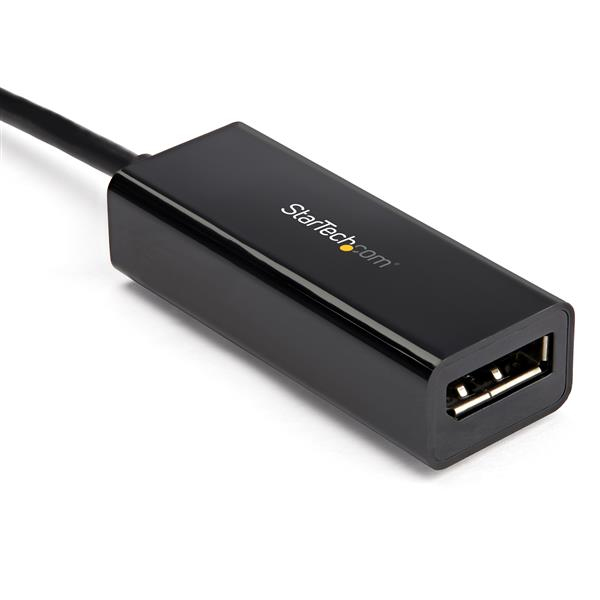

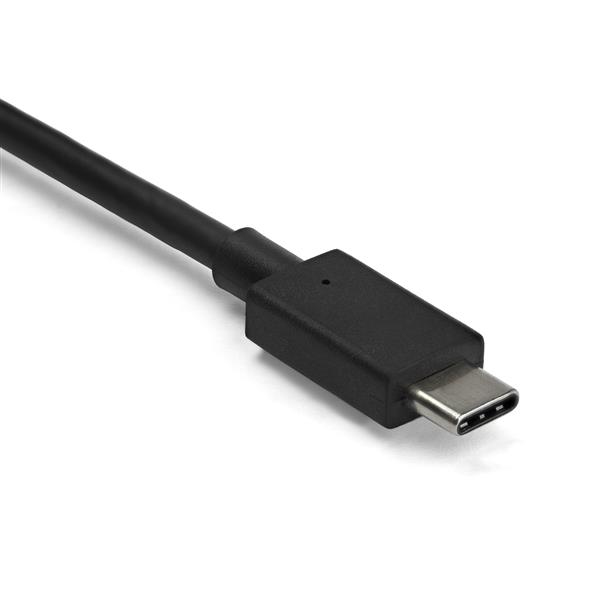

USB C to DisplayPort Adapter - 8K/5K/4K USB Type C to DP 1.4 Alt Mode Video Converter - HBR3/DSC/HDR - 8K
60Hz Thunderbolt 3 Compatible DisplayPort
Model CDP2DP14BEAN 065030883634
30 specifications
- Weight34 g
- ColourBlack
- USB connector typeUSB Type-C
- Width60 mm
- Operating temperature (T-T)5 - 35 °C
- Compliance certificatesRoHS
Overview
- Weight
- 34 g
- Colour
- Black
- USB connector type
- USB Type-C
- Width
- 60 mm
- Operating temperature (T-T)
- 5 - 35 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2DP14B
- Part number
- CDP2DP14B
- EAN / UPC
- 065030883634
- Also known as
- StarTech.com USB C to DisplayPort Adapter - 8K/5K/4K USB Type C to DP 1.4 Alt Mode Video Converter - HBR3/DSC/HDR - 8K 60Hz Thunderbolt 3 Compatible DisplayPort
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320 |
| Audio output channels | 7.1 channels |
| Chipset | STM32F072 |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 24 mm |
| Height | 15 mm |
| Weight | 34 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 30 - 60% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 106 mm |
| Package height | 22 mm |
| Package weight | 44 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case width | 508 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 230 mm |
| Harmonized System (HS) code | 84733020 |
