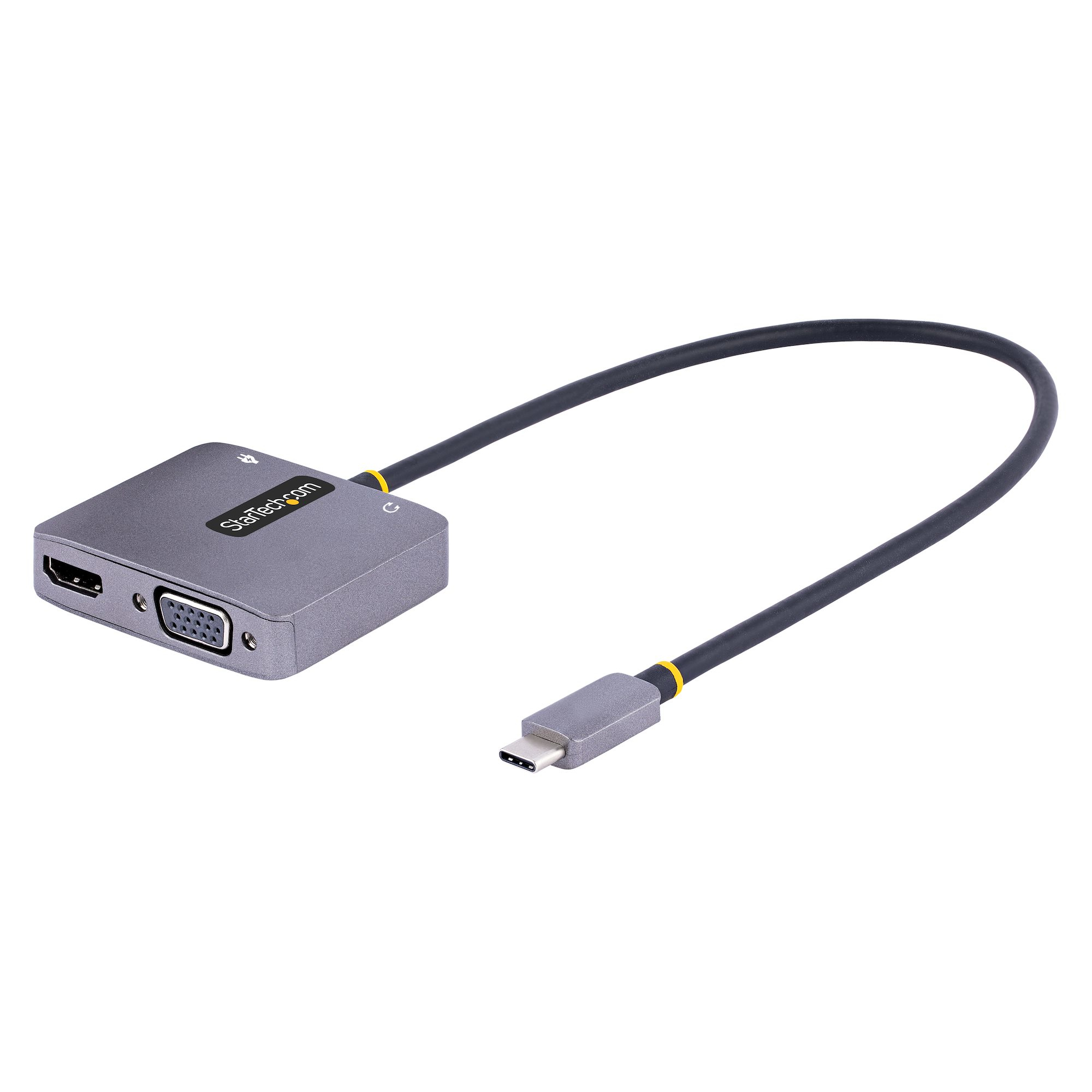

USB C Video Adapter, USB C to HDMI VGA Multiport Adapter
3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Displa
Model 122-USBC-HDMI-4K-VGAEAN 065030895590
37 specifications
- Weight41 g
- ColourGrey
- USB connector typeUSB Type-C
- Width60 mm
- Operating temperature (T-T)0 - 45 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 41 g
- Colour
- Grey
- USB connector type
- USB Type-C
- Width
- 60 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- 122-USBC-HDMI-4K-VGA
- Part number
- 122-USBC-HDMI-4K-VGA
- EAN / UPC
- 065030895590
- Also known as
- StarTech.com USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Displa
Specifications
37 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |

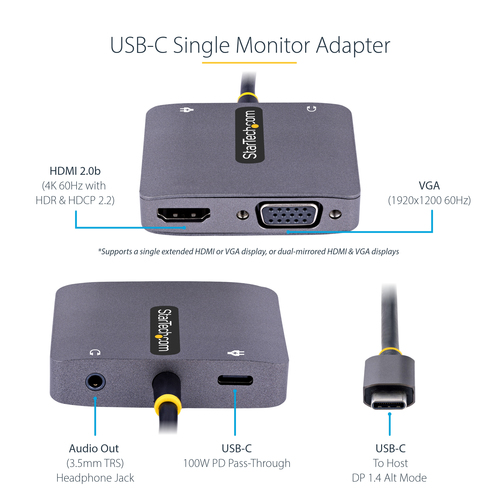

| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Maximum transfer distance | 30 m |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) output | Yes |
| HDMI version | 2.0b |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Audio output channels | 7.1 channels |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Integrated USB cable | Yes |

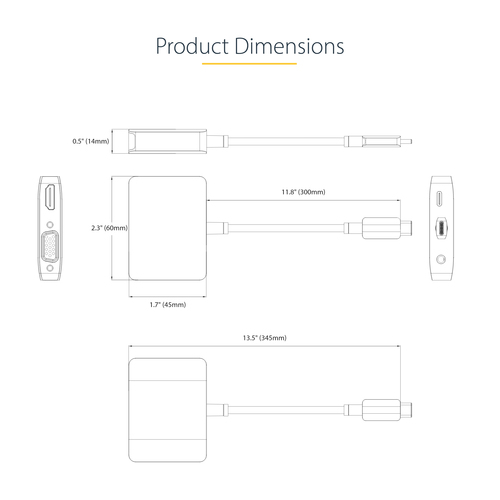

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 45 mm |
| Height | 14 mm |
| Weight | 41 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 147 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 245 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 541 mm |
| Master (outer) case length | 348 mm |
| Master (outer) case height | 324 mm |
| Harmonized System (HS) code | 84733020 |
