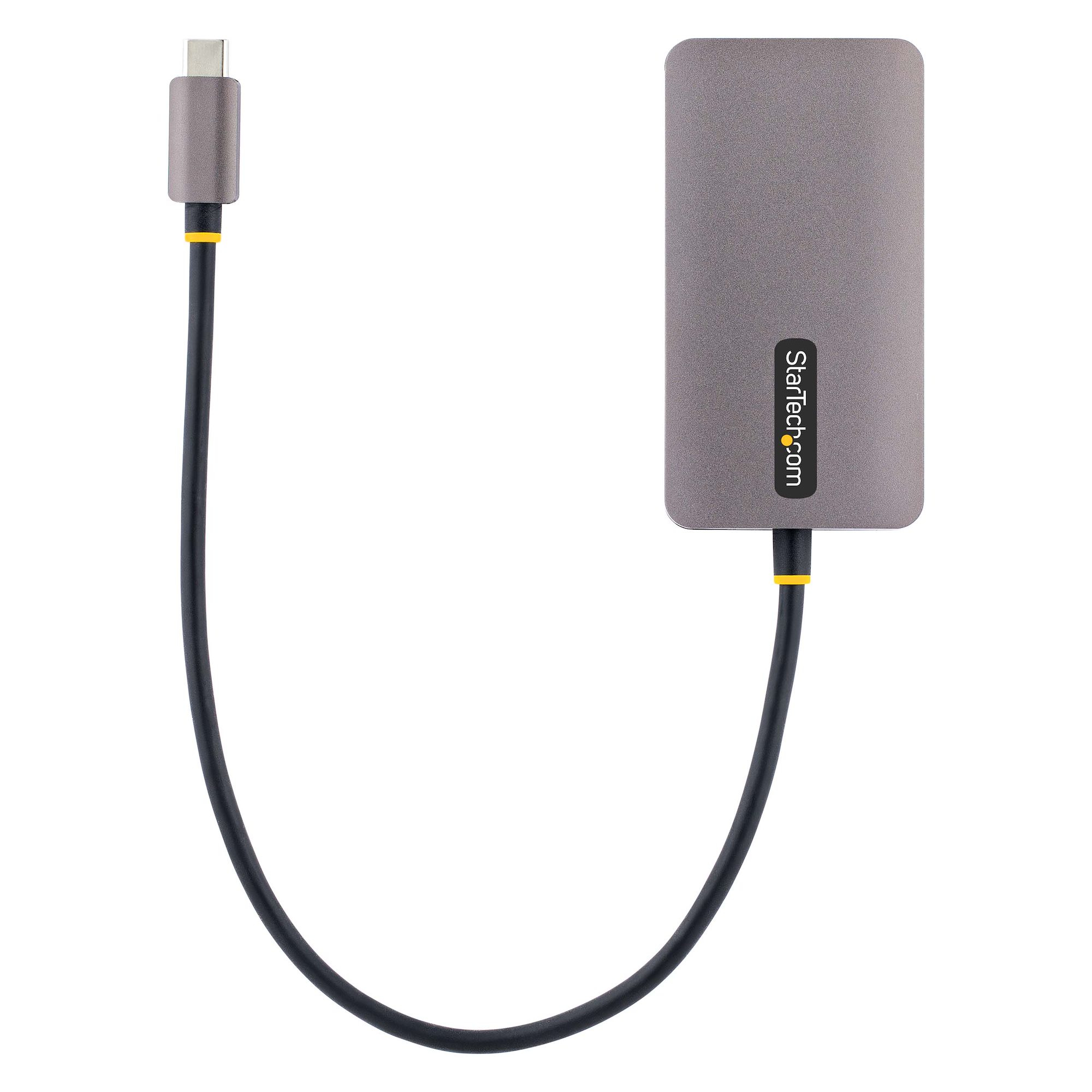

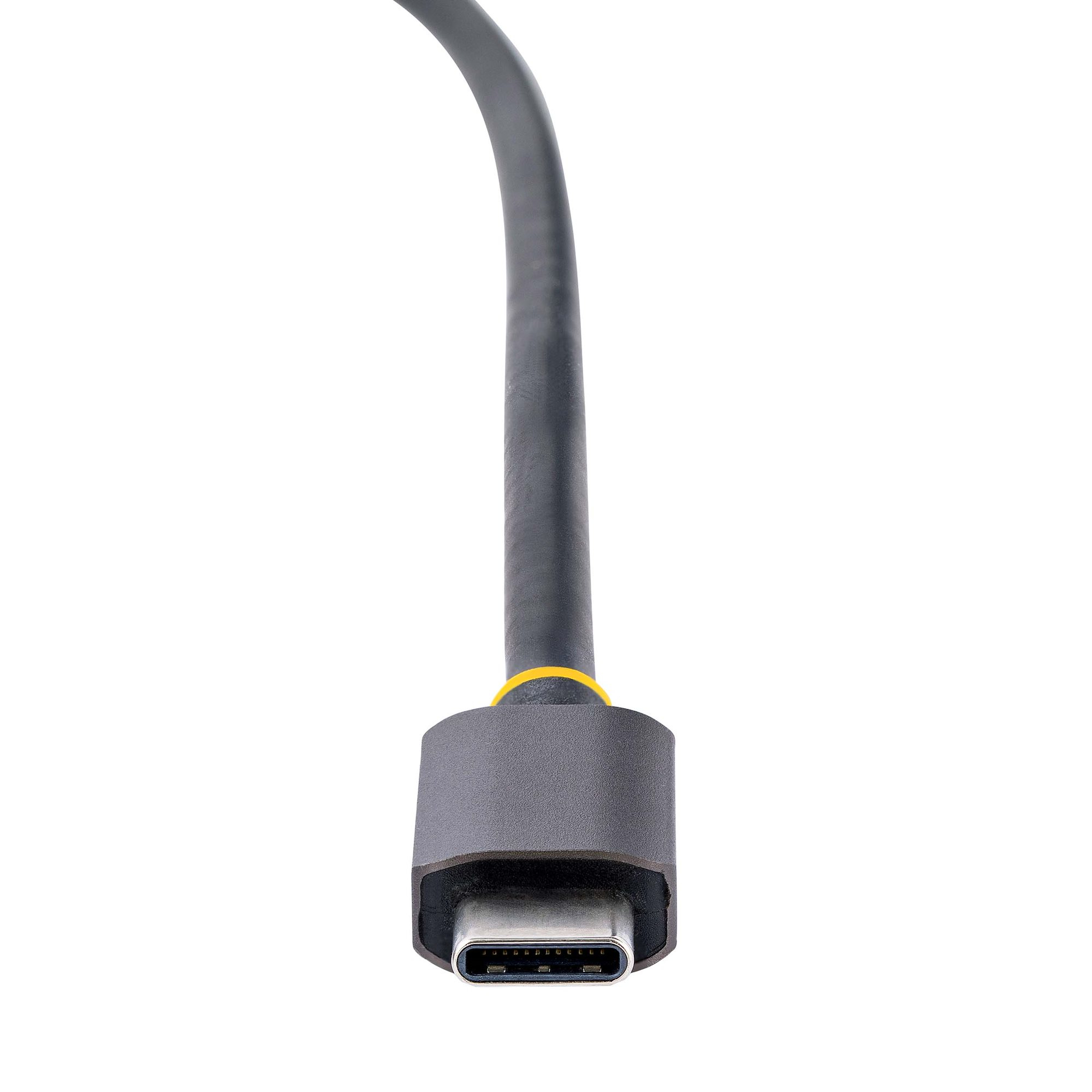

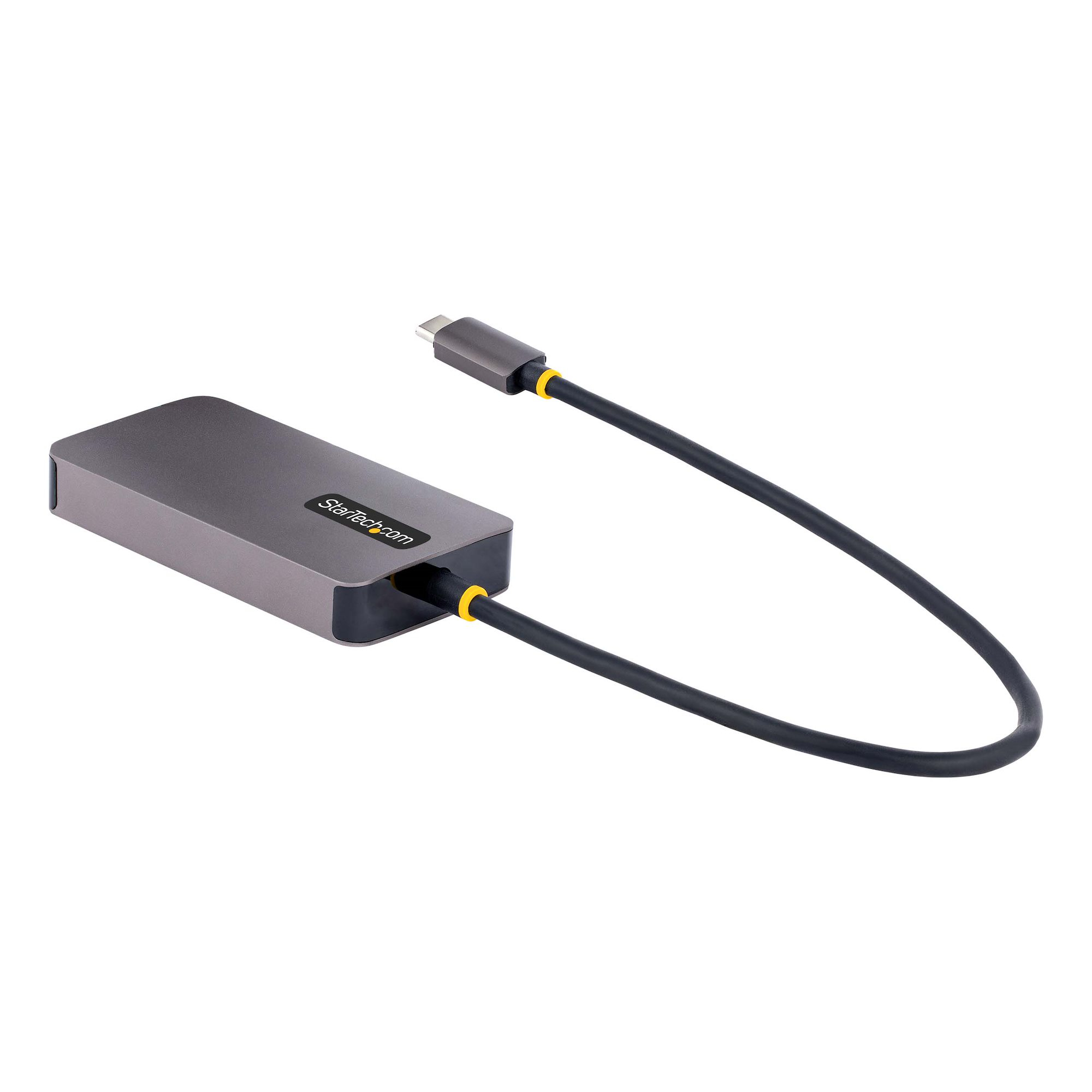

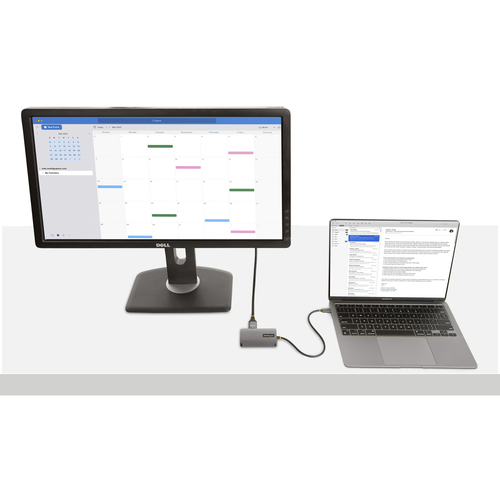

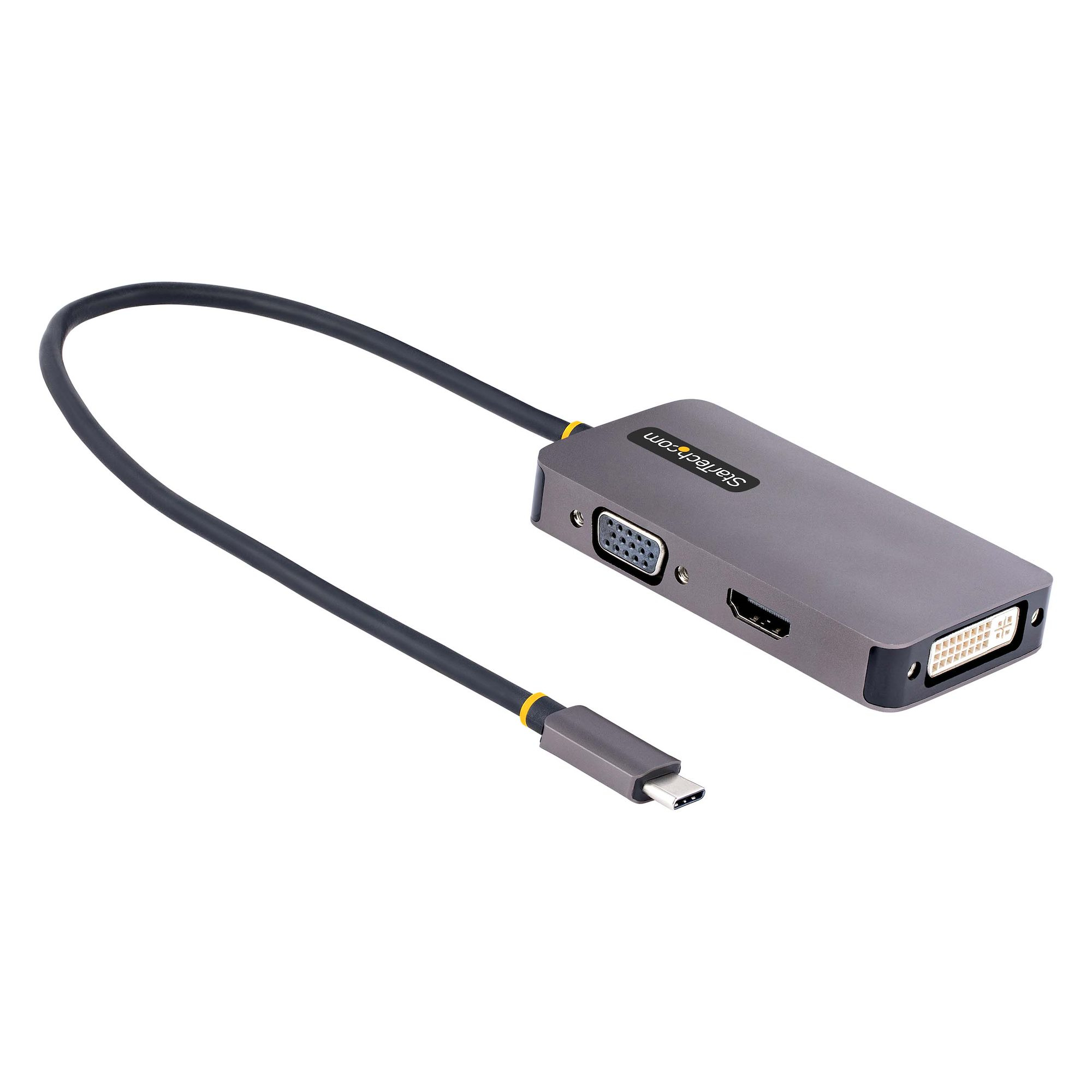

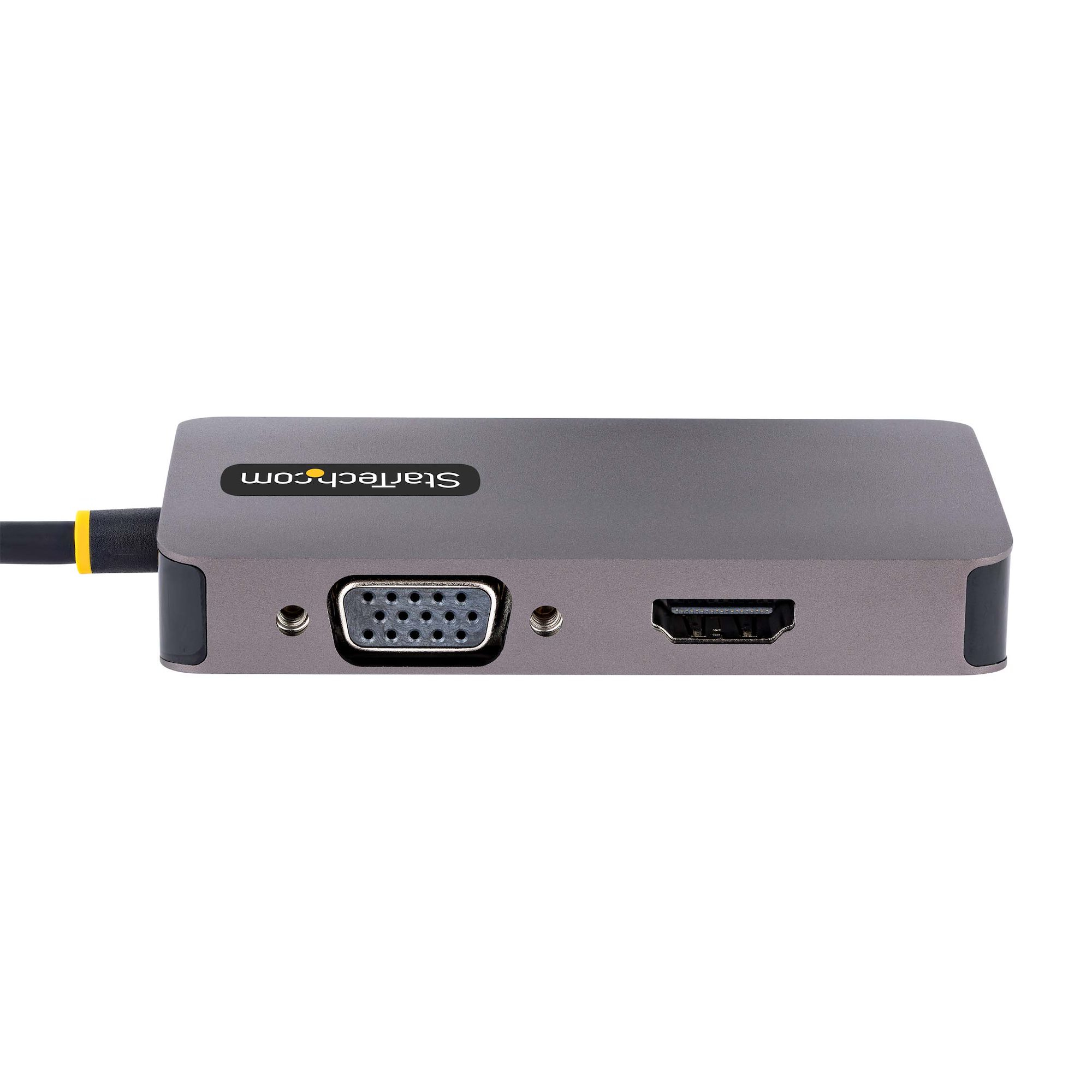

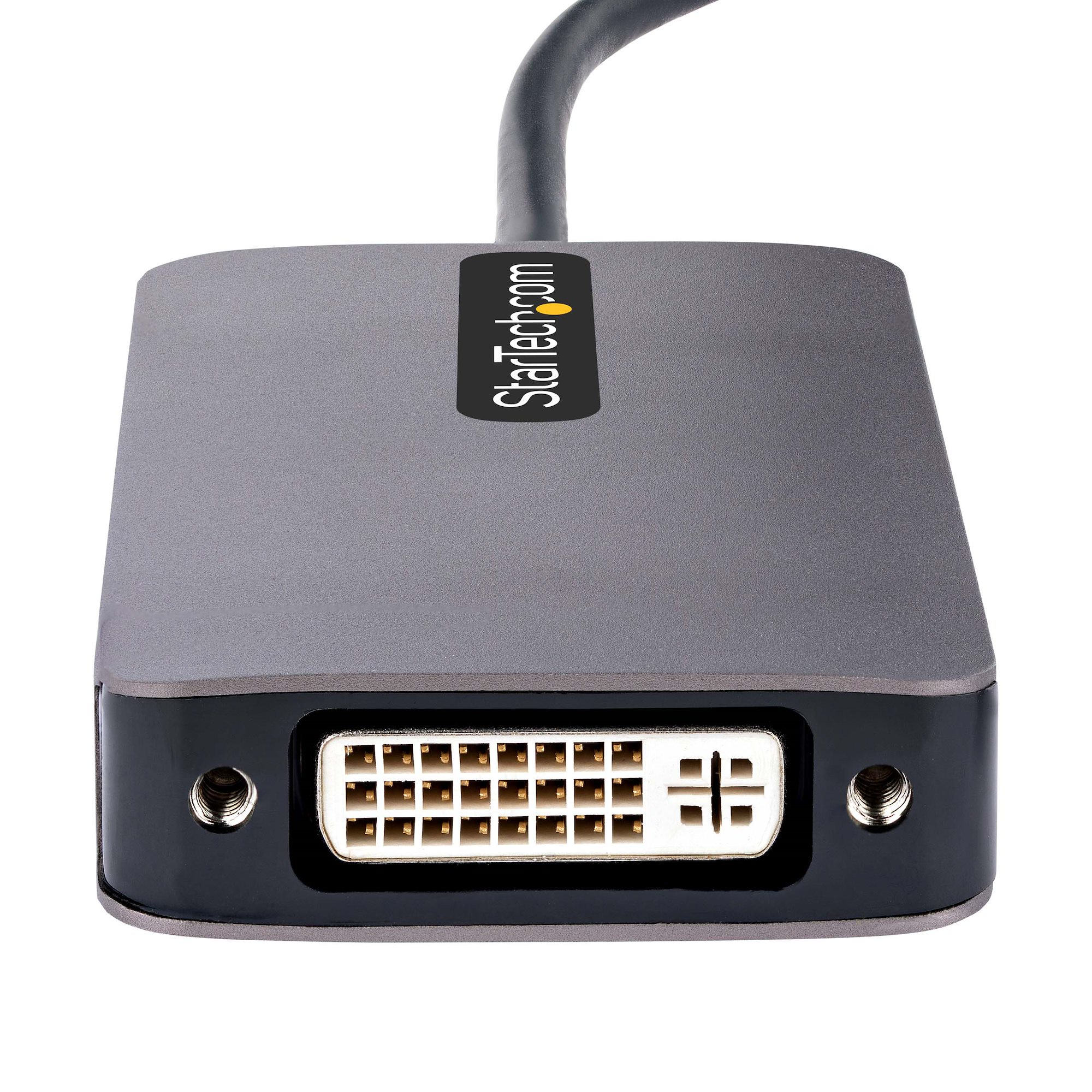

USB C Video Adapter, USB C to HDMI DVI VGA Adapter, Up to 4K
60Hz, Aluminum, Multiport Video Display Adapter, Thunderbolt 3 / 4 Compatible, USB Typ
Model 118-USBC-HDMI-VGADVIEAN 065030895583
35 specifications
- Weight73 g
- ColourGrey
- USB connector typeUSB Type-C
- Width45 mm
Overview
- Weight
- 73 g
- Colour
- Grey
- USB connector type
- USB Type-C
- Width
- 45 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- 118-USBC-HDMI-VGADVI
- Part number
- 118-USBC-HDMI-VGADVI
- EAN / UPC
- 065030895583
- Also known as
- StarTech.com USB C Video Adapter, USB C to HDMI DVI VGA Adapter, Up to 4K 60Hz, Aluminum, Multiport Video Display Adapter, Thunderbolt 3 / 4 Compatible, USB Typ
Specifications
35 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| High Dynamic Range (HDR) supported | Yes |

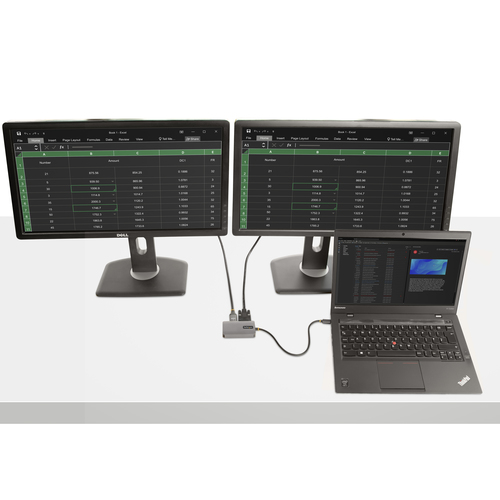

| Number of displays supported | 3 |
| DVI-I ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| VGA (D-Sub) output | Yes |
| HDMI version | 2.0b |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Audio output channels | 7.1 channels |
| Chipset | ITE - IT6224FN |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 85 mm |
| Height | 14 mm |
| Weight | 73 g |
| USB cable length | 0.3 m |
Packaging data
| Specification | Value |
|---|---|
| Package width | 173 mm |
| Package depth | 145 mm |
| Package height | 33 mm |
| Package weight | 137 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 542 mm |
| Master (outer) case length | 347 mm |
| Master (outer) case height | 327 mm |
| Harmonized System (HS) code | 84733020 |
