USB to Dual HDMI Adapter, USB A/C to 2x HDMI Displays (1x 4K30Hz
1x 1080p), 4.3in/11cm Cable, USB 3.0 to HDMI Display Adapter, Windows/macOS, Blac
Model 107B-USB-HDMI-2EAN 065030911382
39 specifications
- Memory8192 MB
- Weight66 g
- USB version3.2 Gen 1 (3.1 Gen 1)
- Mac compatibilityYes
- Width52.8 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Memory
- 8192 MB
- Weight
- 66 g
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Mac compatibility
- Yes
- Width
- 52.8 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- 107B-USB-HDMI-2
- Part number
- 107B-USB-HDMI-2
- EAN / UPC
- 065030911382
- Also known as
- StarTech.com USB to Dual HDMI Adapter, USB A/C to 2x HDMI Displays (1x 4K30Hz, 1x 1080p), 4.3in/11cm Cable, USB 3.0 to HDMI Display Adapter, Windows/macOS, Blac
Specifications
39 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Internal memory | 8192 MB |
| Internal memory type | DDR3 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 3840 x 2160, 2560 x 1400, 1920 x 1080 (HD 1080), 1600 x 900, 1280 x 720 (HD 720) |
| Audio output channels | 2.0 channels |
| Chipset | Silicon Motion - SM768 |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |

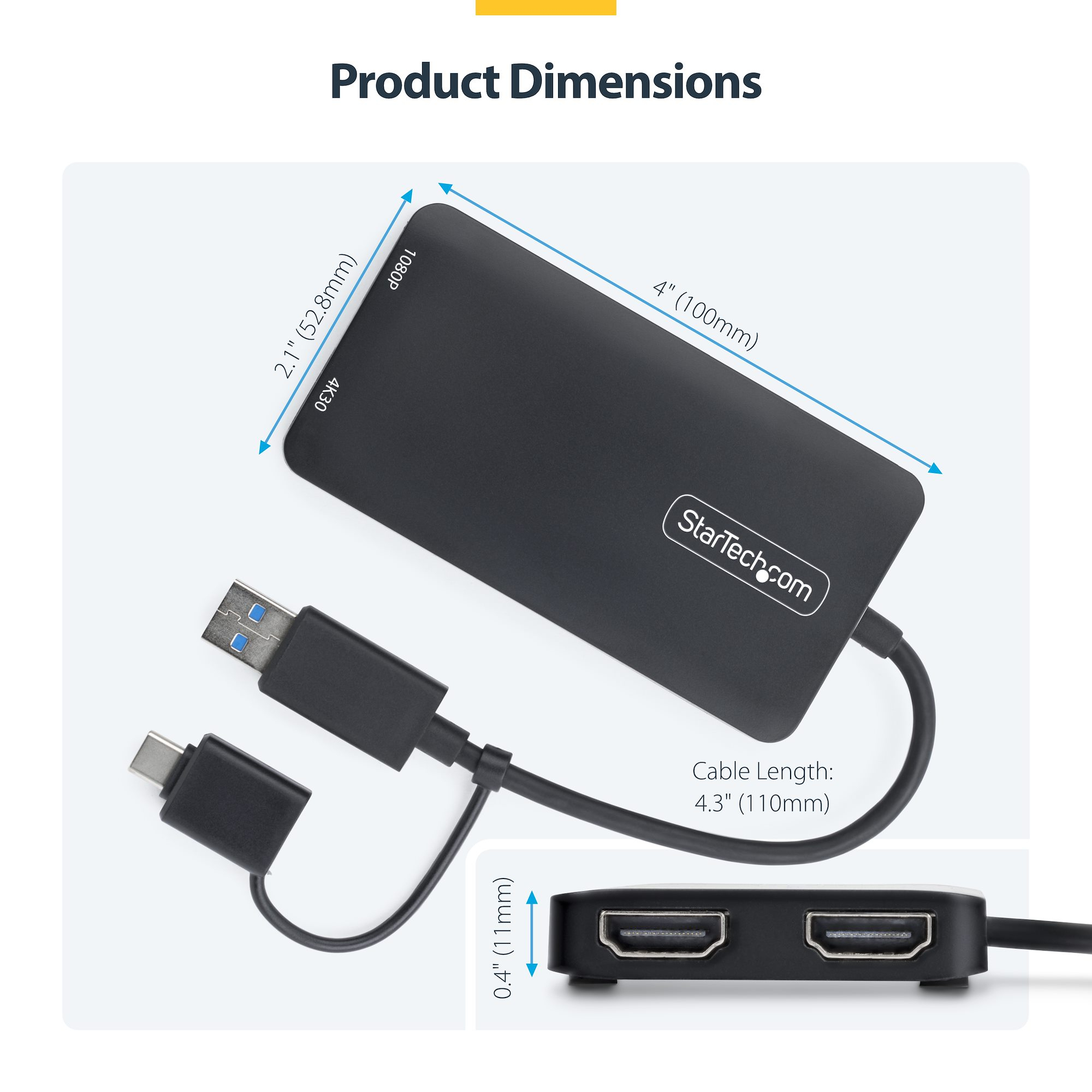

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 52.8 mm |
| Depth | 100 mm |
| Height | 11 mm |
| Weight | 66 g |
| USB cable length | 0.183 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 157 mm |
| Package depth | 126 mm |
| Package height | 19 mm |
| Package weight | 75 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 150 mm |
