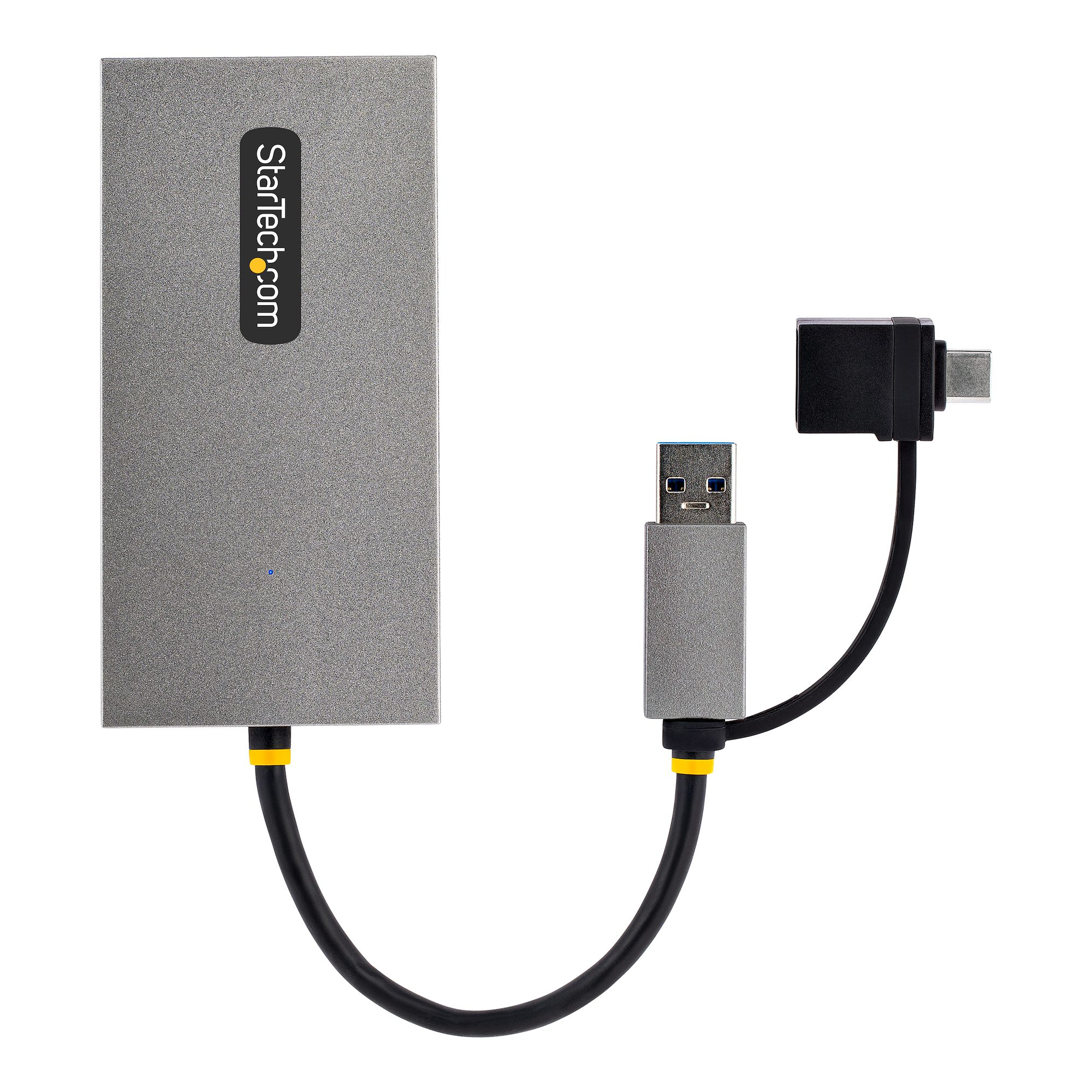

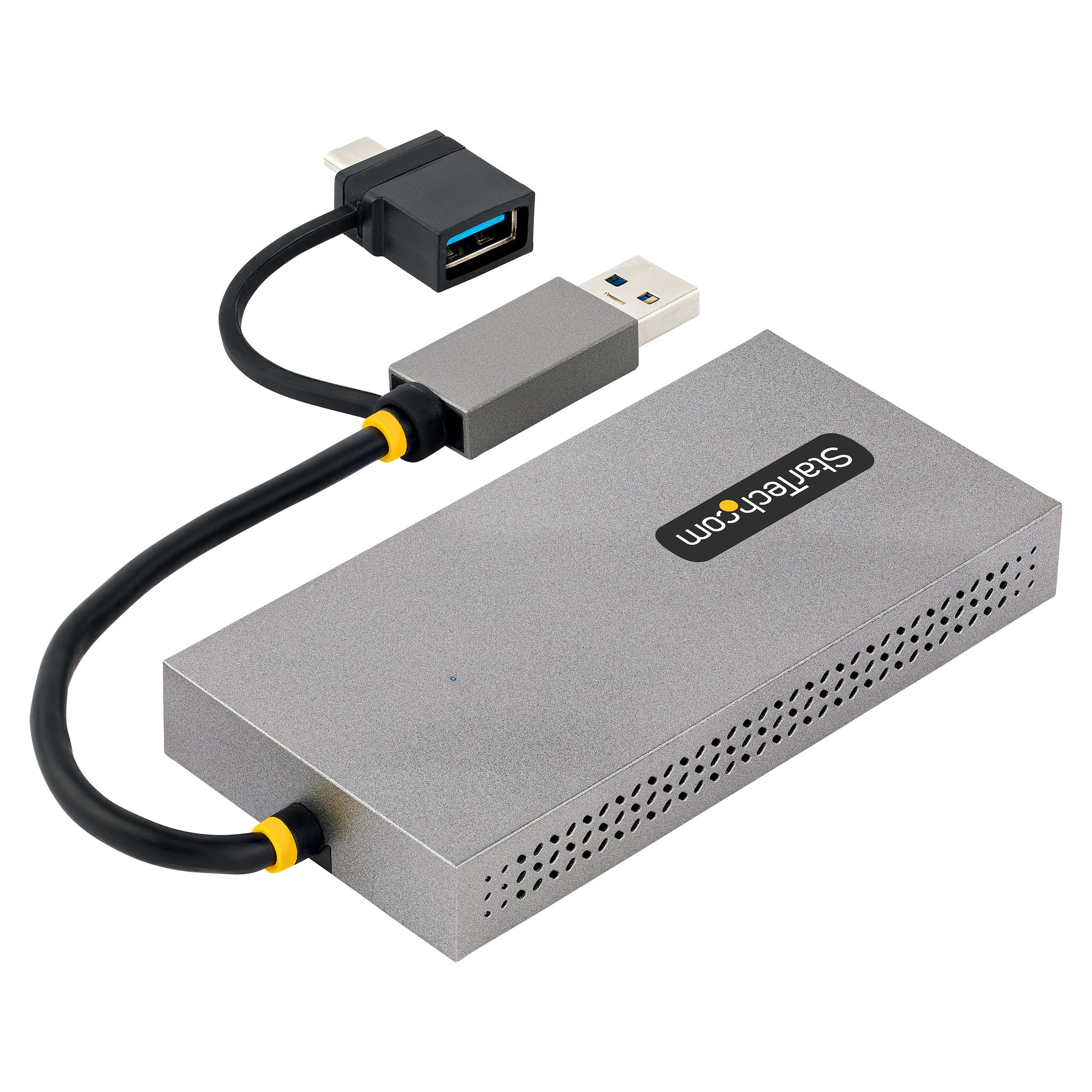

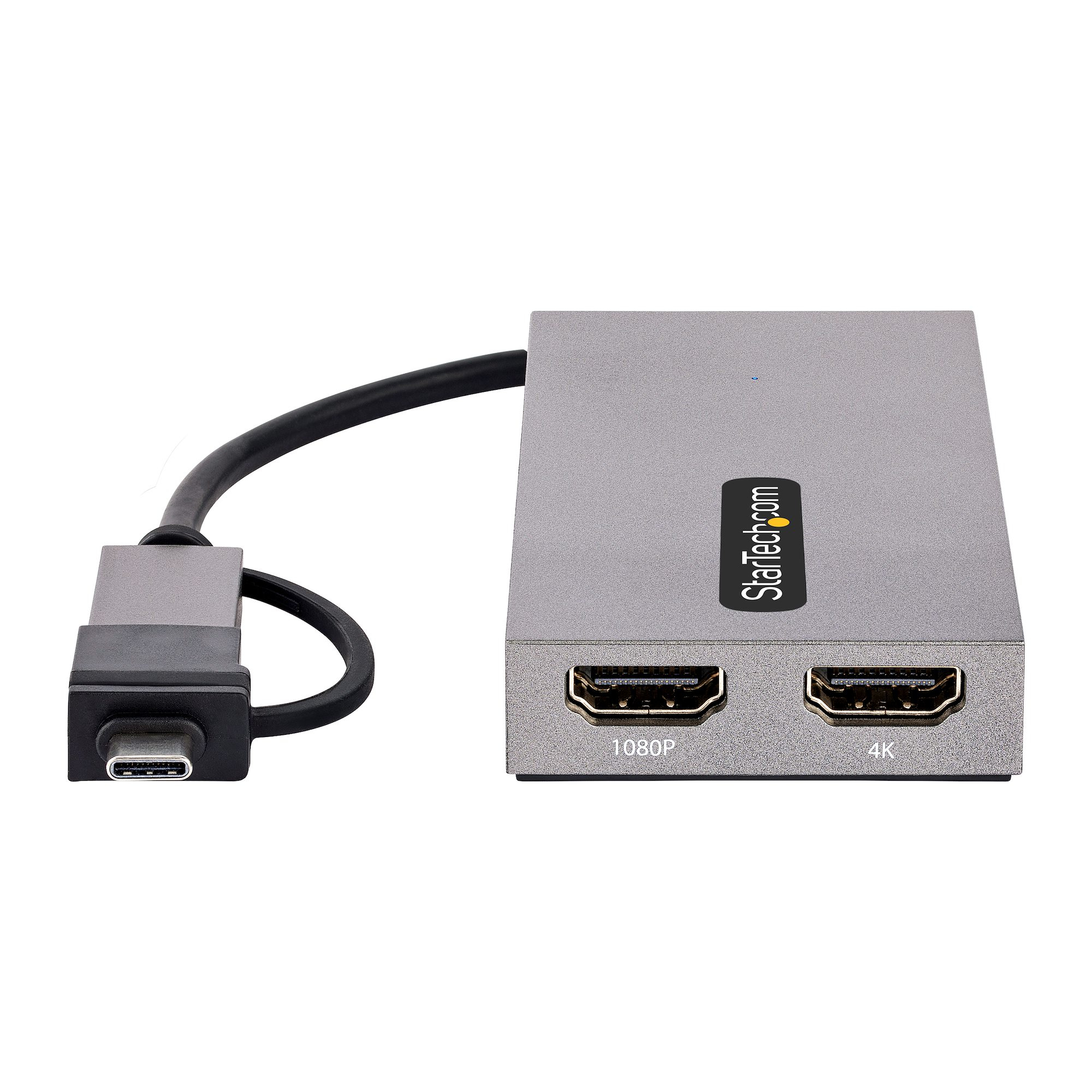

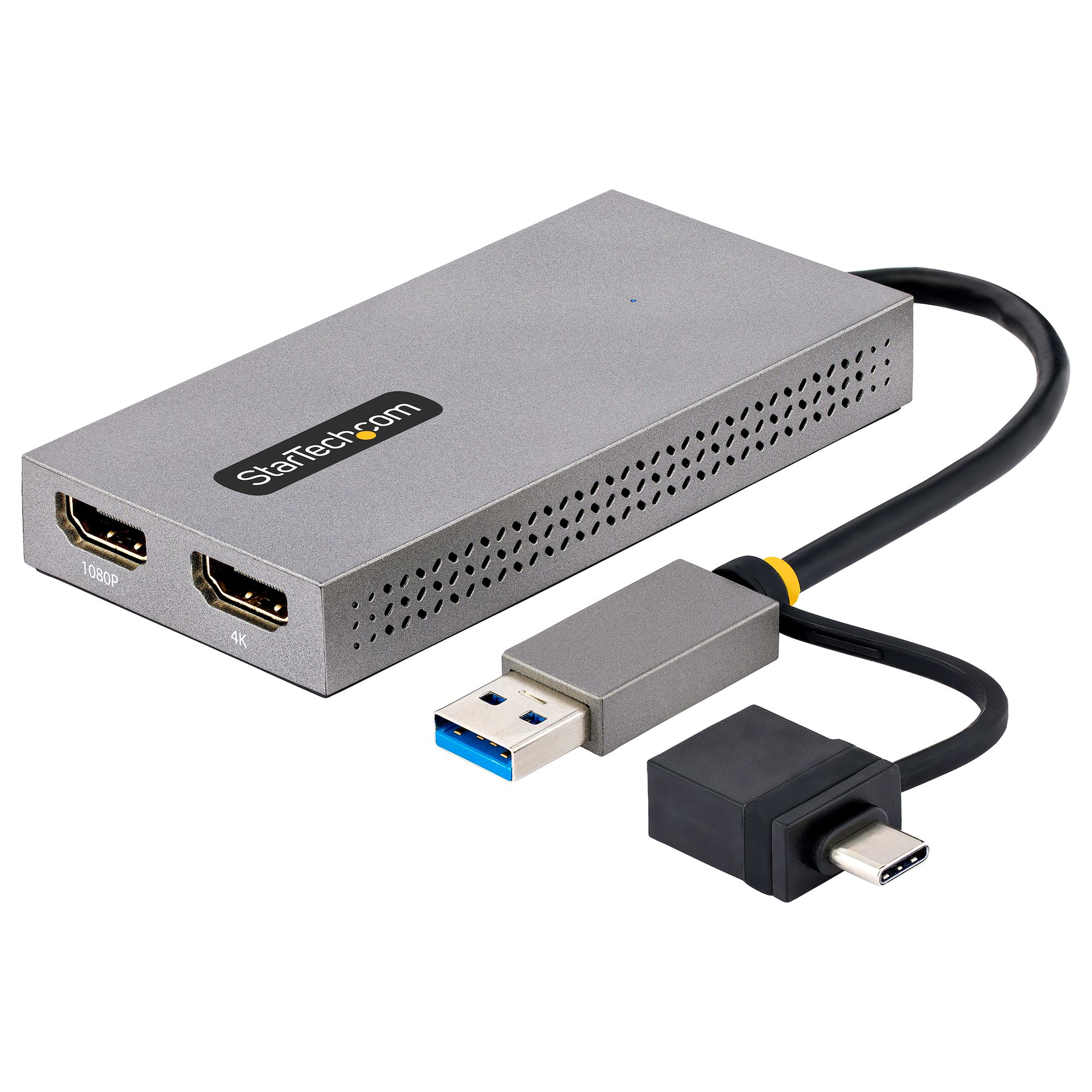

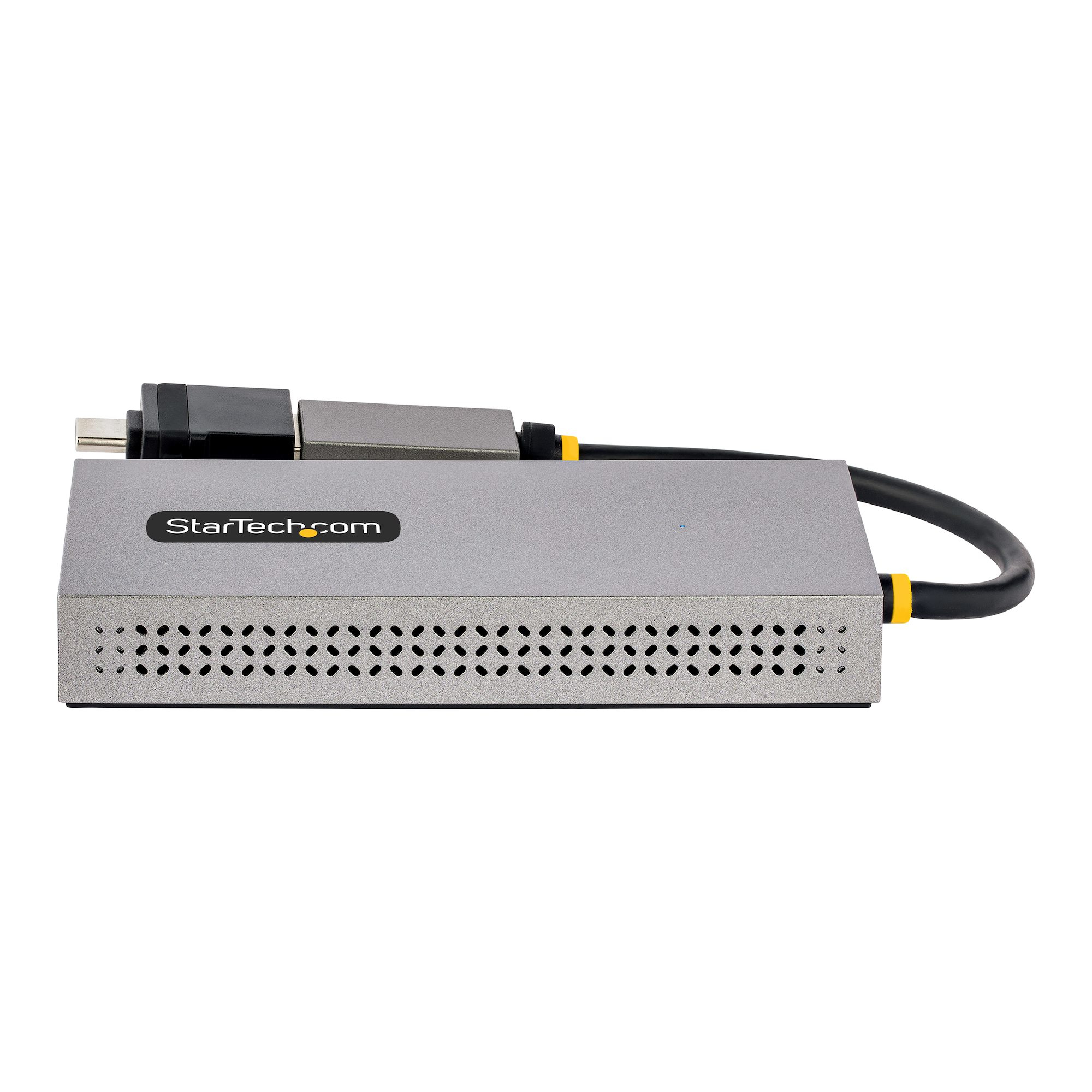

USB to Dual HDMI Adapter, USB A/C to 2x HDMI Displays (1x 4K30Hz
1x 1080p), Integrated USB-A to C Dongle, 4in/11cm Cable, USB 3.0 to HDMI Display
Model 107B-USB-HDMIEAN 065030894012
41 specifications
- Memory8192 MB
- Weight83 g
- ColourGrey
- USB connector typeUSB Type-A, USB Type-C
- Mac compatibilityYes
- Width50 mm
Overview
- Memory
- 8192 MB
- Weight
- 83 g
- Colour
- Grey
- USB connector type
- USB Type-A, USB Type-C
- Mac compatibility
- Yes
- Width
- 50 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- 107B-USB-HDMI
- Part number
- 107B-USB-HDMI
- EAN / UPC
- 065030894012
- Also known as
- StarTech.com USB to Dual HDMI Adapter, USB A/C to 2x HDMI Displays (1x 4K30Hz, 1x 1080p), Integrated USB-A to C Dongle, 4in/11cm Cable, USB 3.0 to HDMI Display
Specifications
41 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Internal memory | 8192 MB |
| Internal memory type | DDR3 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Audio output channels | 2.0 channels |
| Chipset | Silicon Motion - SM768 |
| Data transfer rate (max) | 5 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 83 g |
| USB cable length | 0.11 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 173 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 80 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 515 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case height | 319 mm |
| Harmonized System (HS) code | 84733020 |
