USB C to HDMI Adapter, Dual Monitor 4K
60Hz for Apple Mac M1/M2/M3, DisplayLink Multiple Displays for Thunderbolt Macbook or iMac, Driver
Model USBC-6950MEAN 819927013372
26 specifications
- Weight85 g
- ColourSilver
- USB version3.2 Gen 1 (3.1 Gen 1)
- Width60 mm
Overview
- Weight
- 85 g
- Colour
- Silver
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 60 mm
- Brand
- Plugable Technologies
- Category
- USB Graphics Adapter
- Model
- USBC-6950M
- Part number
- USBC-6950M
- EAN / UPC
- 819927013372
- Also known as
- Plugable Technologies USB C to HDMI Adapter, Dual Monitor 4K 60Hz for Apple Mac M1/M2/M3, DisplayLink Multiple Displays for Thunderbolt Macbook or iMac, Driver
Specifications
26 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |

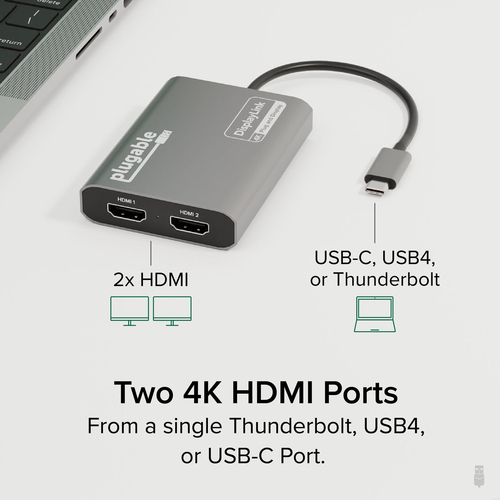

| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDCP | No |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1600 x 900, 1920 x 1080 (HD 1080), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 1600, 3840 x 2160 |
| LED indicators | Yes |
| Chipset | DisplayLink - DL-6950 |
| Data transfer rate (max) | 5 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 80 mm |
| Height | 15 mm |
| Weight | 85 g |
| USB cable length | 0.22 m |
Packaging content
| Specification | Value |
|---|---|

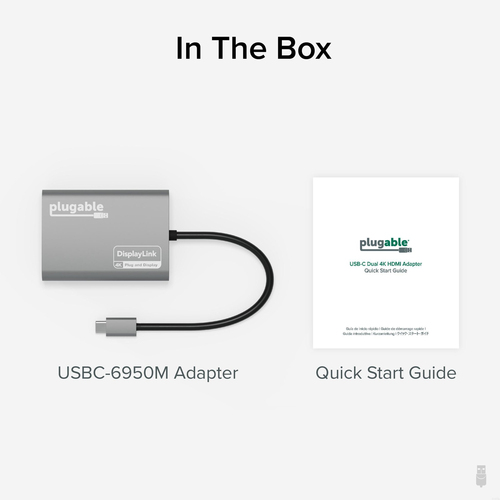

| Quick installation guide | Yes |
