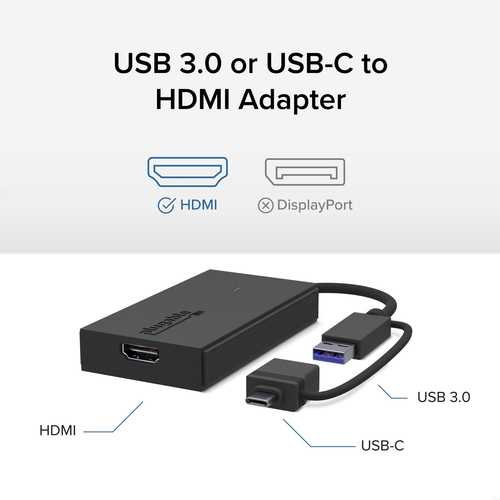

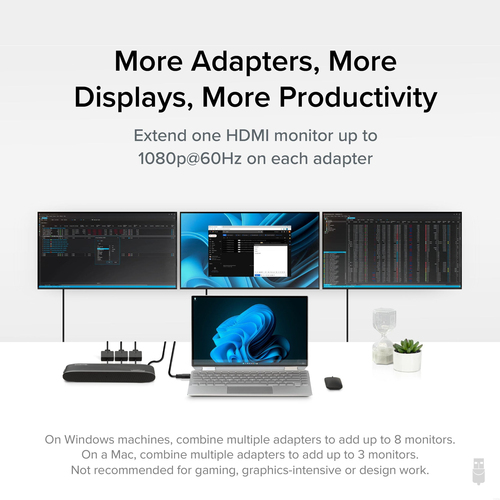

USB C to HDMI Adapter, Universal Video Graphics Adapter for USB 3.0 and USB-C Macs and Windows, Extend an HDMI Monitor up to 1080p@60Hz
Model UGA-HDMI-SEAN 819927012641
26 specifications
- Weight86 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Mac compatibilityYes
- Width100 mm
Overview
- Weight
- 86 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Mac compatibility
- Yes
- Width
- 100 mm
- Brand
- Plugable Technologies
- Category
- USB Graphics Adapter
- Model
- UGA-HDMI-S
- Part number
- UGA-HDMI-S
- EAN / UPC
- 819927012641
- Also known as
- Plugable Technologies USB C to HDMI Adapter, Universal Video Graphics Adapter for USB 3.0 and USB-C Macs and Windows, Extend an HDMI Monitor up to 1080p@60Hz
Specifications
26 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.2 |
| HDCP | No |
| Maximum resolution | 2560 x 1440 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440 |
| LED indicators | Yes |

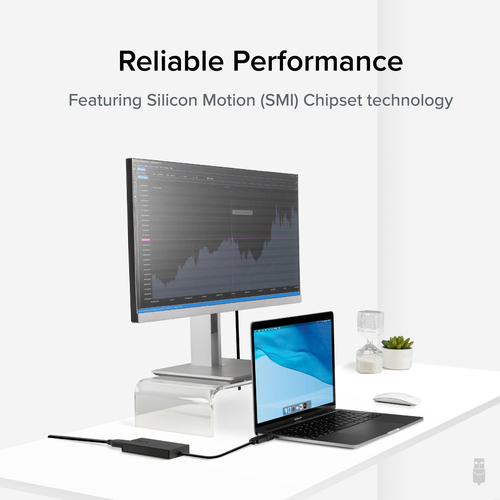

| Chipset | Silicon Motion - SM768 |
| Data transfer rate (max) | 5 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 15 mm |
| Height | 52.5 mm |
| Weight | 86 g |
Packaging content
| Specification | Value |
|---|---|

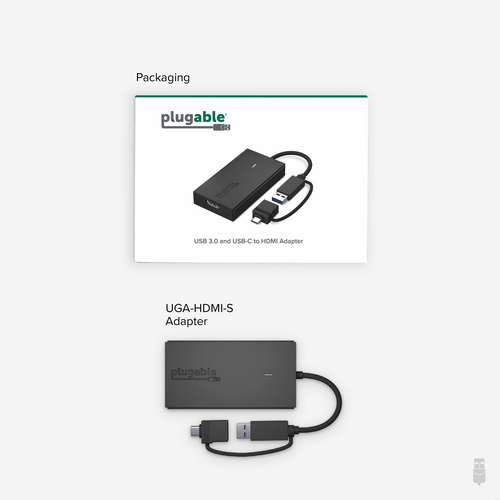

| Quick installation guide | Yes |
