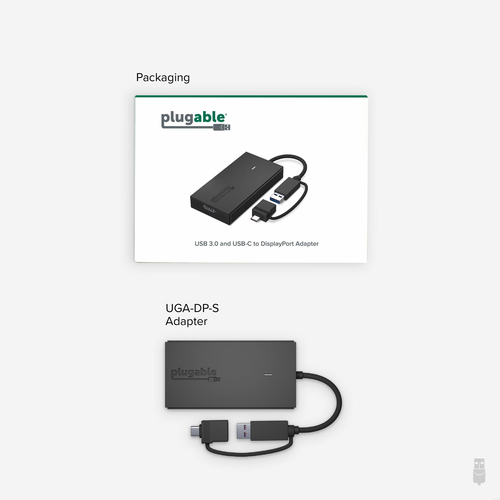

USB to DisplayPort Adapter. Connect one or more to any Mac or Windows System to add extra displays up to
1920x1080 60hz. USB C and A
Model UGA-DP-SEAN 819927012658
26 specifications
- Weight86 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Mac compatibilityYes
- Width100 mm
Overview
- Weight
- 86 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Mac compatibility
- Yes
- Width
- 100 mm
- Brand
- Plugable Technologies
- Category
- USB Graphics Adapter
- Model
- UGA-DP-S
- Part number
- UGA-DP-S
- EAN / UPC
- 819927012658
- Also known as
- Plugable Technologies USB to DisplayPort Adapter. Connect one or more to any Mac or Windows System to add extra displays up to 1920x1080 60hz. USB C and A
Specifications
26 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |

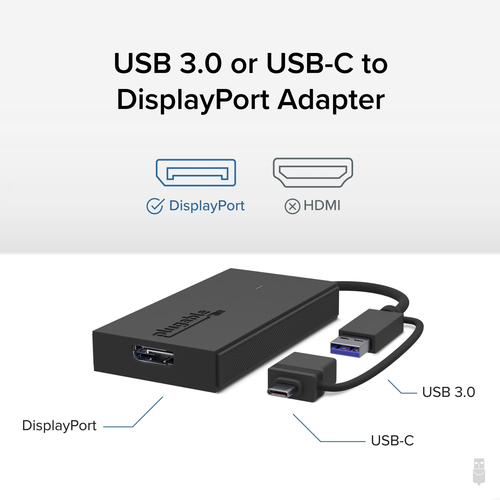

| USB connector type | USB Type-A, USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| DisplayPorts quantity | 1 |
| Number of displays supported | 1 |
| HDCP | No |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1080 pixels |
| Refresh rate at maximum resolution | 69 Hz |
| Supported graphics resolutions | 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| LED indicators | Yes |
| Chipset | Silicon Motion - SM768 |
| Data transfer rate (max) | 5 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 15 mm |
| Height | 52.5 mm |
| Weight | 86 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
