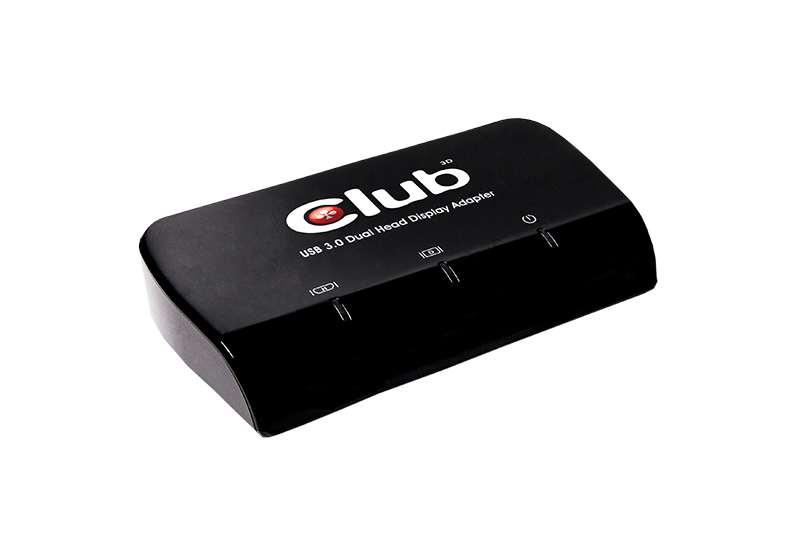

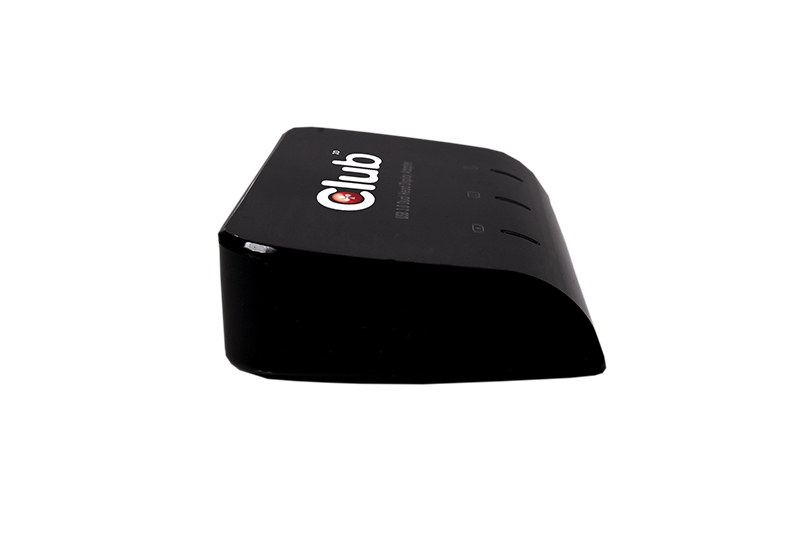

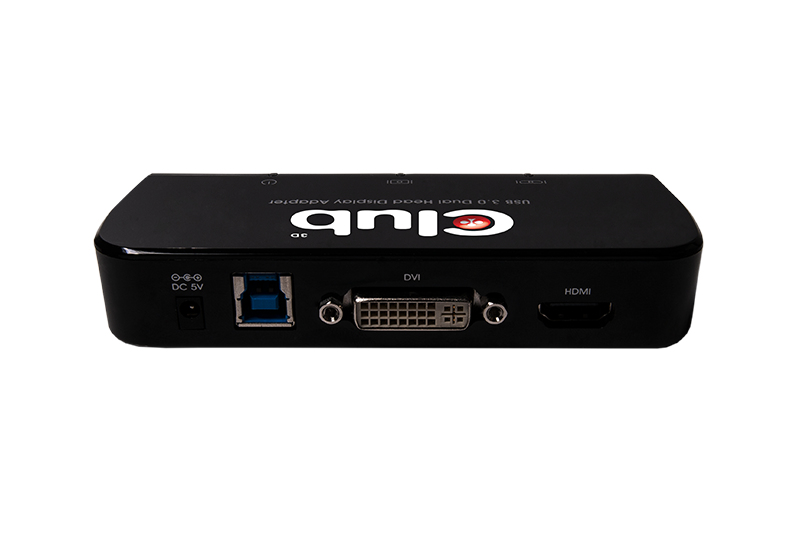

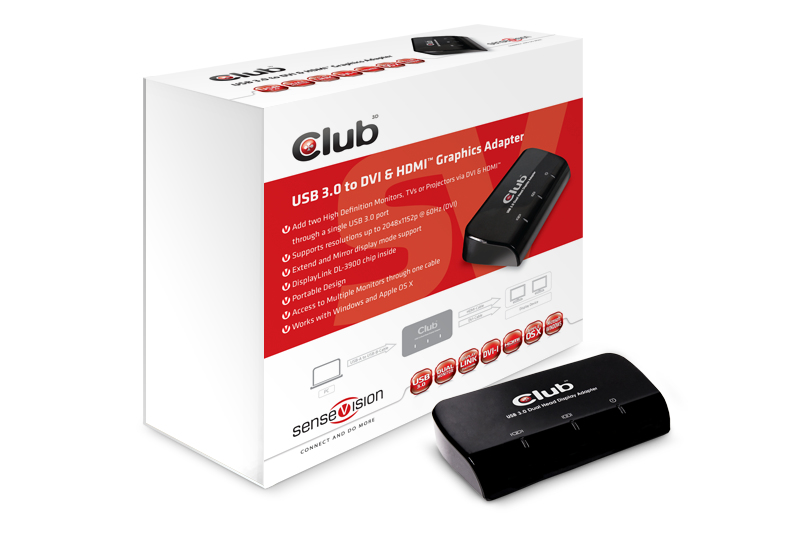

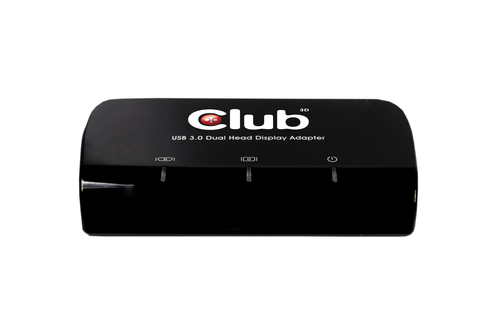

CLUB3D SenseVision USB3.0 to DVI-I & HDMI Graphics Adapter
Model SenseVision USB3.0 to DVI-I & HDMI Graphics AdapterPart no. CSV-2320HDEAN 854365005909
34 specifications
- Weight110 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Width126 mm
- Compliance certificatesRoHS
Overview
- Weight
- 110 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 126 mm
- Compliance certificates
- RoHS
- Brand
- CLUB3D
- Category
- USB Graphics Adapter
- Model
- SenseVision USB3.0 to DVI-I & HDMI Graphics Adapter
- Part number
- CSV-2320HD
- EAN / UPC
- 854365005909, 8717249401001
- Also known as
- CLUB3D SenseVision USB3.0 to DVI-I & HDMI Graphics Adapter USB graphics adapter Black
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| DVI connector type | DVI-I |
| HDMI version | 1.2 |
| HDCP | Yes |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (DVI) | 2048 x 1152 pixels |
| Maximum resolution (HDMI) | 1920 x 1080 pixels |
| Output colour depth | 16/32 bit |
| Mirror display mode | Yes |
| Extended display mode | Yes |
| Chipset | DL 3900 |
| Current | 0.46 A |
| DC input voltage | 5 V |
| Certification | CE, RoHS, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Integrated USB cable | No |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126 mm |
| Depth | 64 mm |
| Height | 30 mm |
| Weight | 110 g |
| USB cable length | 0.06 m |
Packaging data
| Specification | Value |
|---|---|
| Package type | Blister |
| Package width | 210 mm |
| Package depth | 26 mm |
| Package height | 160 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Drivers included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
