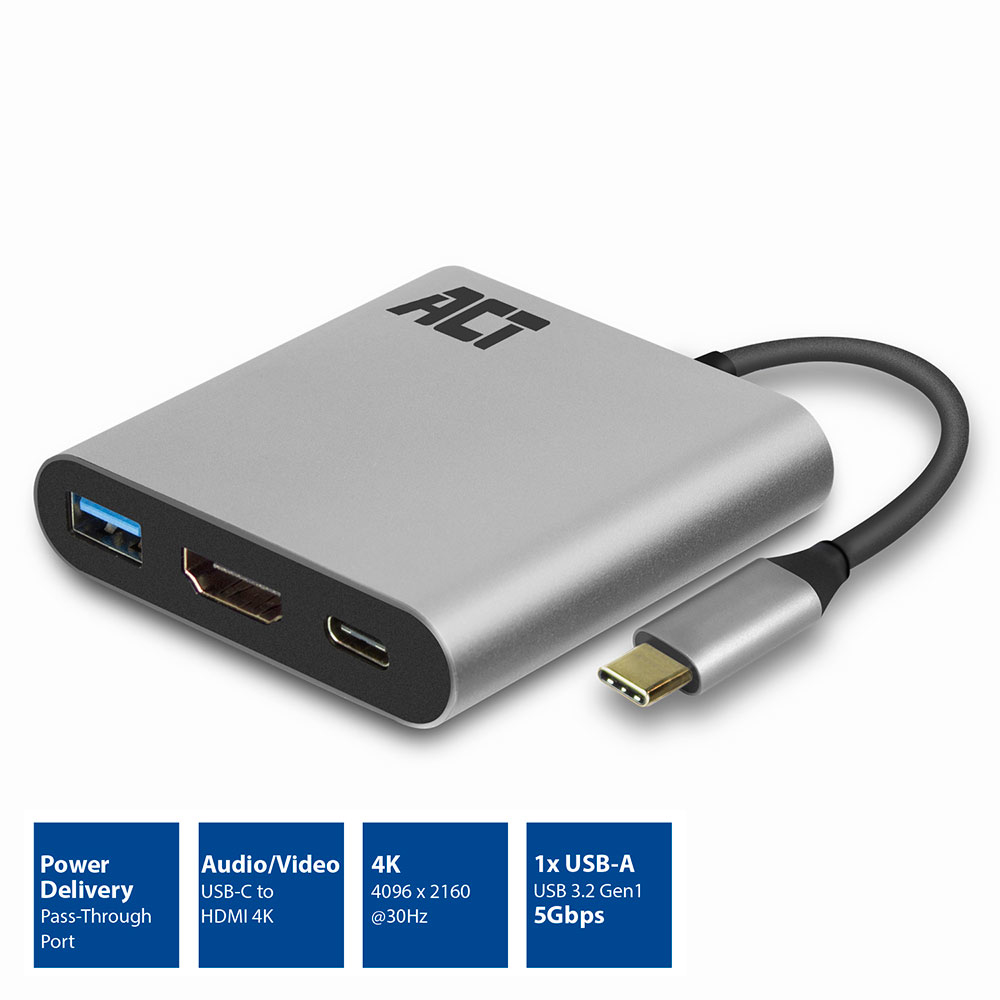

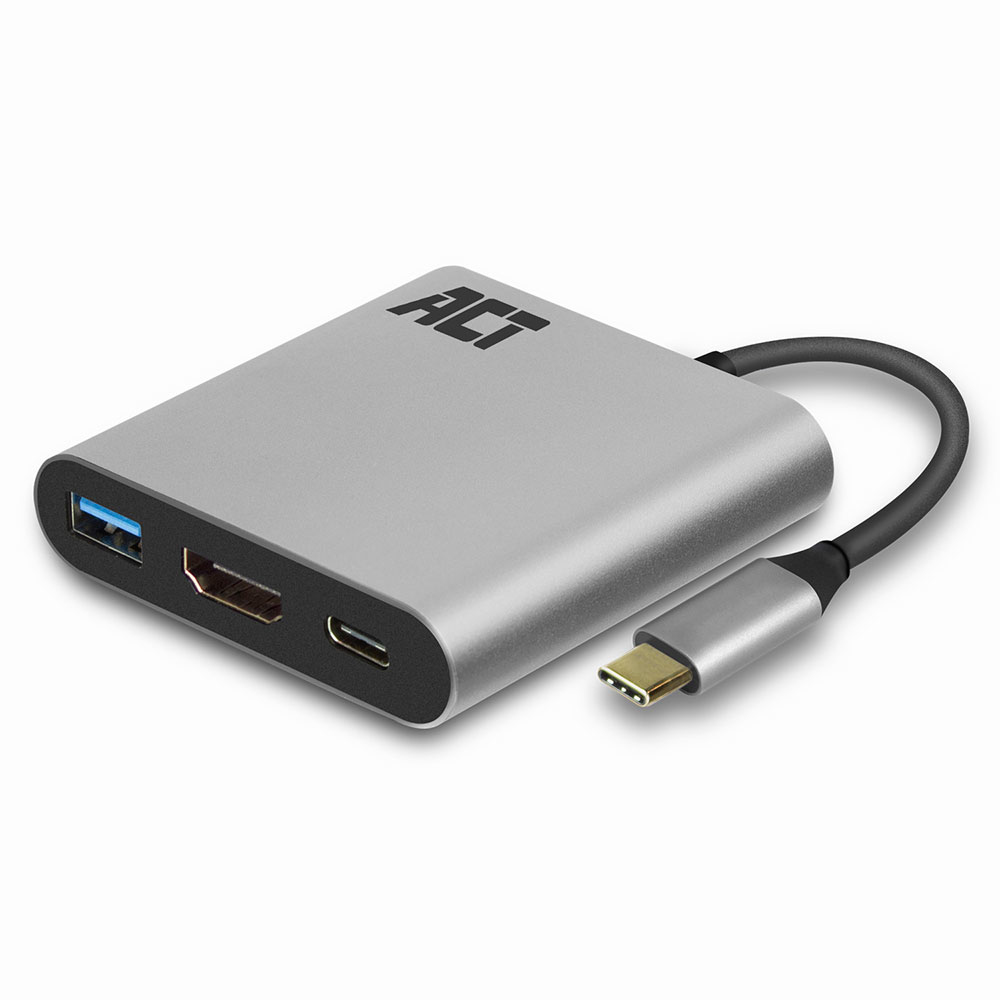

USB-C multiport adapter for 1 HDMI monitor, 1x USB-A, PD pass-through
Model AC7022EAN 8716065437492
19 specifications
- Weight89 g
- ColourGrey
- USB version3.2 Gen 1 (3.1 Gen 1)
- Width125 mm
Overview
- Weight
- 89 g
- Colour
- Grey
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 125 mm
- Brand
- ACT
- Category
- USB Graphics Adapter
- Model
- AC7022
- Part number
- AC7022
- EAN / UPC
- 8716065437492
- Also known as
- ACT USB-C multiport adapter for 1 HDMI monitor, 1x USB-A, PD pass-through
Specifications
19 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Aluminium |
| Integrated USB cable | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 12.0V (2.58A), 15.0V (2.67A), 20.0V (2.75A), 5.0V (2.0A), 9.0V (2.44A) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 160 mm |
| Height | 25 mm |
| Weight | 89 g |
| USB cable length | 0.12 m |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
