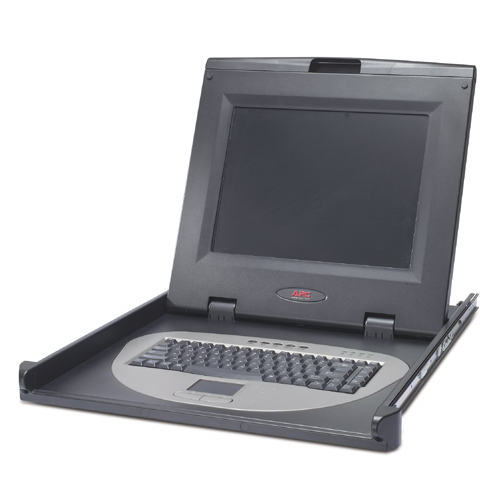

15" Rack LCD Monitor Keyboard Mouse
Model 15" Rack LCD Monitor Keyboard MousePart no. AP5015UKEAN 4054842392898
18 specifications
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- Type1U
- Weight14.3 kg
- Built-in touchpadYes
- Power supply type90-264 V 50/60 Hz
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Type
- 1U
- Weight
- 14.3 kg
- Built-in touchpad
- Yes
- Power supply type
- 90-264 V 50/60 Hz
- Brand
- APC
- Category
- Rack Console
- Model
- 15" Rack LCD Monitor Keyboard Mouse
- Part numbers
- AP5015UK, AP5015
- EAN / UPC
- 4054842392898, 731304220916, 731304220961, 7313042209168
- Also known as
- APC 15" Rack LCD Monitor Keyboard Mouse rack console 38.1 cm (15") 1024 x 768 pixels
Specifications
18 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display | LCD |
| Contrast ratio (typical) | 300:1 |
| Display brightness | 200 cd/m² |
| Display number of colours | 16.78 million colours |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
Technical details
| Specification | Value |
|---|---|
| Form factor | 1U |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | 90-264 V 50/60 Hz |
| AC adapter input voltage | 100V,120V,200V,208V,230V |
| AC adapter frequency | 50 - 60 Hz |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 476 x 556 x 44 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL Listed,CCC,CE,CSA,CSA C22.2 No. 60960,EN 55022 Class A,EN 55024,EN 60950,EN 61000-3-2,EN 61000-3-3,FCC Part 15 Class A,GOST,ICES-003,IEC 60950,IRAM,UL 60950-1,UL Listed,VCCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 14.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 19.3 kg |
| Package dimensions (WxDxH) | 603 x 826 x 241 mm |
