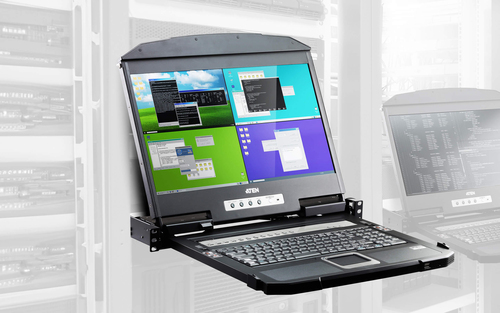

ATEN CL3884NW rack console: Full Specifications

Overview

Display: 47 cm (18.5")
Resolution: 1920 x 1080 pixels
Weight: 1.12 kg
Colour: Black
Rack capacity: 1U
3.5 mm (1/8-inch) out: Yes

Brand: ATEN
Category: Rack Console
Model: CL3884NW
Part numbers: CL3884NWATAXGCH, CL3884NWATAXGDE, CL3884NWATAXGES, CL3884NWATAXGFR, CL3884NWATAXGIT, CL3884NWATAXGNR +8 more
EAN / UPC: 4710469345821, 4710469343308, 4710469344190, 4710469343766 +1 more
Also known as: ATEN CL3884NW rack console 47 cm (18.5") 1920 x 1080 pixels Metal Black 1U

Specifications

60 specifications in 9 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1920 x 1080 pixels
Display	LCD
Contrast ratio (typical)	1000:1
Display brightness	350 cd/m²
Display type	TFT
On Screen Display (OSD)	Yes
Pixel pitch	0.213 x 0.213 mm
Response time	20 ms
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Supported resolutions	1920 x 1200 @ 60 Hz

Technical details

Specification	Value
Rack capacity	1U
Material	Metal
Auto scan delay (max)	90 s
Auto scan delay (min)	5 s
Built-in KVM switch	Yes
Compliance certificates	RoHS
Hot-Plug support	Yes
LED indicators	Yes
Maximum resolution	1920 x 1200 pixels
Number of computers controlled	4
On/off switch	Yes
Operating relative humidity (H-H)	0 - 80%
Plug and Play	Yes
Product colour	Black
Push button	Yes
Rack mounting	Yes

Ports & interfaces

Specification	Value
3.5 mm (1/8-inch) out	Yes
3.5 mm (1/8-inch) in	Yes
Keyboard port type	USB
Mouse port type	USB
RJ-45 ports quantity	1
Video port type	HDMI
USB 2.0 Type-A ports quantity	3
USB 2.0 Type-B ports quantity	4
I/O ports	5x HDMI

Keyboard

Specification	Value
Built-in touchpad	Yes
Hot keys	Yes
Keyboard language	German
Keyboard layout	QWERTZ

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	SunOS

Power

Specification	Value
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	631 mm
Height	42.8 mm
Depth	480.6 mm
Weight	1.12 kg

Packaging content

Specification	Value
Cables included	AC, KVM
Quick installation guide	Yes
Manual	Yes
Rack mount kit	Yes
Package type	Box
