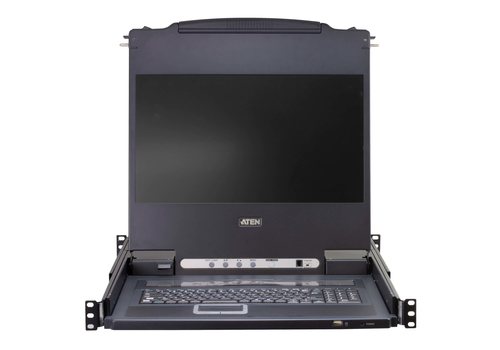

CL5708MW rack console
43.9 cm (17.3") 1920 x 1080 pixels Metal, Plastic Black 1U
Model CL5708MWPart no. CL5708MW-ATA-DNGEAN 4710469343667
64 specifications
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- Weight13.4 kg
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity8
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Weight
- 13.4 kg
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 8
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL5708MW
- Part numbers
- CL5708MW-ATA-DNG, CL5708MW-ATA-SG, CL5708MW-ATA-ITG, CL5708MW-ATA-GG, CL5708MW-ATA-FG, CL5708MW-ATA-EG +2 more
- EAN / UPC
- 4710469343667, 4710469343209, 4710469343216, 4710469342462 +5 more
- Also known as
- ATEN CL5708MW rack console 43.9 cm (17.3") 1920 x 1080 pixels Metal, Plastic Black 1U
Specifications
64 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Display | LCD |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 250 cd/m² |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Response time | 16 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Supported resolutions | 1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Auto scan delay (max) | 255 s |
| Auto scan delay (min) | 1 s |
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Console port | SPHD-18 |
| Daisy chain | Yes |
| Hot-Plug support | Yes |
| KVM switch ports quantity | 8 |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 256 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 85% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
| Country of origin | China |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | Spanish |
| Keyboard layout | QWERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15.4 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 689.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 13.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17.1 kg |
| Package width | 668 mm |
| Package depth | 833 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 668 mm |
| Master (outer) case length | 833 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 17.1 kg |
