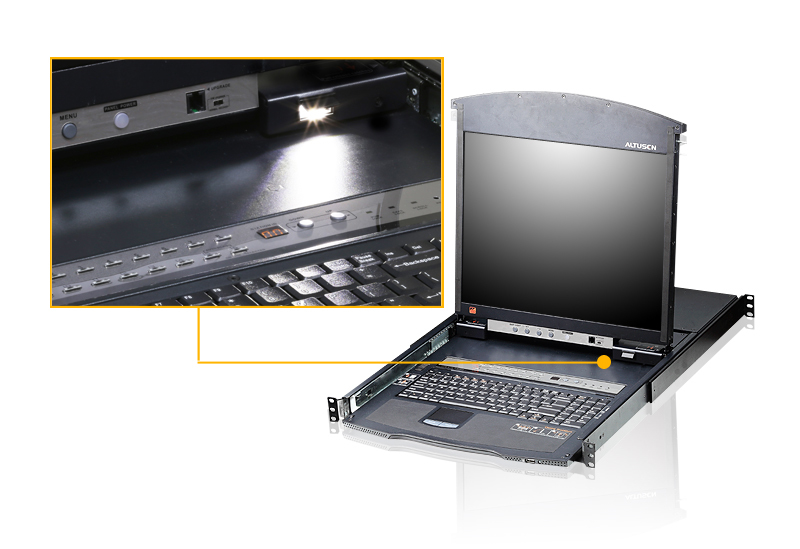

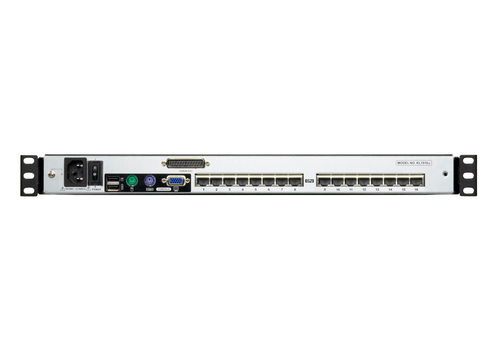

ATEN KL1516AN rack console
ATEN

KL1516AN rack console

48.3 cm (19") 1280 x 1024 pixels Metal Black 1U

Model KL1516ANPart no. KL1516ANAXAXGCHEAN 4710469344619

58 specifications
  • Display48.3 cm (19")
  • Resolution1280 x 1024 pixels
  • Weight15.4 kg
  • ColourBlack
  • Rack capacity1U
  • VGA (D-Sub) ports quantity1
See all specifications

Overview

Display
48.3 cm (19")
Resolution
1280 x 1024 pixels
Weight
15.4 kg
Colour
Black
Rack capacity
1U
VGA (D-Sub) ports quantity
1
Brand
ATEN
Category
Rack Console
Model
KL1516AN
Part numbers
KL1516ANAXAXGCH, KL1516ANAXAXGDE, KL1516ANAXAXGES, KL1516ANAXAXGFR, KL1516ANAXAXGIT, KL1516ANAXAXGRU +11 more
EAN / UPC
4710469344619, 4710469344114, 4710469343636, 4710469345326 +4 more
Also known as
ATEN KL1516AN rack console 48.3 cm (19") 1280 x 1024 pixels Metal Black 1U

Specifications

58 specifications in 9 groups

Display

Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
DisplayLCD
Contrast ratio (typical)1000:1
Display brightness250 cd/m²
Display number of colours16.7 million colours
Display typeTFT
On Screen Display (OSD)Yes
Pixel pitch0.294 x 0.294 mm
Response time5 ms
Viewing angle, horizontal170°
Viewing angle, vertical160°
Supported resolutions1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version)

Technical details

Rack capacity1U
MaterialMetal
Auto scan delay (max)255 s
Auto scan delay (min)1 s
Built-in KVM switchYes
Compliance certificatesRoHS
Console portVGA/USB/PS2
Daisy chainYes
KVM switch ports quantity8
LED indicatorsYes
Maximum resolution1920 x 1200 pixels
Number of computers controlled256
On/off switchYes
Operating relative humidity (H-H)0 - 80%
Product colourBlack
Push buttonYes
Rack mountingYes

Ports & interfaces

VGA (D-Sub) ports quantity1
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
RJ-45 ports quantity18
Video port typeVGA
USB 2.0 Type-A ports quantity3
I/O ports1x DB-25 1x RJ-11

Keyboard

Built-in touchpadYes
Hot keysYes
Keyboard languageItalian
Keyboard layoutQWERTY

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes

Power

AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz
Input current1 A
AC (power) inYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width701.2 mm
Height44 mm
Depth480 mm
Weight15.4 kg

Packaging content

Cables includedAC, KVM
Quick installation guideYes
ManualYes
Rack mount kitYes
