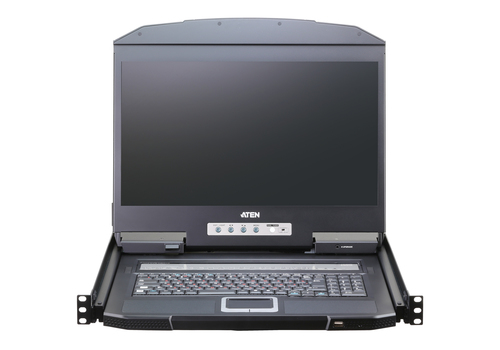

ATEN CL3116NX rack console: Full Specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Weight: 10.6 kg
Colour: Black
Rack capacity: 1U
3.5 mm (1/8-inch) in: Yes

Brand: ATEN
Category: Rack Console
Model: CL3116NX
Part numbers: CL3116NX-ATA-EE, CL3116NXATAXGDE, CL3116NXATAXGCH, CL3116NXATAXGES, CL3116NXATAXGFR, CL3116NXATAXGIT +12 more
EAN / UPC: 4710469344954, 4710469344350, 4710469343735, 4710469345067 +4 more
Also known as: ATEN CL3116NX rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U

Specifications

57 specifications in 9 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Display	LCD
Contrast ratio (typical)	1000:1
Display brightness	450 cd/m²
Display type	TFT
On Screen Display (OSD)	Yes
Pixel pitch	0.3 x 0.3 mm
Response time	5 ms
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Supported resolutions	up to 1920 x 1200 @ 60 Hz; 1366 x 768 @ 60 Hz, DDC2B

Technical details

Specification	Value
Rack capacity	1U
Material	Metal, Plastic
Built-in KVM switch	Yes
Compliance certificates	RoHS
Hot-Plug support	Yes
KVM switch ports quantity	16
LED indicators	Yes
Maximum resolution	1920 x 1200 pixels
Number of computers controlled	256
On/off switch	Yes
Operating relative humidity (H-H)	0 - 80%
Product colour	Black
Push button	Yes
Rack mounting	Yes

Ports & interfaces

Specification	Value
3.5 mm (1/8-inch) in	Yes
VGA (D-Sub) ports quantity	1
Keyboard port type	USB
Mouse port type	USB, PS/2
Video port type	VGA
USB 2.0 Type-A ports quantity	1

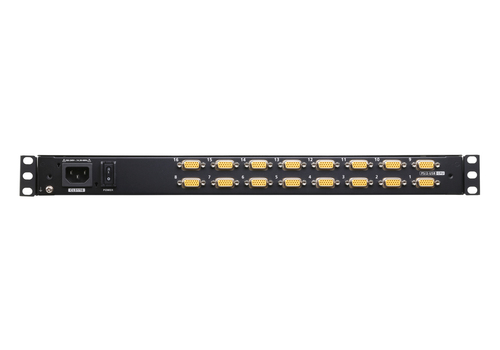

I/O ports	16x SPHD

Keyboard

Specification	Value
Built-in touchpad	Yes
Hot keys	Yes
Keyboard language	German
Keyboard layout	QWERTZ

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	SunOS

Power

Specification	Value
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	631 mm
Height	42.8 mm
Depth	480.6 mm
Weight	10.6 kg

Packaging content

Specification	Value
Cables included	AC, KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Rack mount kit	Yes
Package type	Box
