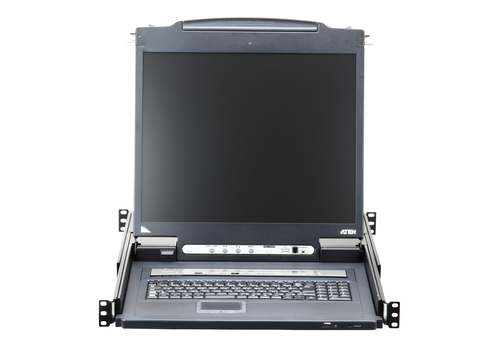

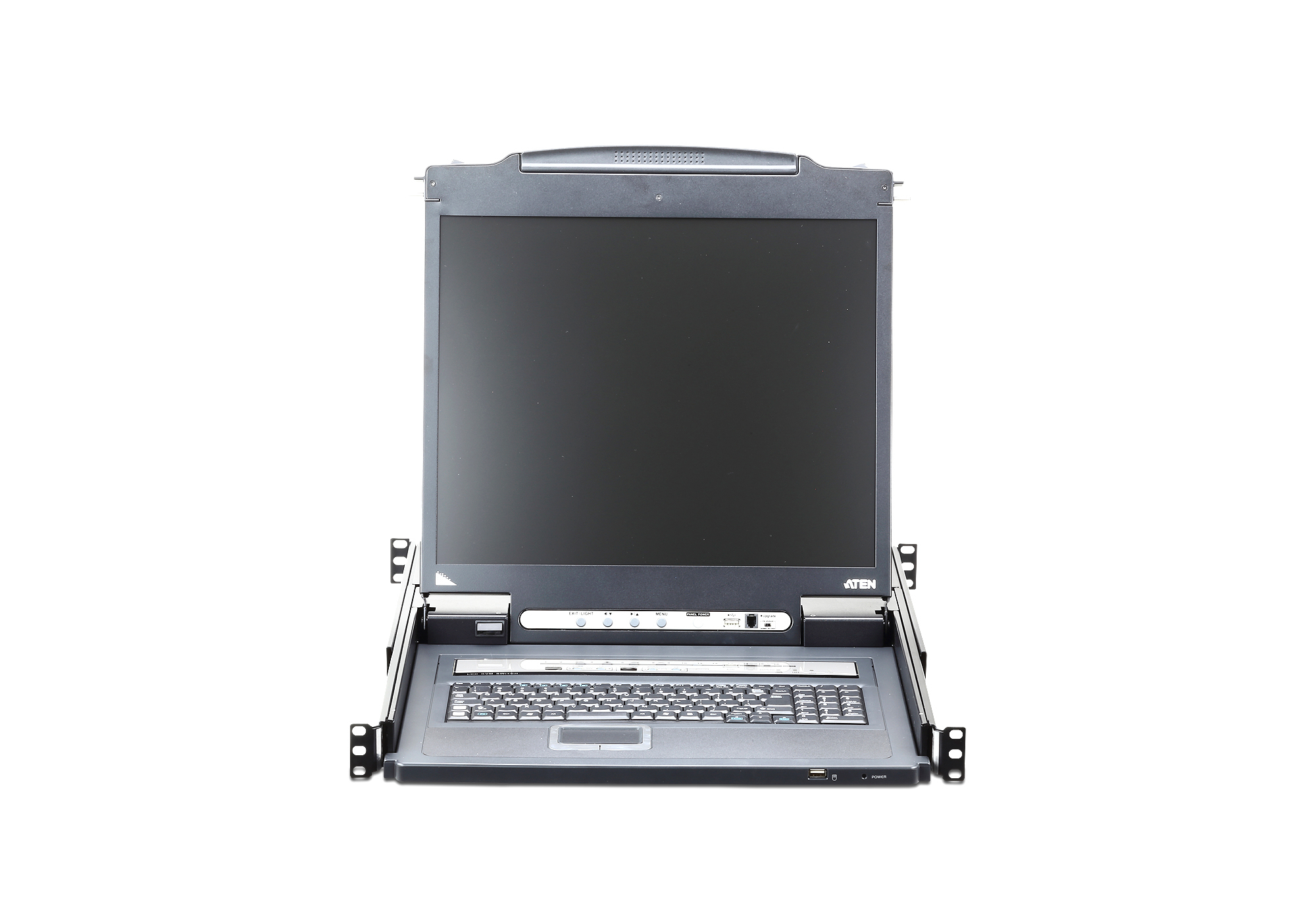

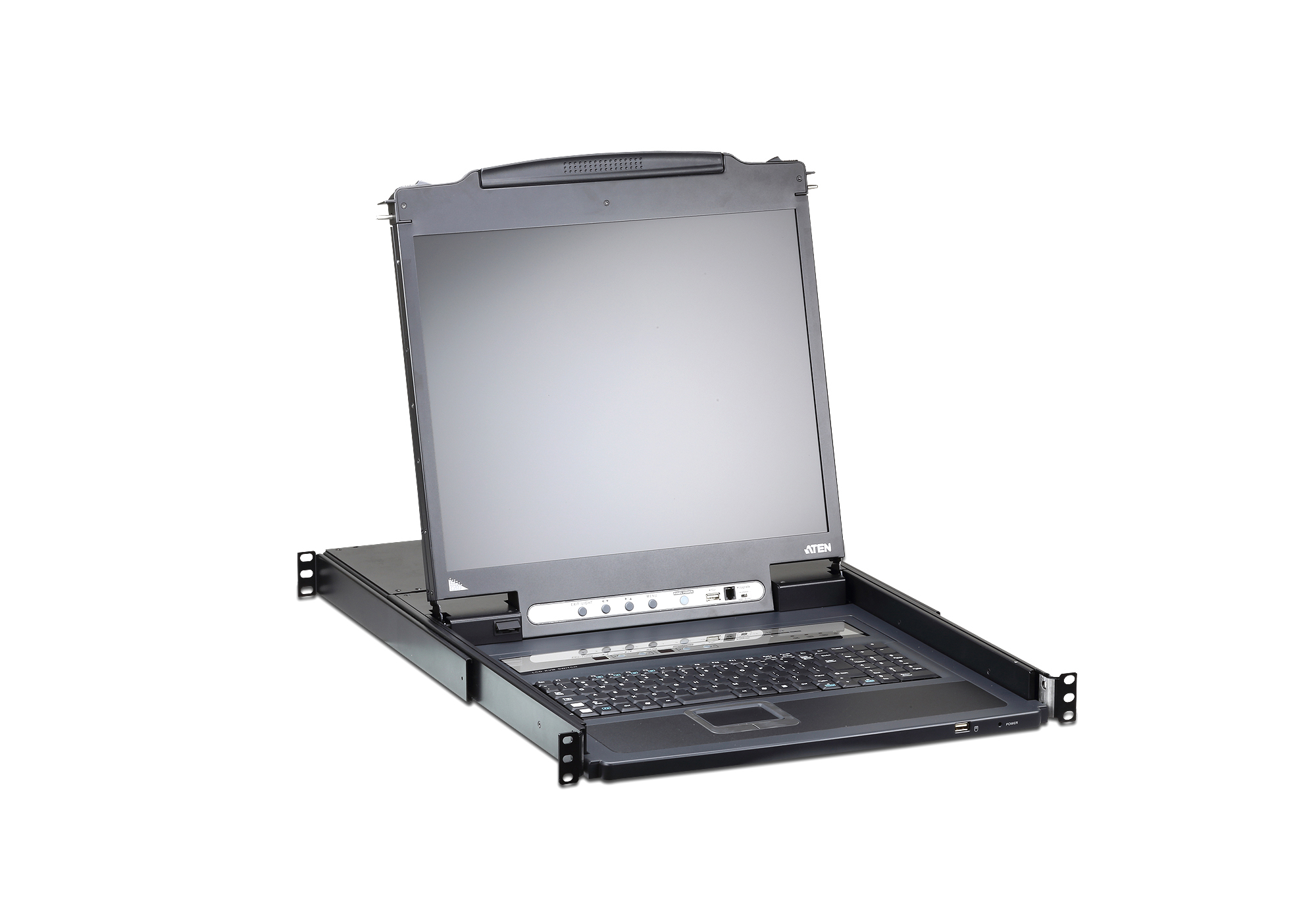

CL5716IN rack console
48.3 cm (19") 1280 x 1024 pixels Metal, Plastic Black 1U
Model CL5716INPart no. CL5716INATAXGDEEAN 5711783911395
57 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Weight13.7 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Weight
- 13.7 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL5716IN
- Part numbers
- CL5716INATAXGDE, CL5716INATAXGES, CL5716INATAXGFR, CL5716INATAXGIT, CL5716INATAXGNR, CL5716INATAXGRU +6 more
- EAN / UPC
- 5711783911395, 4710469345159, 4710469345883, 4710469343360
- Also known as
- ATEN CL5716IN rack console 48.3 cm (19") 1280 x 1024 pixels Metal, Plastic Black 1U
Specifications
57 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display type | TFT |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Supported resolutions | 1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Auto scan delay (max) | 255 s |
| Auto scan delay (min) | 1 s |
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Console port | SPHD-18 |
| Daisy chain | Yes |
| Hot-Plug support | Yes |
| KVM switch ports quantity | 16 |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 256 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |

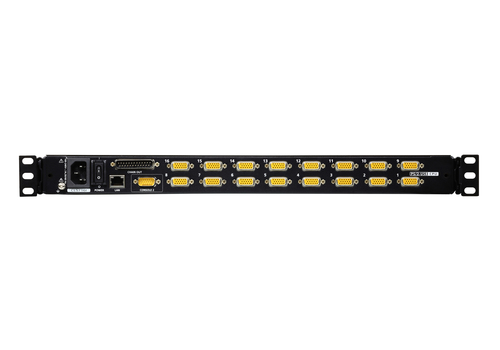

Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| RJ-45 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| I/O ports | 1x DB-25 1x RJ-11 |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 689.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 13.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
