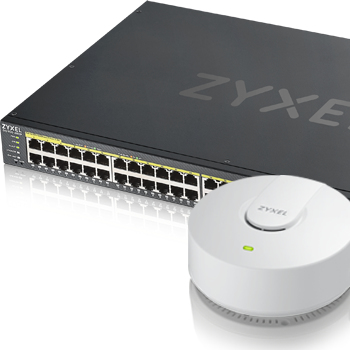

GS192048HPV2 + GRATIS NWA1123-ACV2 Access point
Model GS192048HPV2 + GRATIS NWA1123-ACV2 Access pointPart no. GS192048HPV2-EU0103FEAN 471893761017
67 specifications
- Memory256 MB
- Type1U
- Weight4.1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity44
Overview
- Memory
- 256 MB
- Type
- 1U
- Weight
- 4.1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 44
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS192048HPV2 + GRATIS NWA1123-ACV2 Access point
- Part number
- GS192048HPV2-EU0103F
- EAN / UPC
- 471893761017, 4718937610174
- Also known as
- Zyxel GS192048HPV2 + GRATIS NWA1123-ACV2 Access point Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
67 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 100 Gbit/s |
| Forwarding rate | 74 Mpps |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | RADIUS |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Electromagnetic compatibility | FCC Part 15, CE EMC, BSMI ENC |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 502509 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 474.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 375 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 1617.36 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 4.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
