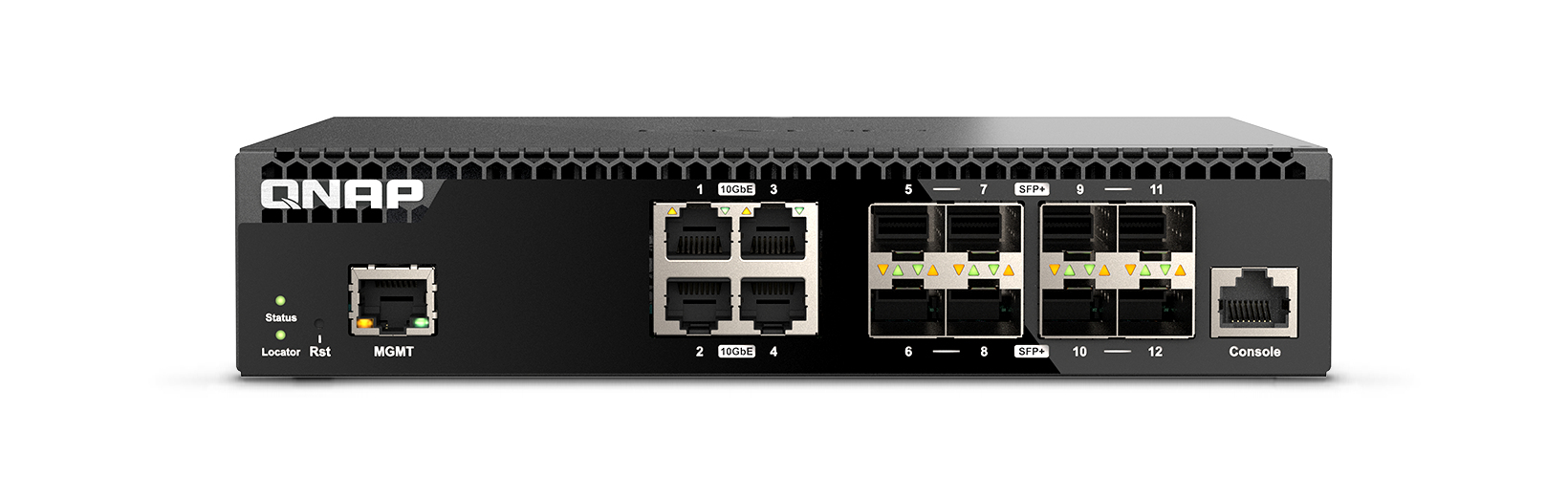

QSW-M3212R-8S4T network switch Managed
10G Ethernet (100/1000/10000) 1U
Model QSW-M3212R-8S4TEAN 885022026678
39 specifications
- Type1U
- Weight1.48 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- 10G supportYes
- MAC address table16000 entries
Overview
- Type
- 1U
- Weight
- 1.48 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M3212R-8S4T
- Part number
- QSW-M3212R-8S4T
- EAN / UPC
- 885022026678, 4711103084328
- Also known as
- QNAP QSW-M3212R-8S4T network switch Managed 10G Ethernet (100/1000/10000) 1U
Specifications
39 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 8 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Throughput | 120 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Reset button | Yes |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 207 mm |
| Depth | 197 mm |
| Height | 43.3 mm |
| Weight | 1.48 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 324 mm |
| Package depth | 282 mm |
| Package height | 88 mm |
| Package weight | 1.49 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, BSMI |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Products per master (outer) case | 8 pc(s) |
