NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey
Model M6100-44G3-POE+Part no. XCM8903SK-10000SEAN 5415247021575
48 specifications
- Speed10000 Mbit/s
- Type4U
- ColourBlack, Grey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity40
- 10G supportYes
Overview
- Speed
- 10000 Mbit/s
- Type
- 4U
- Colour
- Black, Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 40
- 10G support
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M6100-44G3-POE+
- Part number
- XCM8903SK-10000S
- EAN / UPC
- 5415247021575, 014013307292, 606449102499, 6064491024994 +1 more
- Also known as
- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 40 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Number of queues | 7 |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN |
| Supported network protocols | iPv4/iPv6 |
Design
| Specification | Value |
|---|---|

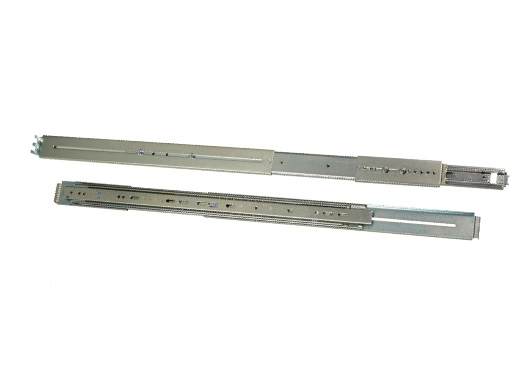

| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 4U |
| Product colour | Black, Grey |
| Housing material | Metal |
| LED indicators | Yes |

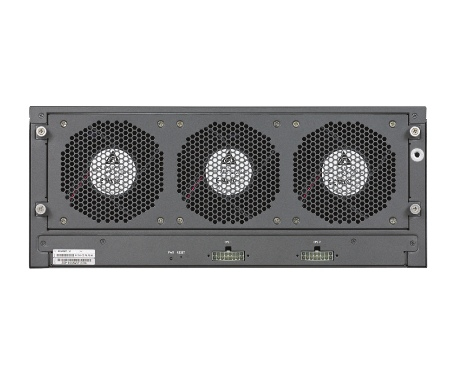

| Number of fans | 3 fan(s) |
| Safety | CE, CSA, UL 1950 /cUL IEC 950/EN 60950 |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 441.6 mm |
| Height | 175.9 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC Part 15 Class A VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 50082-1 EN 55024 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey

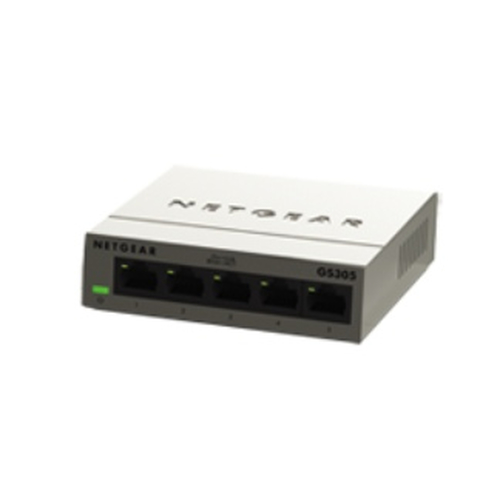

Compare any products- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsNETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) GreyCompare specs

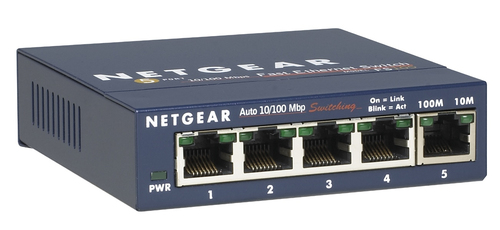

- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsNETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) BlueCompare specs
- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsNETGEAR GS305-100PAS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) BlackCompare specs
- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsNETGEAR GS305-100PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) GreyCompare specs

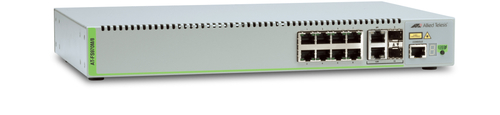

- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsAllied Telesis FS970M/8 Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) GreyCompare specs

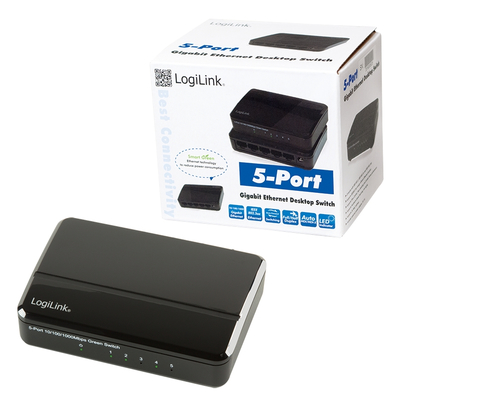

- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsLogiLink NS0105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) BlackCompare specs

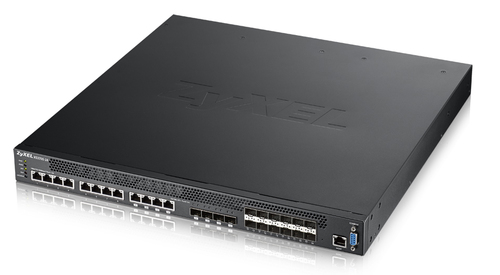

- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsZyxel XS3700-24 Managed L2+Compare specs

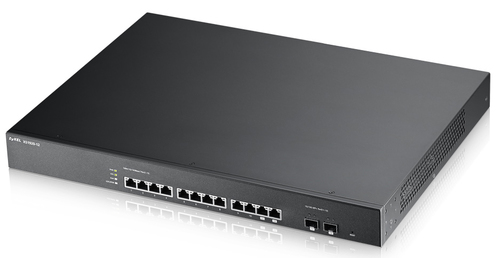

- NETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, Grey vsZyxel XS1920-12 Managed L2Compare specs
