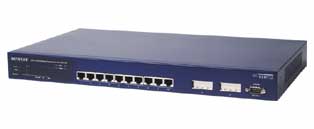

GSM712GE 10xGENet 2xGBIC RJ45 managed
Model GSM712GE 10xGENet 2xGBIC RJ45 managedPart no. GSM712GE
12 specifications
- Weight3.2 kg
- Full duplexYes
- MAC address table8.000 entries
- Operating temperature (T-T)5 - 40 °C
Overview
- Weight
- 3.2 kg
- Full duplex
- Yes
- MAC address table
- 8.000 entries
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM712GE 10xGENet 2xGBIC RJ45 managed
- Part number
- GSM712GE
- Also known as
- NETGEAR GSM712GE 10xGENet 2xGBIC RJ45 managed
Specifications
12 specifications in 6 groups
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8.000 entries |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IEEE 802.1x Standard for Port Based Network Access Control***, IEEE 802.1Q Static VLAN (up to 64), IEEE 802.1p Class of Service (CoS), IEEE 802.1D Spanning Tree Protocol, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IGMP Snooping Support, Port Mirroring Support, RFC 1157 SNMP, RFC 1757 RMO |
Other features
| Specification | Value |
|---|---|
| Management platform | web-based, console |
| Management level | lo |
| Dimensions (WxDxH) | 440 x 253 x 43 mm |
| Networking features | Ethernet/Fast Ethernet |
| I/O ports | • 10 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) • 2 Gigabit Interface Converter (GBIC) slots for GBIC modules • RS-232 Console Port |
| Power availability | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
