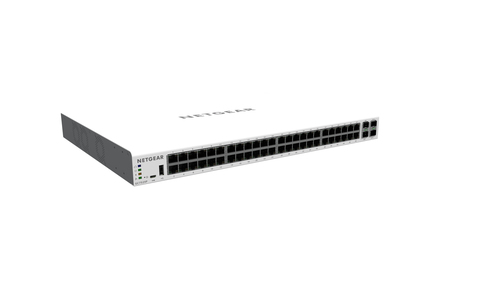

GC752XP-100EUS+NPRSNG1P-10000S/KIT network switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model GC752XP-100EUS+NPRSNG1P-10000S/KIT
50 specifications
- Memory512 MB
- Noise30 dB
- Weight4.79 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 512 MB
- Noise
- 30 dB
- Weight
- 4.79 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GC752XP-100EUS+NPRSNG1P-10000S/KIT
- Part number
- GC752XP-100EUS+NPRSNG1P-10000S/KIT
- Also known as
- NETGEAR GC752XP-100EUS+NPRSNG1P-10000S/KIT network switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
50 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Address Resolution Protocol (ARP) entries (max) | 384 |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Voice VLAN, Tagged VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 140 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 512 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Safety | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, 2014, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, RCM, AS/NZS 60950.1:2015, BSMI CNS14336-1, KCC K60950-1, CCC GB4943.1-2011 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 400 MHz |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Noise level | 30 dB |
| Remarking priority | 8 |
| Mean time between failures (MTBF) | 455.682 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Power consumption (typical) | 39.4 W |
| Power consumption (max) | 623.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 505 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 2127.64 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 320 mm |
| Height | 44 mm |
| Weight | 4.79 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55032:2012+AC:2013, EN55024:2010+A1:2015, EN61000-3-2:2014, EN61000-3-3:2013, VCCI-CISPR 32:2016, RCM, AS/NZS CISPR 32:2015, ICES-003:2016 |
