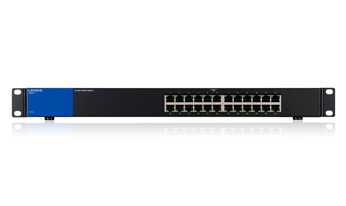

LGS124 network switch Gigabit Ethernet (10/100/1000) 1U Black
Model LGS124Part no. LGS124-AUEAN 745883632282
29 specifications
- Type1U
- Weight2.37 kg
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity24
- Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Overview
- Type
- 1U
- Weight
- 2.37 kg
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-T, 10BASE-T
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS124
- Part numbers
- LGS124-AU, LGS124, LGS124-EU
- EAN / UPC
- 745883632282, 722868998359, 7228689983596, 734367841319 +8 more
- Also known as
- Linksys LGS124 network switch Gigabit Ethernet (10/100/1000) 1U Black
Specifications
29 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Auto-sensing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Throughput | 1.488 Mpps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 14.16 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.37 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
