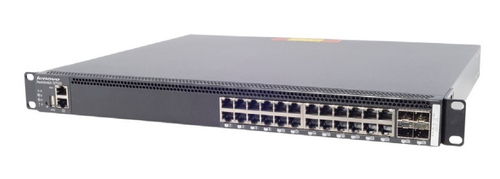

Lenovo 00FM514 network switch Managed L2/L3 Black
Model 00FM514EAN 883436674799
30 specifications
- Weight3.7 kg
- ColourBlack
- Switch typeManaged
- 10G supportYes
- MAC address table128000 entries
- DHCP featuresDHCP relay
Overview
- Weight
- 3.7 kg
- Colour
- Black
- Switch type
- Managed
- 10G support
- Yes
- MAC address table
- 128000 entries
- DHCP features
- DHCP relay
- Brand
- Lenovo
- Category
- Network Switch
- Model
- 00FM514
- Part number
- 00FM514
- EAN / UPC
- 883436674799, 4058154260067
- Also known as
- Lenovo 00FM514 network switch Managed L2/L3 Black
Specifications
30 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Static route | Yes |
| Number of static routes | 128 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1,V3 |
| Routing protocols | BGP, OSPF, RIP |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 236805 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 401 mm |
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 508 mm |
| Package depth | 432 mm |
| Package height | 114 mm |
| Package weight | 4.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) |
