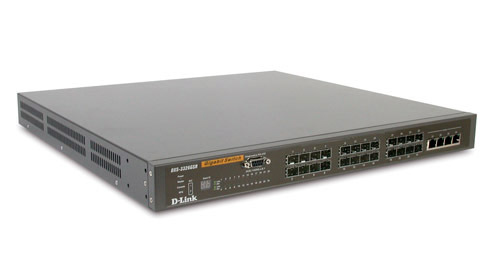

24-Port SFP Switch + 4 combo 10/100/1000T + 2 10GbE ports
Model 24-Port SFP Switch + 4 combo 10/100/1000T + 2 10GbE portsPart no. DXS-3326GSREAN 790069268502
22 specifications
- Speed10 Gbit/s
- Weight6.5 kg
- Basic switching RJ-45 Ethernet ports quantity30
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table16000 entries
- Management protocolsTelnet, SNMPv1/v2/v3
Overview
- Speed
- 10 Gbit/s
- Weight
- 6.5 kg
- Basic switching RJ-45 Ethernet ports quantity
- 30
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table
- 16000 entries
- Management protocols
- Telnet, SNMPv1/v2/v3
- Brand
- D-Link
- Category
- Network Switch
- Model
- 24-Port SFP Switch + 4 combo 10/100/1000T + 2 10GbE ports
- Part number
- DXS-3326GSR
- EAN / UPC
- 790069268502, 790069268519, 7900692685024
- Also known as
- D-Link 24-Port SFP Switch + 4 combo 10/100/1000T + 2 10GbE ports
Specifications
22 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 30 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Maximum data transfer rate | 10 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMPv1/v2/v3 |
| Switching protocols | TFTP, DHCP, RSTP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | CSA+NRTL/C |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 140 W |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI/Console, Web-based HTTP |
| Data transfer rate | 10000 Mbit/s |
| Dimensions (WxDxH) | 441 x 207 x 44 mm |
| Power requirements | 100-120, 200-240VAC, 50/60 Hz |
| Electromagnetic emissions | CE Mark, FCC Class A |
| I/O ports | 24x GbE SFP Fiber Slots 4x 10/100/1000 Ethernet Ports 2x 10-Gigabit Stacking Ports |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.5 kg |
