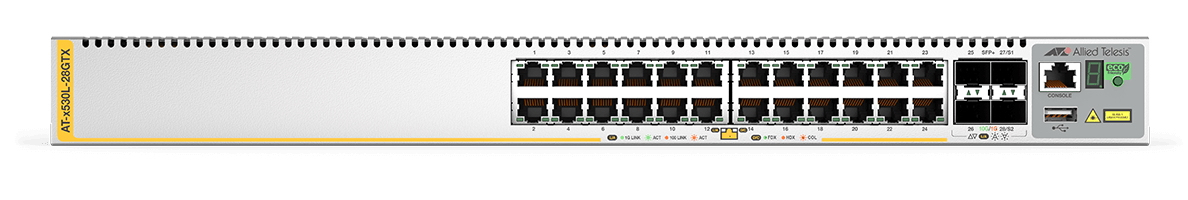

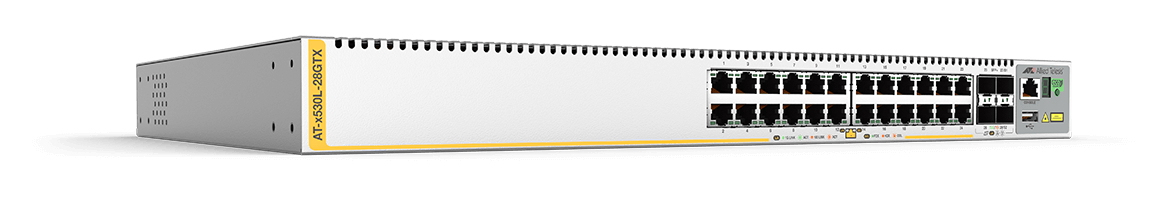

AT-x530L-28GTX-50 Managed L3+ Gigabit Ethernet (10/100/1000) 1U Grey
Model AT-x530L-28GTX-50Part no. 990-006428-50EAN 767035216966
85 specifications
- Memory1000 MB
- Noise42 dB
- Type1U
- Weight4.4 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 1000 MB
- Noise
- 42 dB
- Type
- 1U
- Weight
- 4.4 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x530L-28GTX-50
- Part number
- 990-006428-50
- EAN / UPC
- 767035216966
- Also known as
- Allied Telesis AT-x530L-28GTX-50 Managed L3+ Gigabit Ethernet (10/100/1000) 1U Grey
Specifications
85 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Protocol-based VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Latency (1 Gbps) | 3.98 µs |
| Latency (10 Gbps) | 1.63 µs |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x, Network Access Control (NAC), RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, DES, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Multicast forwarding |
| Multicast Listener Discovery (MLD) snooping | MLDv1, MLDv2 |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | RIP, RIP-2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-levels 2 |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
| Export Control Classification Number (ECCN) | 5A992C |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |

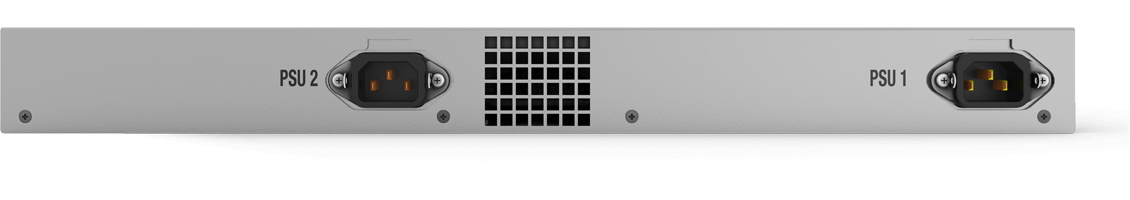

| Number of power supply units | 2 |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 39 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 133 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 440 mm |
| Package height | 153 mm |
| Package weight | 6.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
