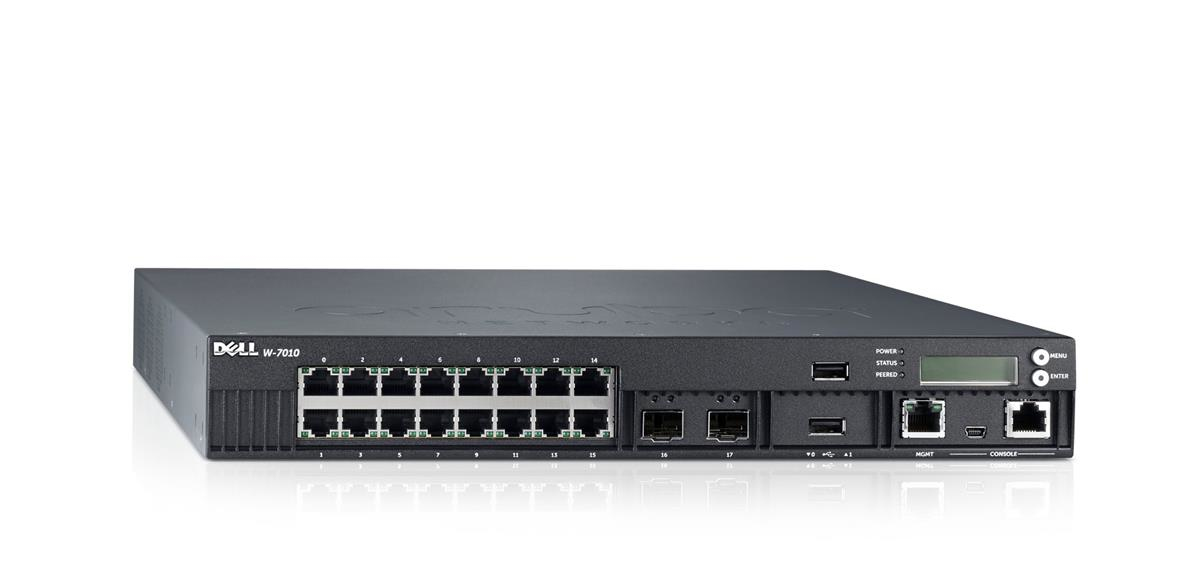

PowerConnect W-7010
Model PowerConnect W-7010Part no. 210-ACYWEAN 5397063839544
18 specifications
- ColourBlack
- Firewall throughput4000 Mbit/s
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports16
- Power consumption (typical)190 W
- Rack capacity1U
Overview
- Colour
- Black
- Firewall throughput
- 4000 Mbit/s
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 16
- Power consumption (typical)
- 190 W
- Rack capacity
- 1U
- Brand
- Dell
- Category
- Network Management Device
- Model
- PowerConnect W-7010
- Part number
- 210-ACYW
- EAN / UPC
- 5397063839544
- Also known as
- DELL PowerConnect W-7010 network management device 4000 Mbit/s Ethernet LAN Wi-Fi Power over Ethernet (PoE)
Specifications
18 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Firewall throughput | 4000 Mbit/s |
| Number of LAN Access Points (max) | 32 |
| Number of Remote Access Points (max) | 32 |
| Number of users | 2048 user(s) |
| Concurrent IPSec tunnels | 1024 |
| Number of VLANs | 4094 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 802.1x RADIUS, TKIP, WEP, WPA-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 16 |
| Installed SFP modules quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 190 W |
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
