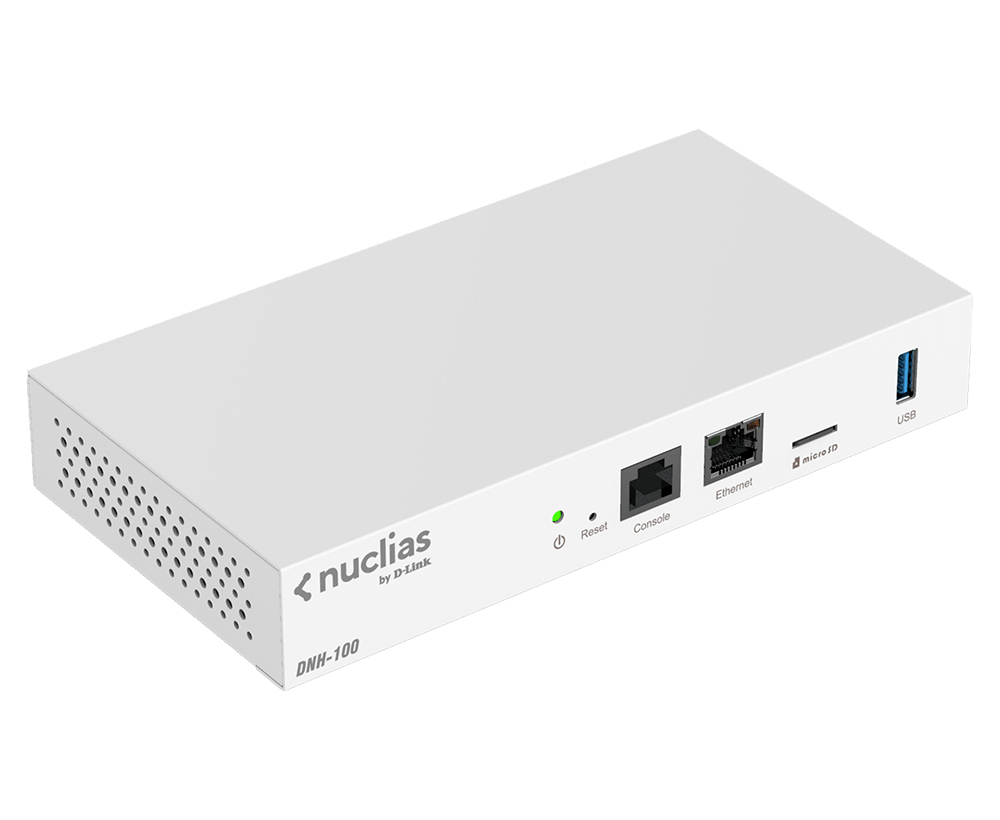

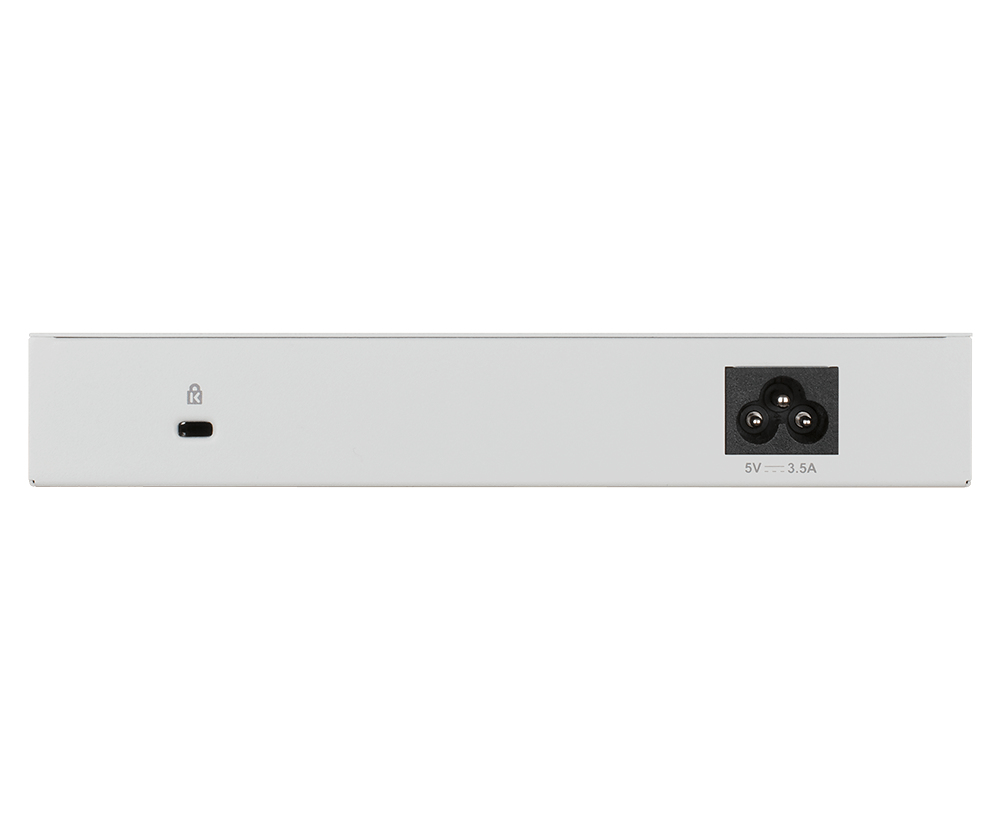

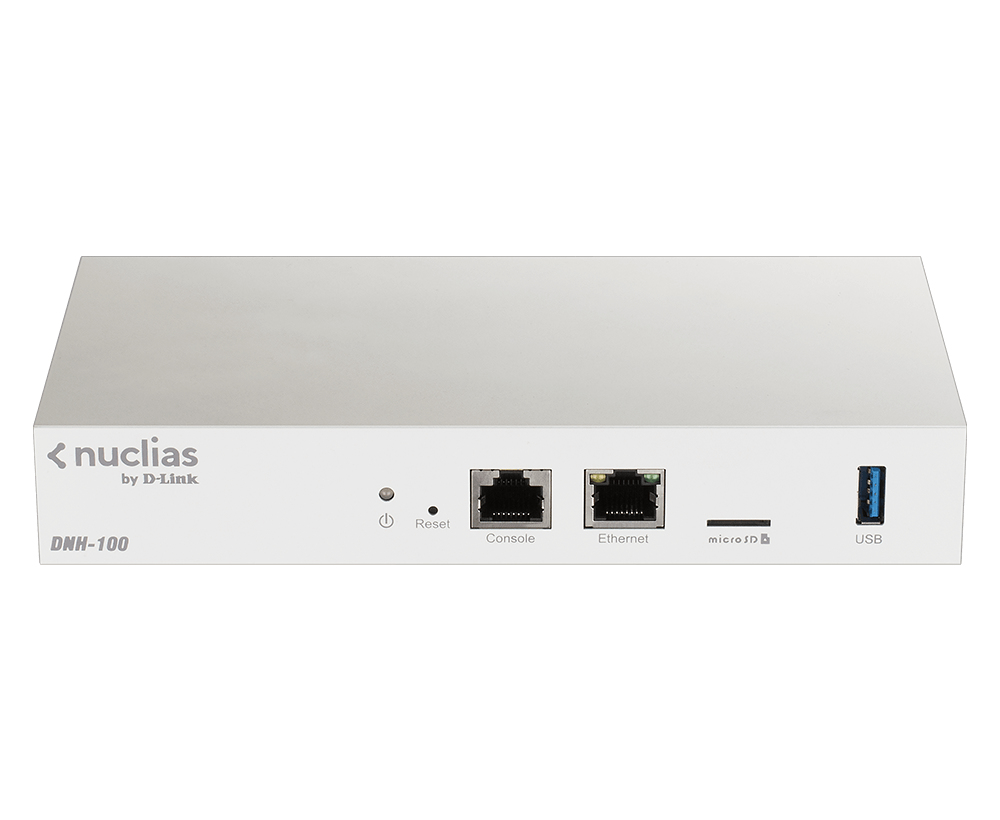

Nuclias Connect Hub
Model DNH-100EAN 790069449574
31 specifications
- ConnectivityWired
- Weight529 g
- ColourWhite
- Firewall throughput100 Mbit/s
- Ethernet LANYes
- Security algorithmsWPA2, WPA3
Overview
- Connectivity
- Wired
- Weight
- 529 g
- Colour
- White
- Firewall throughput
- 100 Mbit/s
- Ethernet LAN
- Yes
- Security algorithms
- WPA2, WPA3
- Brand
- D-Link
- Category
- Network Management Device
- Model
- DNH-100
- Part number
- DNH-100
- EAN / UPC
- 790069449574, 790069451980
- Also known as
- D-Link Nuclias Connect Hub
Specifications
31 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Firewall throughput | 100 Mbit/s |
| Number of LAN Access Points (max) | 2 |
| Concurrent IPSec tunnels | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.5 W |
| Power over Ethernet (PoE) | No |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Power LED | Yes |
| LED indicators | Power |
| Certification | FCC Class B, CE, C-Tick, VCCI, BSMI, cUL, CB, LVD (En60950-1) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 190 x 100 x 31 mm |
| Weight | 529 g |
| Width | 190 mm |
| Depth | 100 mm |
| Height | 31 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
