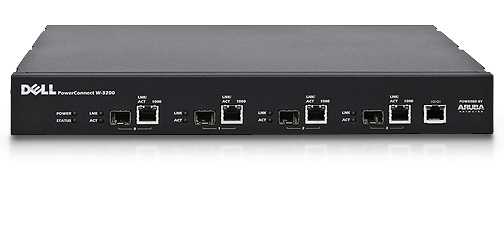

PowerConnect W-3200
Model PowerConnect W-3200Part no. 210-33476EAN 5397063839865
25 specifications
- ConnectivityWired
- Weight3.2 kg
- Firewall throughput3000 Mbit/s
- Ethernet LANYes
- Security algorithms3DES
- Power supply35 W
Overview
- Connectivity
- Wired
- Weight
- 3.2 kg
- Firewall throughput
- 3000 Mbit/s
- Ethernet LAN
- Yes
- Security algorithms
- 3DES
- Power supply
- 35 W
- Brand
- Dell
- Category
- Network Management Device
- Model
- PowerConnect W-3200
- Part number
- 210-33476
- EAN / UPC
- 5397063839865
- Also known as
- DELL PowerConnect W-3200 network management device 3000 Mbit/s Ethernet LAN
Specifications
25 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Firewall throughput | 3000 Mbit/s |
| Number of Remote Access Points (max) | 128 |
| MAC address table | 64000 entries |
| Number of users | 2048 user(s) |
| Concurrent IPSec tunnels | 2048 |
| Number of VLANs | 256 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 1000Base-T/1000Base-X |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 4 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 35 W |
| AC input voltage | 90-264 V |
| AC input frequency | 47/63 Hz |
| Input current | 2.2 A |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 351 x 297 x 44 mm |
| Weight | 3.2 kg |
