SD-WAN Edge 640
Model SD-WAN Edge 640Part no. 210-ATENEAN 5397184224595
21 specifications
- Storage256 GB
- ConnectivityWired & Wireless
- Weight1.3 kg
- ColourBlack, Silver
- Ethernet LANYes
- AC input voltage100 - 240 V
Overview
- Storage
- 256 GB
- Connectivity
- Wired & Wireless
- Weight
- 1.3 kg
- Colour
- Black, Silver
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Brand
- Dell
- Category
- Network Management Device
- Model
- SD-WAN Edge 640
- Part numbers
- 210-ATEN, DNSDWAN_EDGE640
- EAN / UPC
- 5397184224595
- Also known as
- DELL SD-WAN Edge 640 network management device Ethernet LAN Wi-Fi
Specifications
21 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |

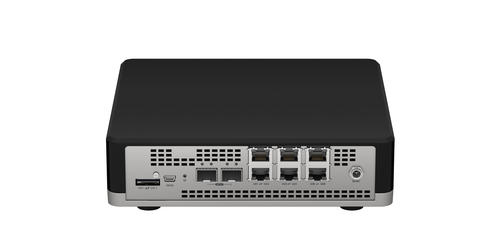

| Ethernet LAN (RJ-45) ports | 6 |
| Installed SFP modules quantity | 2 |
| AC (power) in | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
Hard drive
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
| Width | 208 mm |
| Depth | 200 mm |
| Height | 52 mm |
