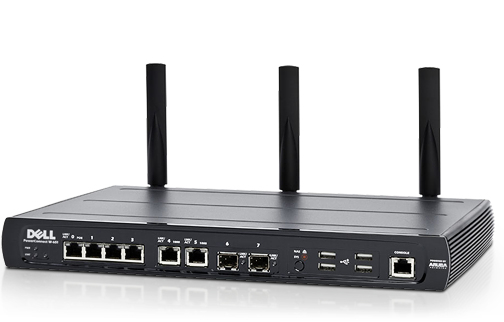

PowerConnect W-650
Model PowerConnect W-650Part no. 210-33480
38 specifications
- ConnectivityWired
- Weight2.2 kg
- Firewall throughput2000 Mbit/s
- Ethernet LANYes
- AC input voltage220-240 V
- Antenna typeExternal
Overview
- Connectivity
- Wired
- Weight
- 2.2 kg
- Firewall throughput
- 2000 Mbit/s
- Ethernet LAN
- Yes
- AC input voltage
- 220-240 V
- Antenna type
- External
- Brand
- Dell
- Category
- Network Management Device
- Model
- PowerConnect W-650
- Part number
- 210-33480
- Also known as
- DELL PowerConnect W-650 network management device 2000 Mbit/s Ethernet LAN Wi-Fi Power over Ethernet (PoE)
Specifications
38 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Firewall throughput | 2000 Mbit/s |
| Number of LAN Access Points (max) | 16 |
| Number of Remote Access Points (max) | 64 |
| MAC address table | 2048 entries |
| Number of users | 512 user(s) |
| Concurrent IPSec tunnels | 512 |
| Concurrent connections | 16384 |
| Number of VLANs | 128 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, QPSK |
Management features
| Specification | Value |
|---|---|
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 8 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 4 |
| RS-232 ports | 1 |
| ExpressCard slot | Yes |
| AC (power) in | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 220-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 126 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 78 W |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Antennas quantity | 3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Certification | FCC, EN 55022, EN 55024, IEC/EN 60950, CE, cTUVus, CB Scheme |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 346 x 226 x 38 mm |
| Weight | 2.2 kg |
