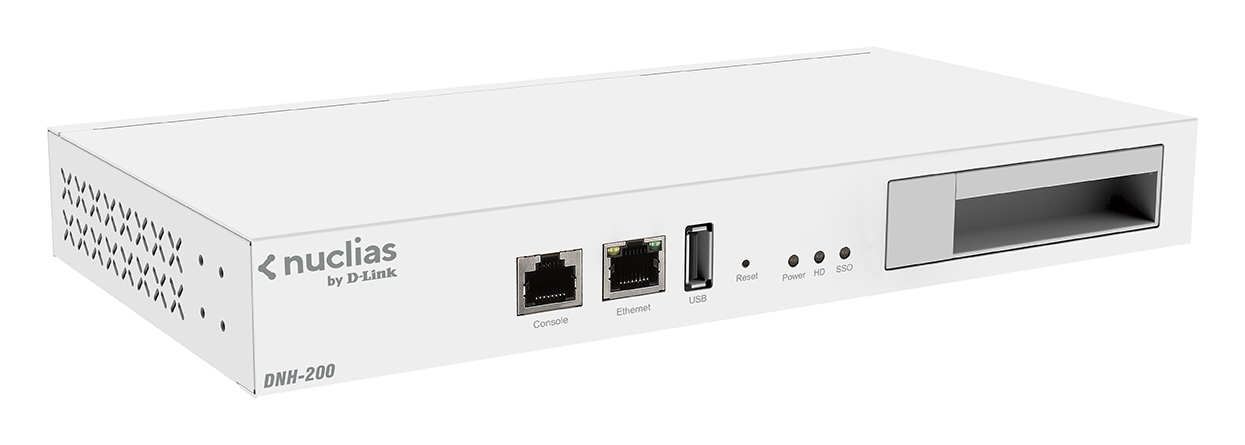

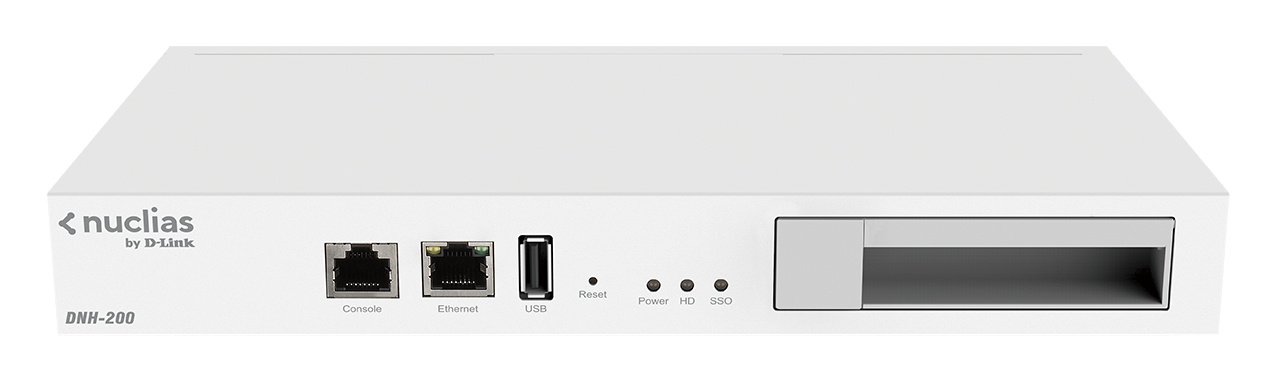

Nuclias Connect Hub Plus
Model DNH-200EAN 790069459993
25 specifications
- ConnectivityWired
- Weight865 g
- Number of LAN Access Points (max)50
- Ethernet LANYes
- Security algorithmsHTTPS, SSH
- AC input voltage12 V
Overview
- Connectivity
- Wired
- Weight
- 865 g
- Number of LAN Access Points (max)
- 50
- Ethernet LAN
- Yes
- Security algorithms
- HTTPS, SSH
- AC input voltage
- 12 V
- Brand
- D-Link
- Category
- Network Management Device
- Model
- DNH-200
- Part number
- DNH-200
- EAN / UPC
- 790069459993, 790069460074
- Also known as
- D-Link Nuclias Connect Hub Plus
Specifications
25 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Number of LAN Access Points (max) | 50 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS, SSH |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |

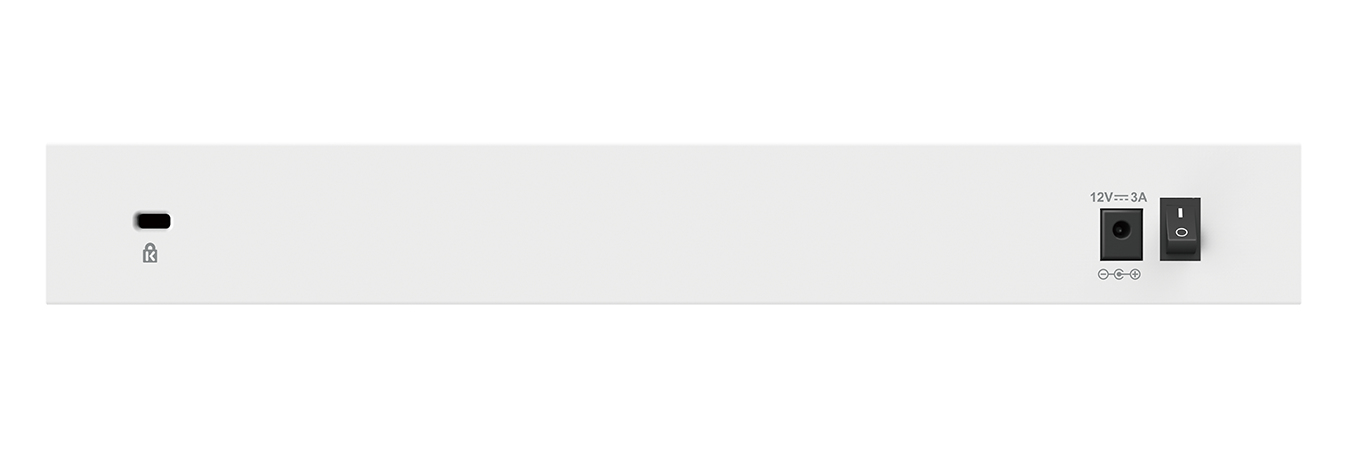

Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
| Input current | 3 A |
| Power consumption (typical) | 19 W |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Data, HDD, Power |
| Certification | FCC Class A, CE Class A, RCM, RoHS, WEEE |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 865 g |
| Width | 270 mm |
| Depth | 140 mm |
| Height | 35 mm |
