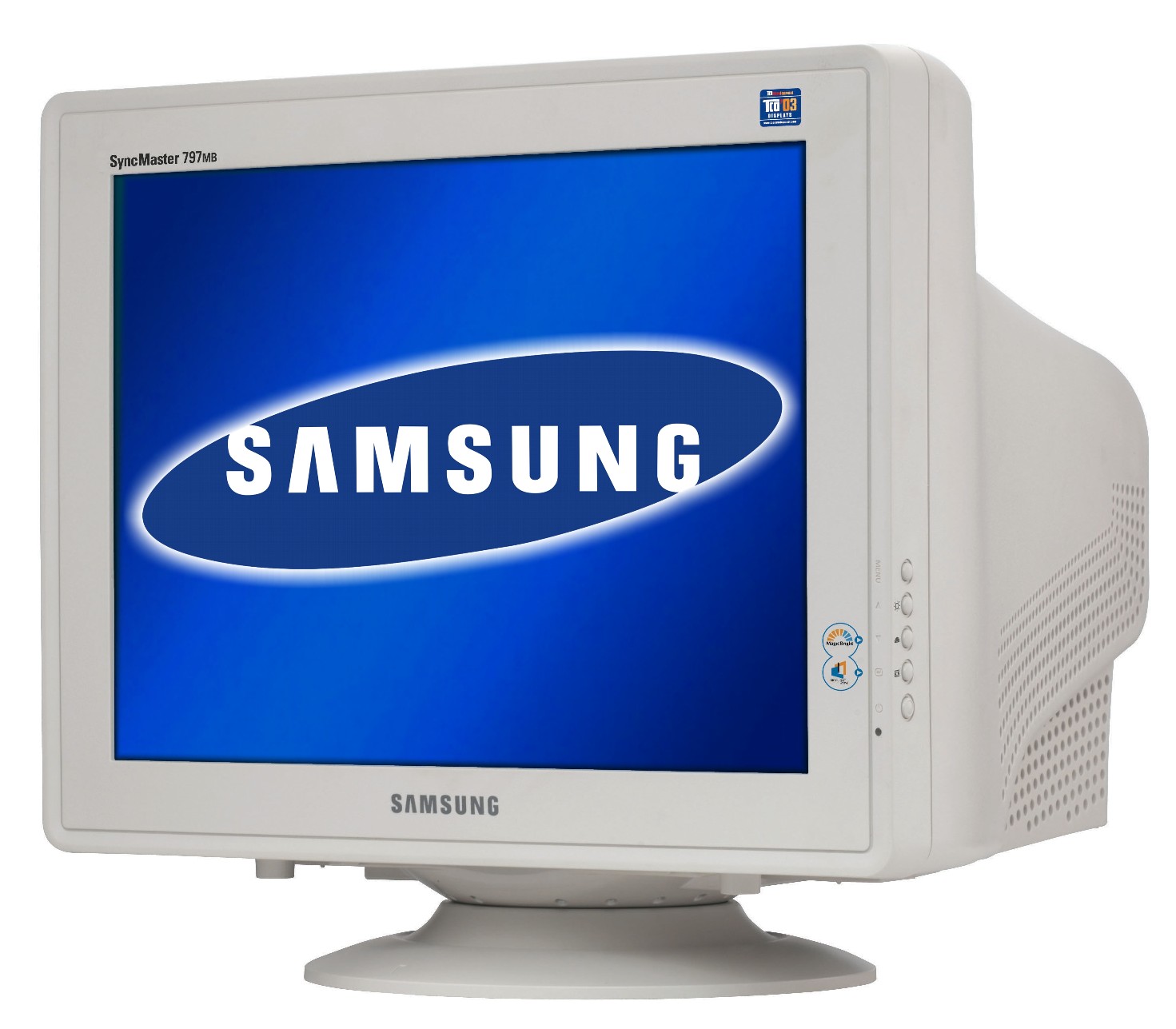

SyncMaster 797MB
Model SyncMaster 797MBPart no. LH17ISBBHEAN 8808979439607
26 specifications
- Display43.2 cm (17")
- Resolution1920 x 1440 pixels
- TypeDynaFlat
- Weight14.3 kg
- Plug and PlayYes
- Power managementEPA/VESA DPMS
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1920 x 1440 pixels
- Type
- DynaFlat
- Weight
- 14.3 kg
- Plug and Play
- Yes
- Power management
- EPA/VESA DPMS
- Brand
- Samsung
- Category
- Monitors CRT
- Model
- SyncMaster 797MB
- Part number
- LH17ISBBH
- EAN / UPC
- 8808979439607
- Also known as
- Samsung SyncMaster 797MB monitor CRT 1920 x 1440 pixels 43.2 cm (17")
Specifications
26 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | DynaFlat |
| Display resolution | 1920 x 1440 pixels |
| Viewable size diagonal | 40.6 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 96 kHz |
| Monitor sync input signal | Separate H/V, Composite |
| Maximum resolution | 1920 x 1440 pixels |
| Pixel pitch | 0.2 |
| Surface treatment | Multi-Layer Coating |
| Recommended resolution | 1280x1024@85Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO'03, TÜV GS, CE |
Power
| Specification | Value |
|---|---|
| Power management | EPA/VESA DPMS |
| Power consumption (typical) | 80 W |
| Power consumption (standby) | 2 W |
| Power requirements | AC 90-264VAC, 50/60Hz |
Management features
| Specification | Value |
|---|---|
| User controls | OSD |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 401 x 378 x 410 mm |
| Weight | 14.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 464 x 459 x 518 mm |
| Package weight | 16.2 kg |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic emissions | MPR-II |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/ME/XP |
Technical details
| Specification | Value |
|---|---|
| Special features | MagicBright 2 HighlightZone III |
| Video Dot Rate | 250 MHz |
