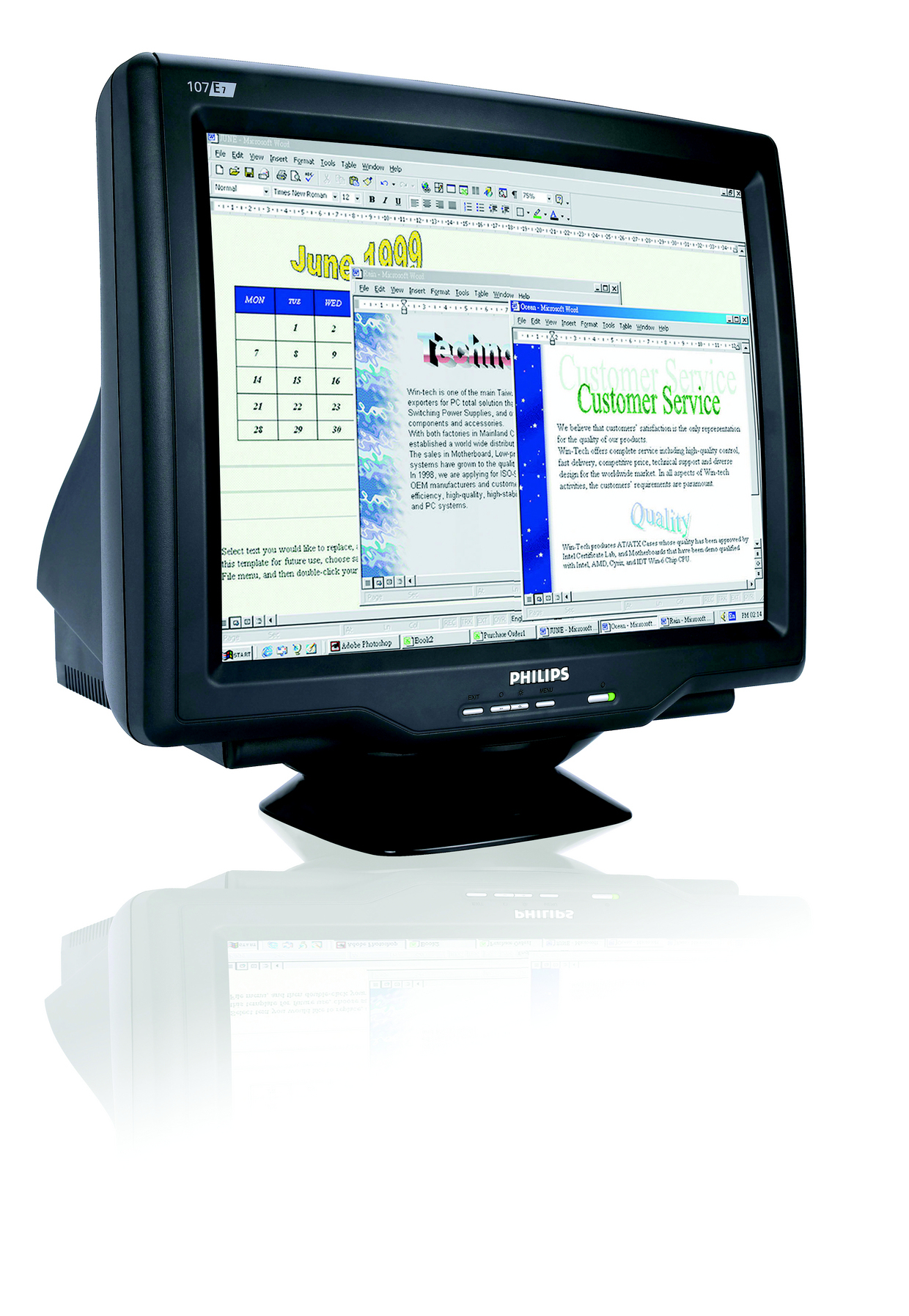

CRT monitor 107E76/00
Model 107E76/00EAN 8710895967570
60 specifications
- Display43.2 cm (17")
- Weight12.5 kg
- Swivel angle range90 - 90°
- Power consumption (standby)1 W
- Storage temperature (T-T)-25 - 65 °C
- Depth415 mm
Overview
- Display
- 43.2 cm (17")
- Weight
- 12.5 kg
- Swivel angle range
- 90 - 90°
- Power consumption (standby)
- 1 W
- Storage temperature (T-T)
- -25 - 65 °C
- Depth
- 415 mm
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107E76/00
- Part number
- 107E76/00
- EAN / UPC
- 8710895967570
- Also known as
- Philips CRT monitor 107E76/00
Specifications
60 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Viewable size diagonal | 41 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 71 kHz |
| Monitor sync input signal | Separate Sync |
| Maximum resolution | 1280 x 1024 pixels |
| Display viewable area (HxV) | 306 x 230 mm |
| Pixel pitch | 0.27 |
| Display | Flat Square Tube |
| Digital horizontal frequency | 30 - 71 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display GTF | Yes |
| Display dot pitch (horizontal) | 0.23 mm |
| Display recommended refresh rate | 85 Hz |
| Display sRGB | Yes |
| Recommended display area(inch) | 30.5 cm (12") |
| Sync input impedance | 2200 Ω |
| Display panel size | 17"/ 41 cm |
| Display resolution at frequency | 640 x 480 @ 60 Hz, 640 x 480 @ 85Hz, 720 x 400 @ 70 Hz, 800 x 600 @ 75 Hz, 800 x 600 @ 85 Hz, 1024 x 768 @ 75 Hz, 1024 x 768 @ 85 Hz, 1280 x 1024 @ 60 Hz |
| Recommended resolution | 1024 x 768 @ 85 Hz |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Features
| Specification | Value |
|---|---|
| Swivel angle range | 90 - 90° |
| Tilt angle range | -5 - 13° |
| Certification | BSMI CCC CE Mark C-Tick DHS eK FCC-B, UL, CSA FDA GOST IRAM MIC MPR-II, Low Emission NOM PSB SEMKO TÜV/GS, TÜV Ergo |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1 W |
| Power requirements | Built-in 100-264 VAC, 50/60 Hz |
Management features
| Specification | Value |
|---|---|
| User controls | Bright Direct Access Contrast Direct Access Menu Power On/Off |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 415 mm |
| Height | 382 mm |
| Set weight (lb) | 12.5 kg (27.5 lbs) |
| Weight | 12.5 kg |
| Width | 397 mm |
| Set depth (inch) | 41.4 cm (16.3") |
| Set height (inch) | 38.1 cm (15") |
| Set weight | 12.5 kg |
| Set width | 39.7 cm |
| Set width (inch) | 39.6 cm (15.6") |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 470 mm |
| Package dimensions (WxDxH) | 446 x 470 x 420 mm |
| Package height | 420 mm |
| Package weight | 14.4 kg |
| Package width | 446 mm |
| Box depth (imperial) | 47 cm (18.5") |
| Box height (imperial) | 41.9 cm (16.5") |
| Box width (imperial) | 44.7 cm (17.6") |
| Package weight (imperial) | 14.4 kg (31.8 lbs) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Additional accessories | AC Power Cord |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
| Mac compatibility | No |
Technical details
| Specification | Value |
|---|---|
| Cable connection | AC Power in |
| Phosphor | P22 |
| Video Dot Rate | 110 MHz |
| Convenience enhancements | Menu Languages On-screen Display |
| Factory preload modes | 10 modes 640 x 480 @ 60 Hz 640 x 480 @ 85Hz 720 x 400 @ 70 Hz 800 x 600 @ 75 Hz 800 x 600 @ 85 Hz 1024 x 768 @ 75 Hz 1024 x 768 @ 85 Hz 1280 x 1024 @ 60 Hz 8 modes |
