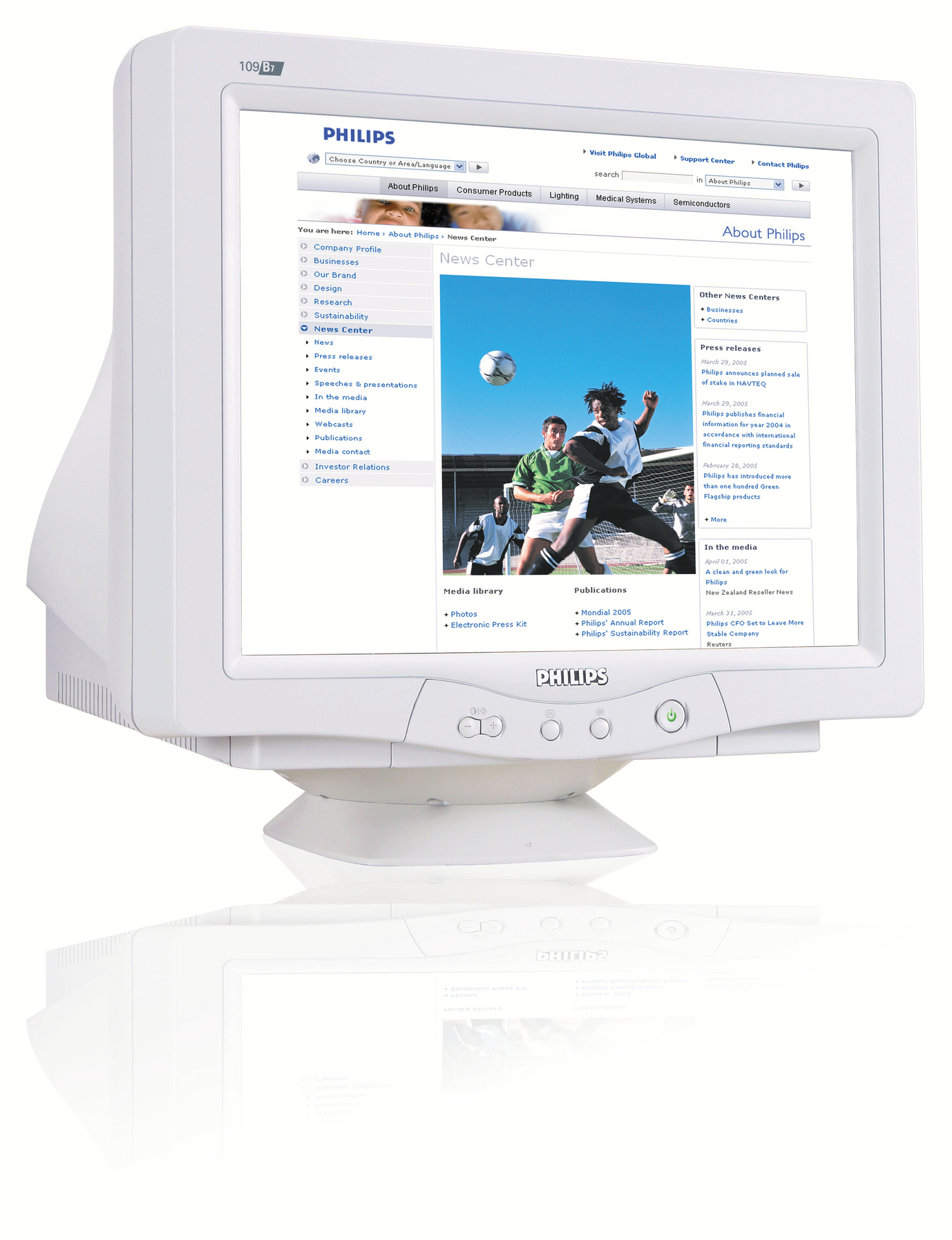

19" Real Flat CRT Monitor
Model 19" Real Flat CRT MonitorPart no. 109B70/05
62 specifications
- Display48.3 cm (19")
- TypeReal Flat
- Weight20 kg
- Swivel angle range90 - 90°
- I/O ports1x VGA
- Power consumption (standby)1 W
Overview
- Display
- 48.3 cm (19")
- Type
- Real Flat
- Weight
- 20 kg
- Swivel angle range
- 90 - 90°
- I/O ports
- 1x VGA
- Power consumption (standby)
- 1 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 19" Real Flat CRT Monitor
- Part number
- 109B70/05
- Also known as
- Philips 109B70 19" real flat SXGA CRT monitor
Specifications
62 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | Real Flat |
| Viewable size diagonal | 46 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 92 kHz |
| Monitor sync input signal | Composite Sync Separate Sync |
| Maximum resolution | 1600 x 1200 pixels |
| Display viewable area (HxV) | 355 x 265 mm |
| Pixel pitch | 0.25 |
| Display | Real Flat picture tube |
| Digital horizontal frequency | 30 - 92 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display GTF | Yes |
| Display dot pitch (horizontal) | 0.21 mm |
| Display recommended refresh rate | 85 Hz |
| Display sRGB | Yes |
| Recommended display area(inch) | 35.6 cm (14") |
| Sync input impedance | 2200 Ω |
| White Chromaticity, 5500K | x = 0.332 / y = 0.347 |
| Display panel size | 19"/ 46 cm |
| Display resolution at frequency | 640 x 480 @ 60 Hz, 720 x 400 @ 70 Hz, 800 x 600 @ 75 Hz, 800 x 600 @ 85 Hz, 1024 x 768 @ 75 Hz, 1024 x 768 @ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x 1024 @ 85 Hz |
| Recommended resolution | 1280 x 1024 @ 85 Hz |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Features
| Specification | Value |
|---|---|
| Swivel angle range | 90 - 90° |
| Tilt angle range | -5 - 25° |
| Certification | CE Mark FCC-B, UL, CSA SEMKO MPR-II, Low Emission TÜV/GS, TÜV Ergo FDA CCC |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1x VGA |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1 W |
| Power requirements | Built-in 90-264 VAC, 50/60 Hz |
Management features
| Specification | Value |
|---|---|
| User controls | Bright Direct Access Contrast Direct Access High Bright Hotkey Left/Right Menu Power On/Off Up/Down |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 457 mm |
| Height | 422.5 mm |
| Set weight (lb) | 20 kg (44 lbs) |
| Weight | 20 kg |
| Width | 439 mm |
| Set depth (inch) | 45.7 cm (18") |
| Set height (inch) | 42.2 cm (16.6") |
| Set weight | 20 kg |
| Set width | 43.9 cm |
| Set width (inch) | 43.9 cm (17.3") |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 534 mm |
| Package dimensions (WxDxH) | 494 x 534 x 434 mm |
| Package height | 434 mm |
| Package weight | 22.9 kg |
| Package width | 494 mm |
| Box depth (imperial) | 53.4 cm (21") |
| Box height (imperial) | 43.4 cm (17.1") |
| Box width (imperial) | 49.4 cm (19.4") |
| Package weight (imperial) | 4.09 kg (9.02 lbs) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Additional accessories | AC Power Cord |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
Technical details
| Specification | Value |
|---|---|
| Cable connection | AC Power in, D-sub |
| Phosphor | P22 |
| Video Dot Rate | 180 MHz |
| Convenience enhancements | Menu Languages On-screen Display |
| Factory preload modes | 16 modes 640 x 480 @ 60 Hz 720 x 400 @ 70 Hz 800 x 600 @ 75 Hz 800 x 600 @ 85 Hz 1024 x 768 @ 75 Hz 1024 x 768 @ 85 Hz 1280 x 1024 @ 75 Hz 1280 x 1024 @ 85 Hz 8 modes |
