VLHDMIMAT4X2RS matrix switcher Scaling matrix switcher
7.5 W
Model VLHDMIMAT4X2RSEAN 5706998972637
40 specifications
- TypeScaling matrix switcher
- Weight860 g
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)7.5 W
Overview
- Type
- Scaling matrix switcher
- Weight
- 860 g
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 7.5 W
- Brand
- Vivolink
- Category
- Matrix Switcher
- Model
- VLHDMIMAT4X2RS
- Part number
- VLHDMIMAT4X2RS
- EAN / UPC
- 5706998972637
- Also known as
- Vivolink VLHDMIMAT4X2RS matrix switcher Scaling matrix switcher 7.5 W
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | Scaling matrix switcher |
| Maximum resolution | 3840 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | PCM |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Control type | Buttons |
| LED indicators | Yes |
| Remote control included | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

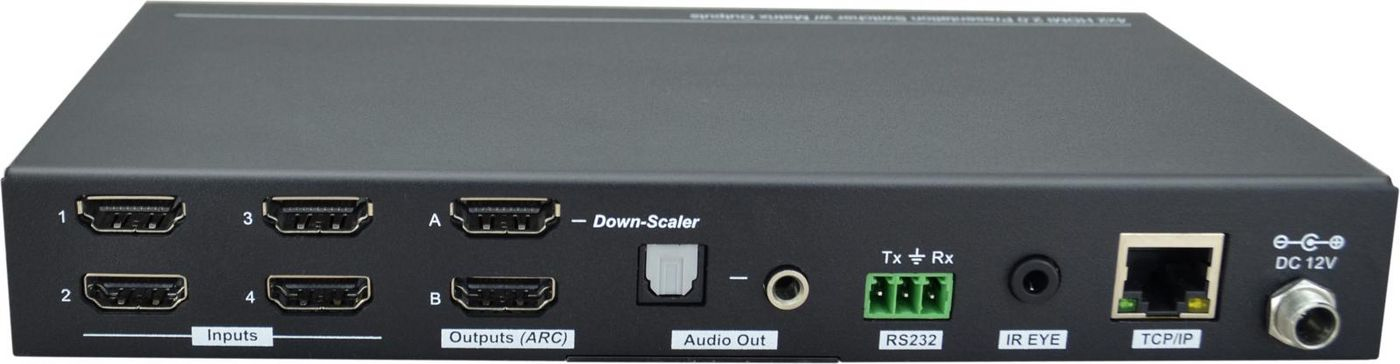

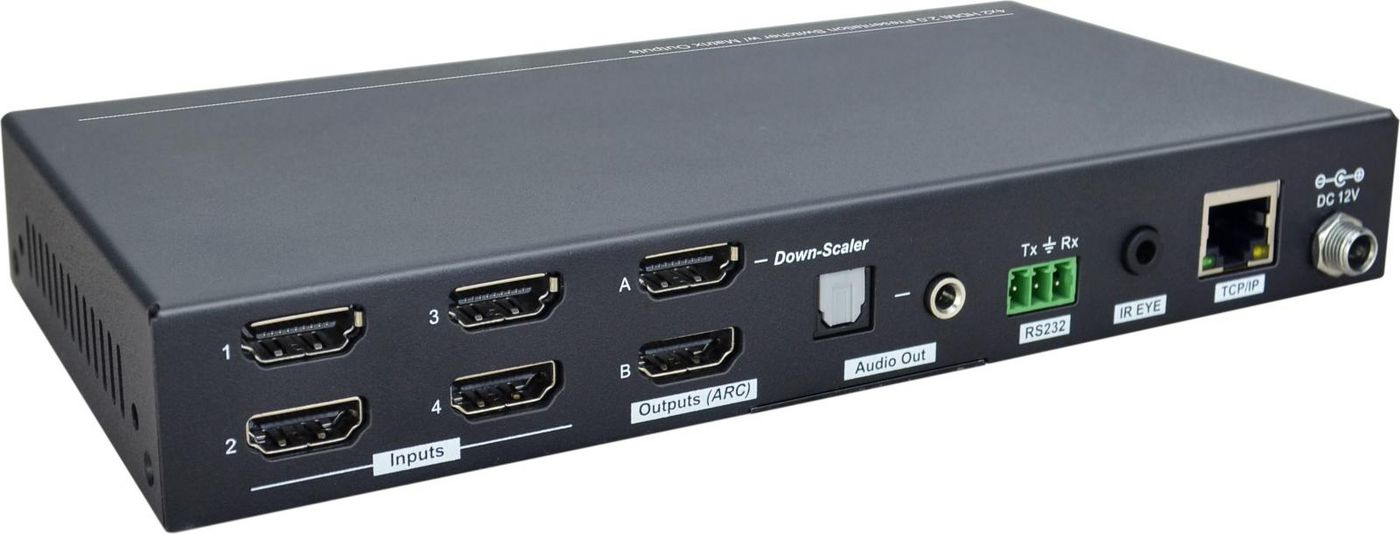

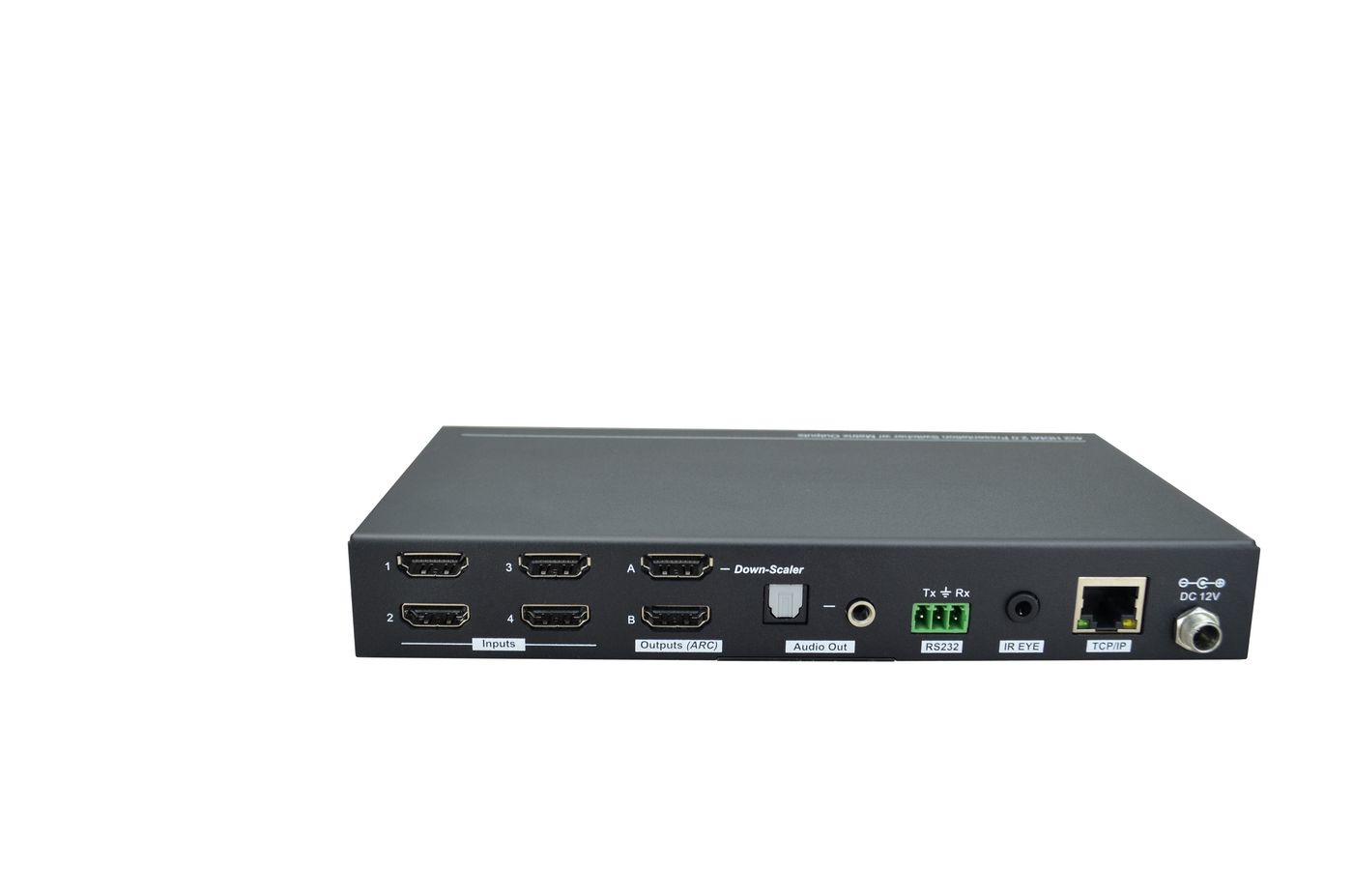

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| Digital audio optical out | 1 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Audio (L/R) out | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 7.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1000 mA |
| Output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 100 mm |
| Height | 28.5 mm |
| Weight | 860 g |
| Package width | 264 mm |
| Package depth | 233 mm |
| Package height | 84 mm |
| Package weight | 1.05 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR sensor |
| Mounting brackets included | No |
| AC adapter included | Yes |
