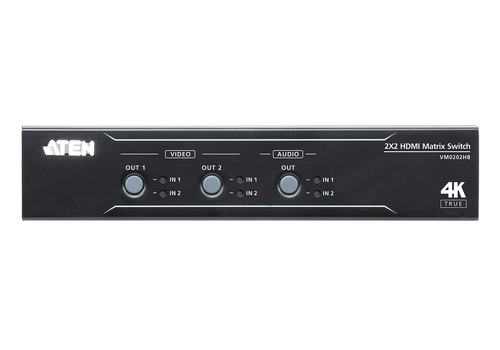

2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
Model VM0202HB-AT-GEAN 4710469340024
48 specifications
- TypeAV matrix switcher
- Weight850 g
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity2
- Power consumption (typical)2.47 W
Overview
- Type
- AV matrix switcher
- Weight
- 850 g
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 2
- Power consumption (typical)
- 2.47 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM0202HB-AT-G
- Part number
- VM0202HB-AT-G
- EAN / UPC
- 4710469340024, 5715063328811
- Also known as
- ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
Specifications
48 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Control type | Buttons |
| LED indicators | Yes |
| Remote control included | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

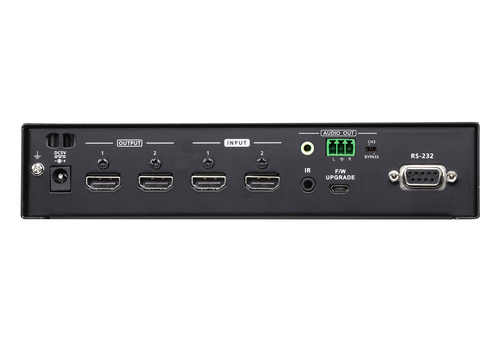

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.47 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 5.25 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case net weight | 4.25 kg |
| Master (outer) case width | 250 mm |
| Products per master (outer) case | 5 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 76 mm |
| Height | 42 mm |
| Weight | 850 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
