ATEN 4 x 2 True 4K Presentation Matrix Switch: Full Specifications

Overview

Type: Scaling matrix switcher
Weight: 1.58 kg
Housing colour: Black
Built-in display: No
HDMI input ports quantity: 2
Power consumption (typical): 14.93 W

Brand: ATEN
Category: Matrix Switcher
Model: VP1421-AT-G
Part number: VP1421-AT-G
EAN / UPC: 672792010880, 4719264649158
Also known as: ATEN 4 x 2 True 4K Presentation Matrix Switch

Specifications

46 specifications in 9 groups

Features

Specification	Value
Product type	Scaling matrix switcher
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	2.2
3D	Yes
High Dynamic Range (HDR) supported	Yes
Extended display identification data (EDID)	Yes

Design

Specification	Value
Housing colour	Black
Housing material	Metal
Control type	Buttons, Rotary
On/off switch	Yes
Remote control included	Yes

Display

Specification	Value
Built-in display	No

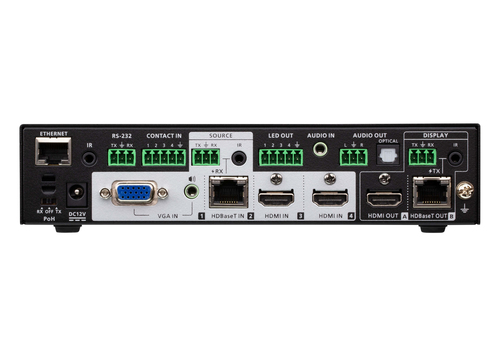

Ports & interfaces

Specification	Value
HDMI input ports quantity	2
HDMI output ports quantity	1
VGA (D-Sub) input ports	1
RJ-45 input ports	1
RJ-45 output ports	1
Ethernet LAN (RJ-45) ports	1
Remote (IR) input	1
Remote (IR) output	1
DC-in jack	Yes

Power

Specification	Value
Power consumption (typical)	14.93 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Heat dissipation	110 BTU/h

Logistics data

Specification	Value
Harmonized System (HS) code	85299097
Master (outer) case gross weight	7.25 kg
Master (outer) case height	232 mm
Master (outer) case length	427 mm
Master (outer) case net weight	4.74 kg
Master (outer) case width	370 mm
Products per master (outer) case	3 pc(s)

Weight & dimensions

Specification	Value
Width	170.1 mm
Depth	200 mm
Height	44 mm
Weight	1.58 kg
Package width	207 mm
Package depth	414 mm
Package height	117 mm
Package weight	2.2 kg

Packaging content

Specification	Value
Manual	Yes
AC adapter included	Yes
IR receiver included	Yes
