ATEN 5 x 2 True 4K Seamless Presentation Matrix…: Full Specifications

Overview

Weight: 3.8 kg
Maximum resolution (HDMI): 4096 x 2160 pixels
Housing colour: Black
Built-in display: No
HDMI input ports quantity: 3
Power consumption (max): 46.7 W

Brand: ATEN
Category: Matrix Switcher
Model: VP3520-AT-E
Part number: VP3520-AT-E
Also known as: ATEN 5 x 2 True 4K Seamless Presentation Matrix Switch with Control

Specifications

49 specifications in 10 groups

Features

Specification	Value
Product type	Media presentation matrix switcher
Maximum resolution (HDMI)	4096 x 2160 pixels
HDCP	Yes
HDCP version	2.2
High Dynamic Range (HDR) supported	Yes
Extended display identification data (EDID)	Yes
Supported resolutions	4096 x 2160, 3840 x 2160, 1920 x 1080, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1024 x 768, 800 x 600, 720 x 400, 640 x 480

Design

Specification	Value
Housing colour	Black
Housing material	Metal
Rack mounting	Yes
Control type	Buttons
Remote control included	Yes
Rubber feet	Yes

Display

Specification	Value
Built-in display	No

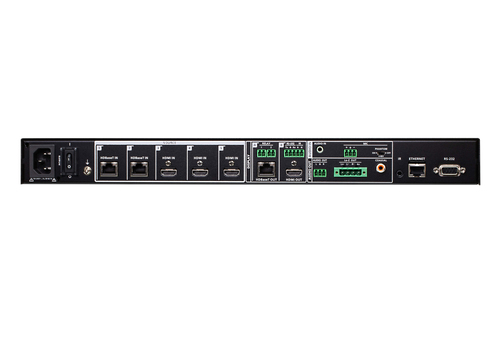

Ports & interfaces

Specification	Value
HDMI input ports quantity	3
HDMI output ports quantity	1
RJ-45 input ports	2
RJ-45 output ports	1
RS-232 ports	2
Analog audio output terminal ports	1
Relay outputs	2

Power

Specification	Value
Power consumption (max)	46.7 W
Power consumption (typical)	45.8 W
AC input voltage	110 - 220 V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Heat dissipation	310 BTU/h
Heat dissipation (max)	314 BTU/h

Logistics data

Specification	Value
Country of origin	Taiwan
Harmonized System (HS) code	85299097
Master (outer) case gross weight	5.46 kg
Master (outer) case height	175 mm
Master (outer) case length	325 mm
Master (outer) case net weight	4.18 kg
Master (outer) case width	250 mm

Technical details

Specification	Value
Package volume	21520.8 cm³

Weight & dimensions

Specification	Value
Width	272.3 mm
Depth	432.4 mm
Height	44 mm
Weight	3.8 kg
Package width	133 mm
Package depth	499 mm
Package height	324 mm
Package weight	5.46 kg

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes
Manual	Yes
IR receiver included	Yes
