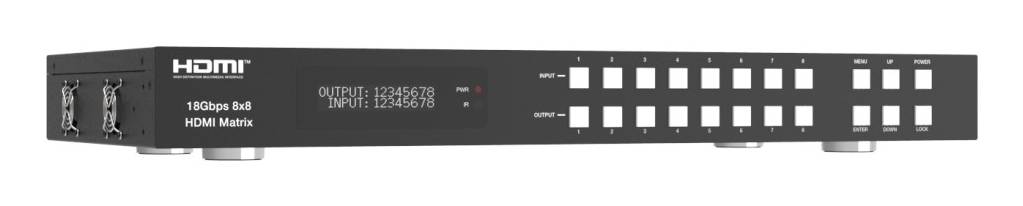

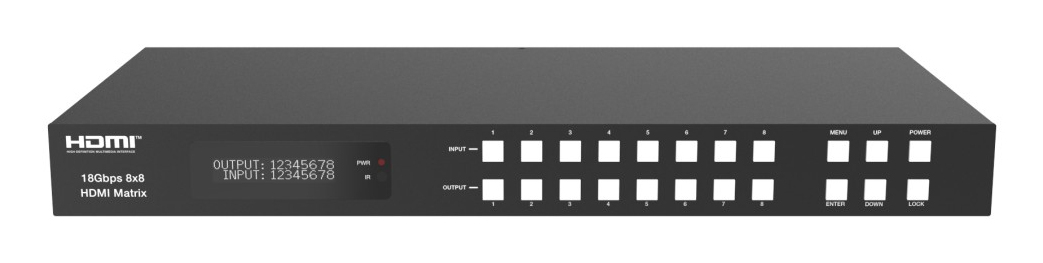

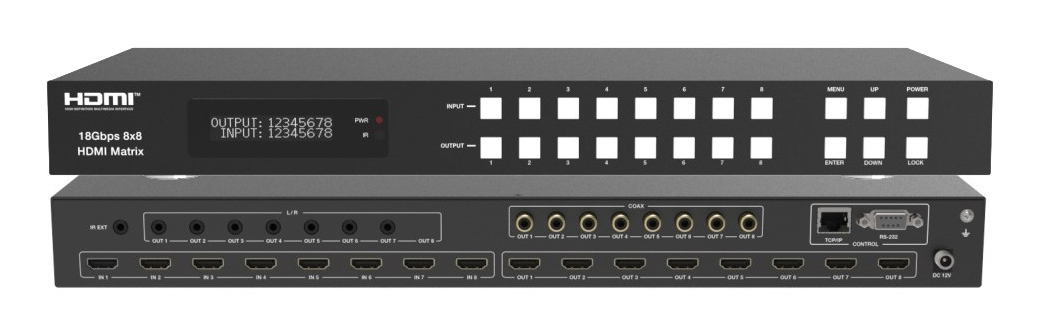

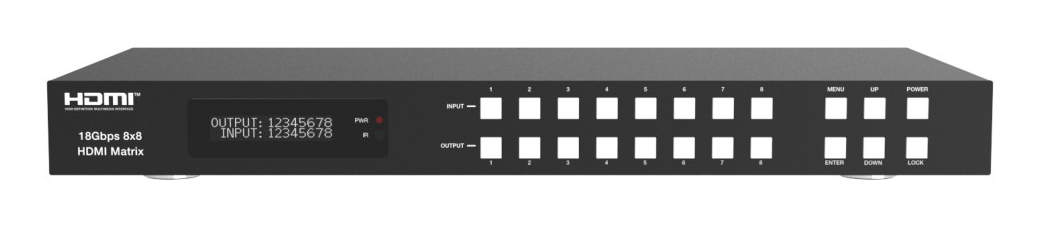

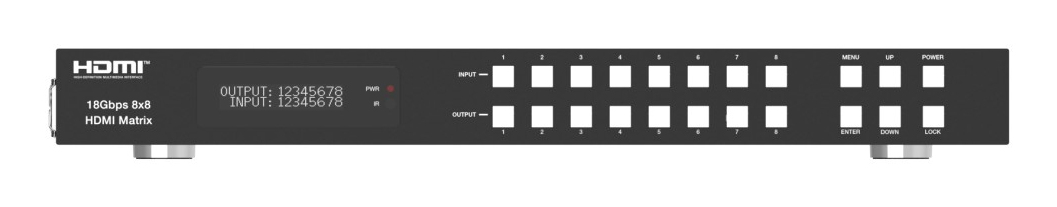

Techly IDATA HDMI-MXB88D: Full Specifications

Overview

Type: AV matrix switcher
Weight: 4.75 kg
Housing colour: Black
Built-in display: Yes
HDMI input ports quantity: 8
Power consumption (max): 43 W

Brand: Techly
Category: Matrix Switcher
Model: IDATA HDMI-MXB88D
Part number: IDATA HDMI-MXB88D
EAN / UPC: 8059018367164
Also known as: Techly IDATA HDMI-MXB88D matrix switcher AV matrix switcher Built-in display 43 W

Specifications

50 specifications in 8 groups

Features

Specification	Value
Product type	AV matrix switcher
Maximum resolution	4096 x 2160 pixels
Bandwidth	18 Gbit/s
Maximum resolution (HDMI)	4096 x 2160 pixels
HDCP	Yes
HDCP version	1.4/2.2
3D	Yes
High Dynamic Range (HDR) supported	Yes
Extended display identification data (EDID)	Yes
EDID management	Yes
Audio formats supported	LPCM, PCM
Supported chroma subsampling	4:4:4, 4:2:0
Supported resolutions	4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz

Design

Specification	Value
Housing colour	Black
Housing material	Metal
Rack mounting	Yes
Rack capacity	1U
Control type	Buttons
LED indicators	Yes
Remote control included	Yes
Certification	EC

Display

Specification	Value
Built-in display	Yes
Display type	OLED

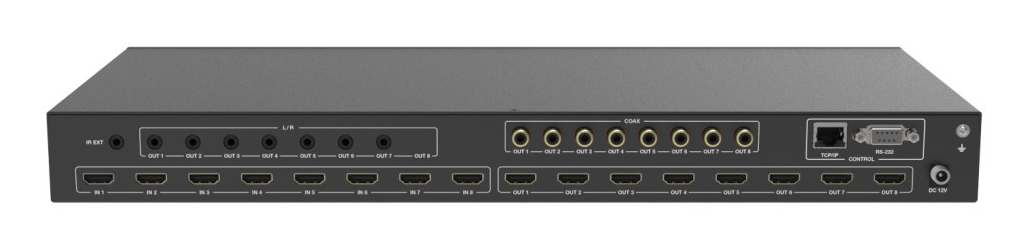

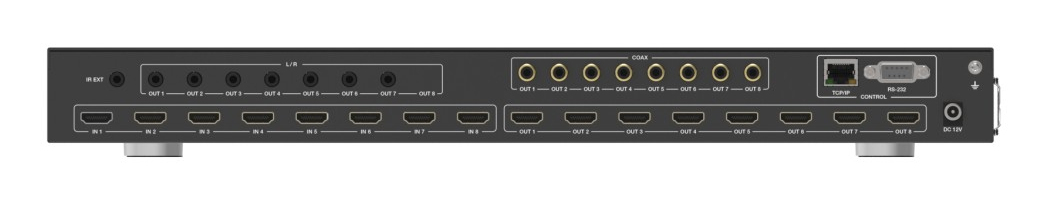

Ports & interfaces

Specification	Value
HDMI input ports quantity	8
HDMI output ports quantity	8
HDMI version	2.1b
RJ-45 input ports	1
Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
Audio (L/R) out	8
Digital audio coaxial out	8
Remote (IR) input	1
DC-in jack	Yes

Power

Specification	Value
Power consumption (max)	43 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output current	5000 mA
Output voltage	12 V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	200 mm
Height	44.5 mm
Weight	4.75 kg
Package type	Box

Packaging content

Specification	Value
Cables included	IR, RS-232
Manual	Yes
Mounting brackets included	Yes
AC adapter included	Yes
