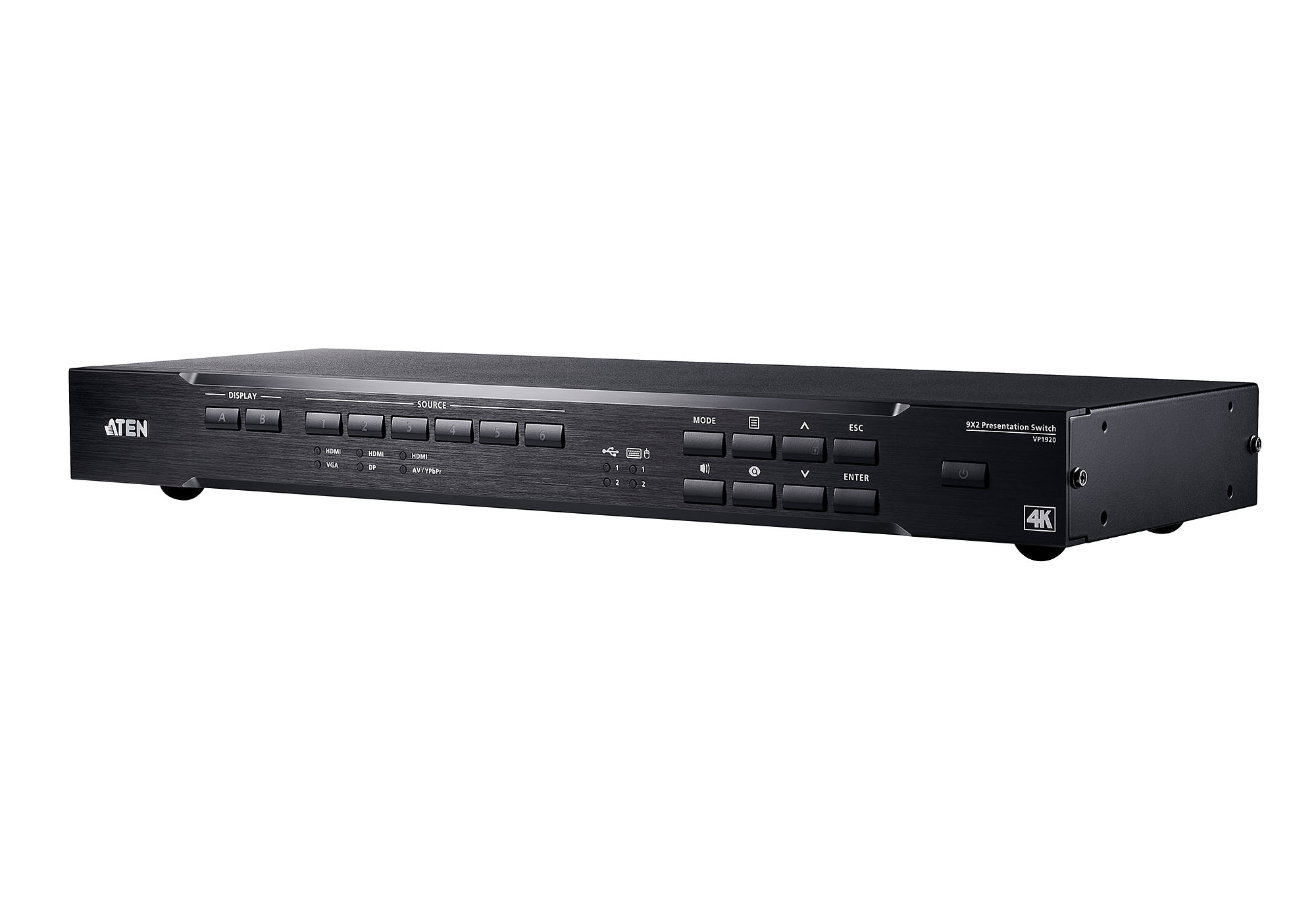

ATEN 9 x 2 Video Presentation Switch: Full Specifications

Overview

Weight: 2.5 kg
Maximum resolution: 4096 x 2160 pixels
Housing colour: Black
Built-in display: No
HDMI input ports quantity: 6
Power consumption (typical): 7.3 W

Brand: ATEN
Category: Matrix Switcher
Model: VP1920-AT-G
Part number: VP1920-AT-G
EAN / UPC: 4719264646089
Also known as: ATEN 9 x 2 Video Presentation Switch

Specifications

50 specifications in 9 groups

Features

Specification	Value
Product type	Media presentation matrix switcher
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	1.4
3D	Yes
Extended display identification data (EDID)	Yes
Supported resolutions	4096 x 2160, 3840 x 2160, 1920 x 1200

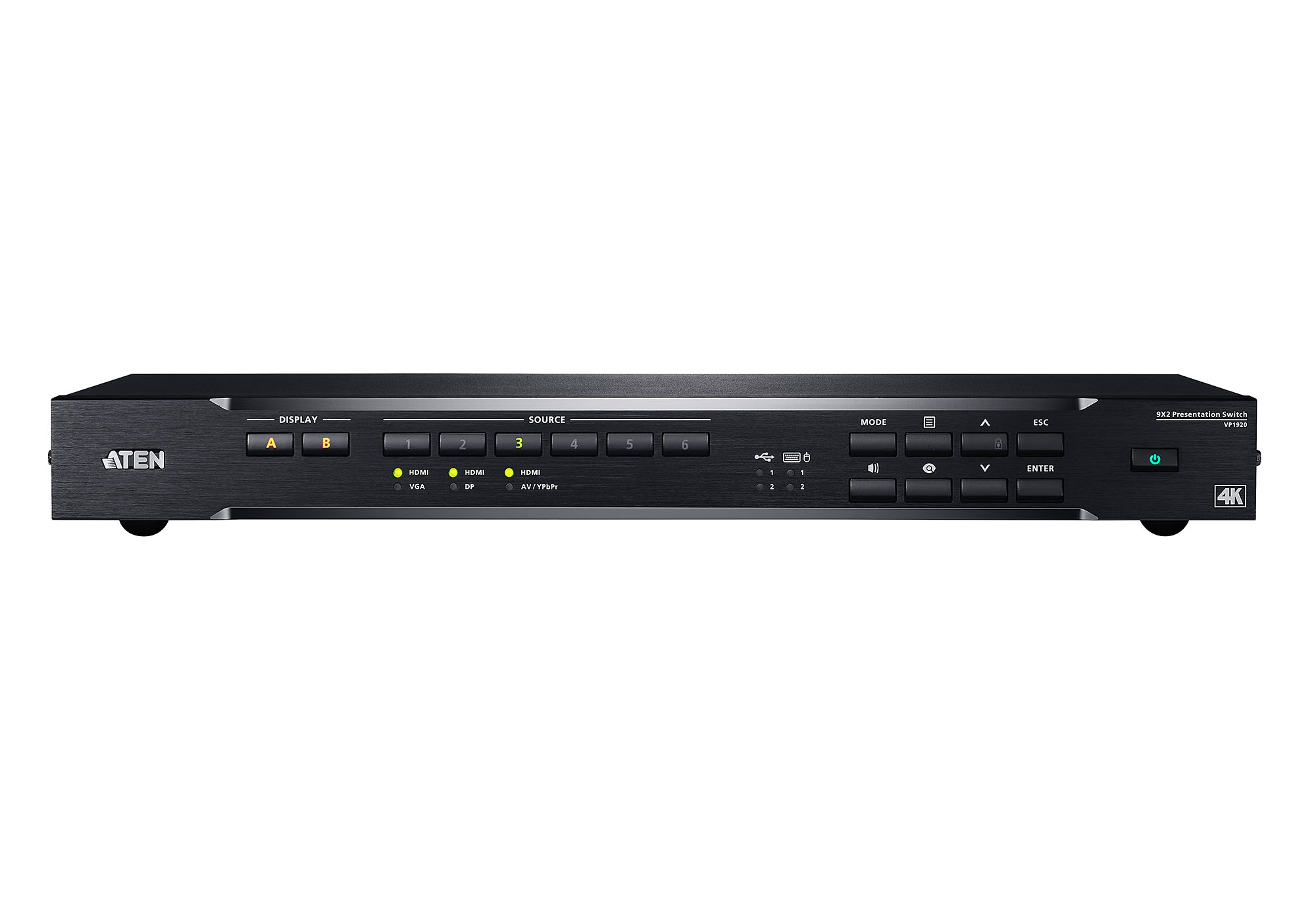

Design

Specification	Value
Housing colour	Black
Housing material	Metal
LED indicators	Yes
On/off switch	Yes
Remote control included	Yes

Display

Specification	Value
Built-in display	No

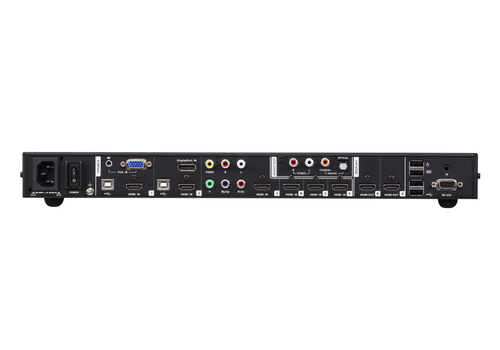

Ports & interfaces

Specification	Value
HDMI input ports quantity	6
HDMI output ports quantity	2
VGA (D-Sub) input ports	1
DisplayPorts in	1
Composite video in	1
Digital audio optical out	1
USB connector type	USB Type-A, USB Type-B
USB ports quantity	6
RS-232 ports	1
Audio (L/R) out	1

Power

Specification	Value
Power consumption (typical)	7.3 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Input current	1 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Heat dissipation	60 BTU/h

Logistics data

Specification	Value
Harmonized System (HS) code	85299097
Master (outer) case gross weight	10.3 kg
Master (outer) case height	258 mm
Master (outer) case length	565 mm
Master (outer) case net weight	7.5 kg
Master (outer) case width	420 mm
Products per master (outer) case	3 pc(s)

Weight & dimensions

Specification	Value
Width	437.2 mm
Depth	163.6 mm
Height	44 mm
Weight	2.5 kg
Package width	131 mm
Package depth	540 mm
Package height	233 mm
Package weight	3.21 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes
IR receiver included	Yes
