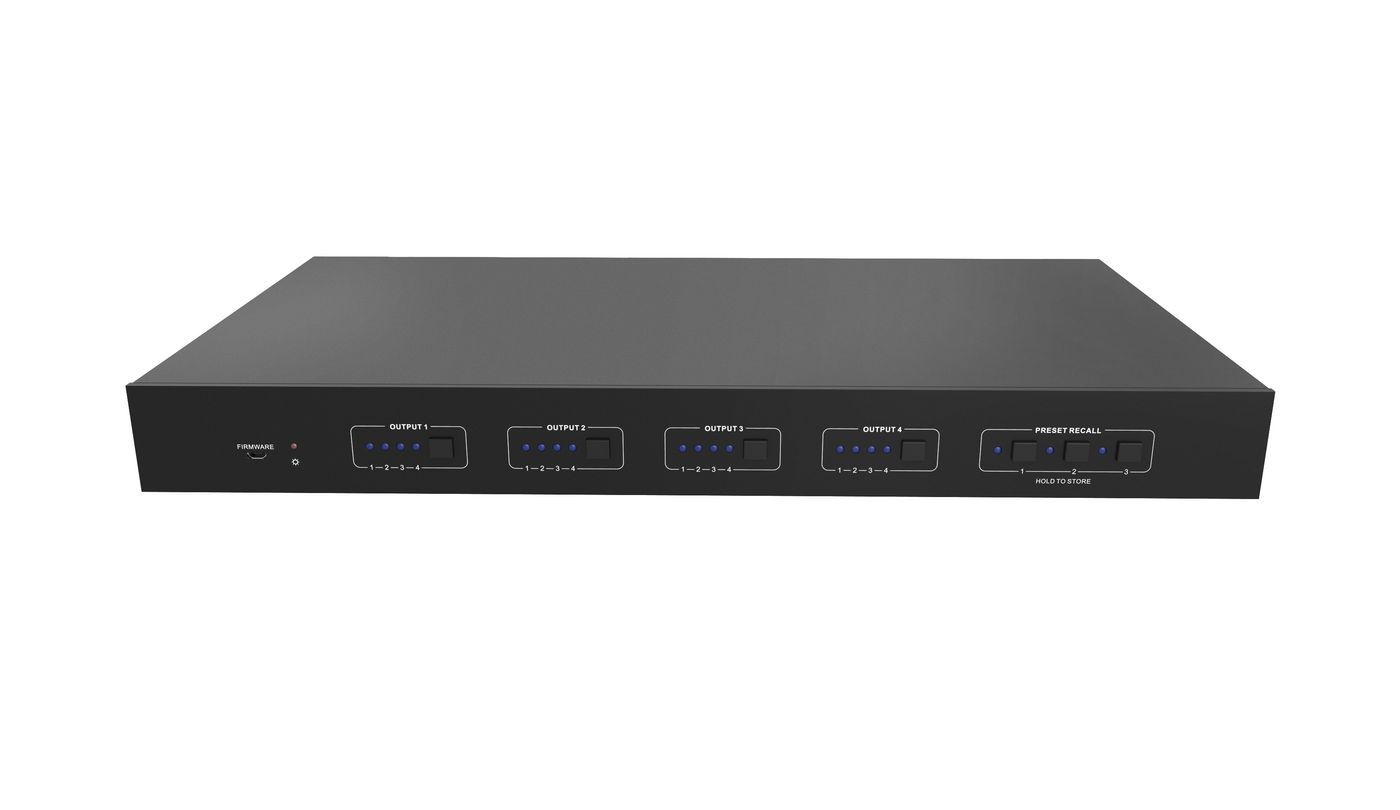

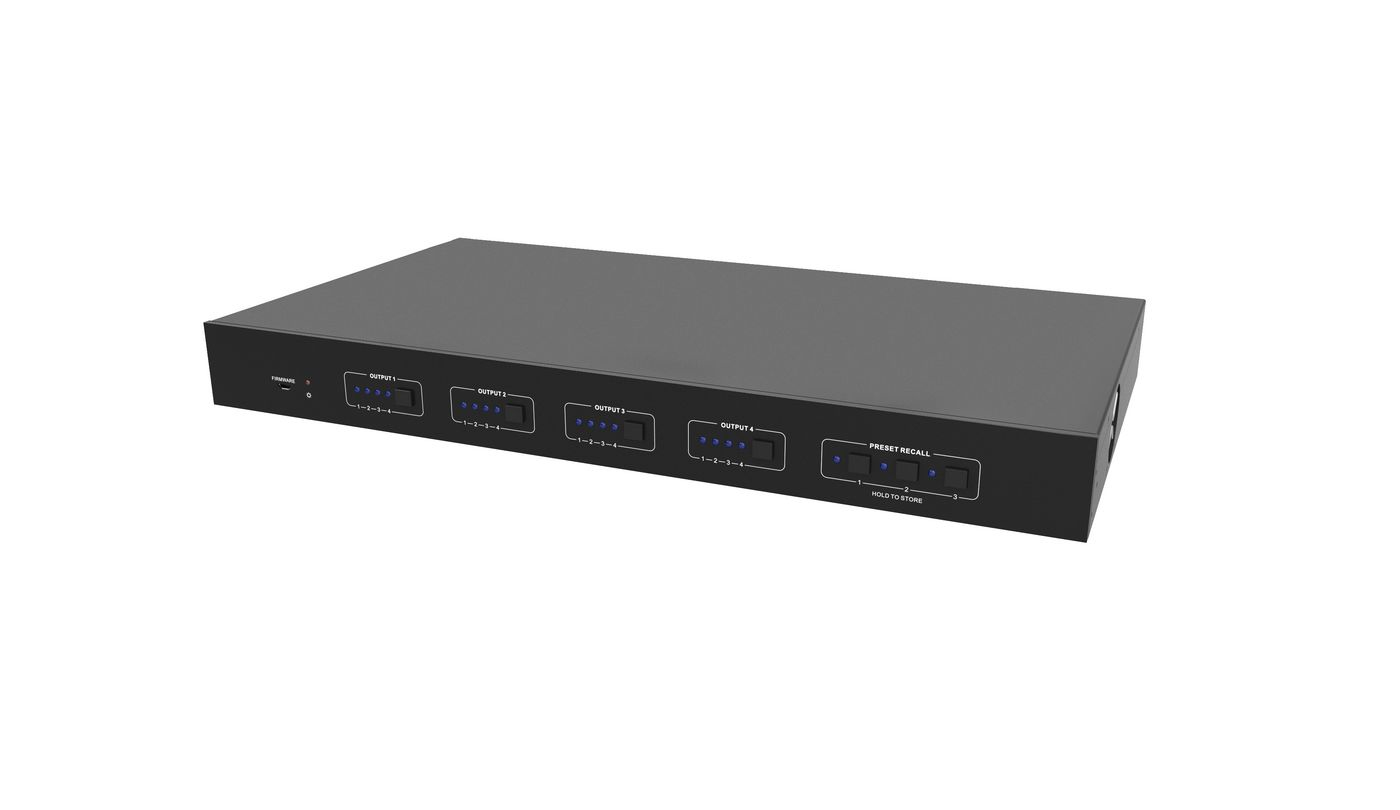

VLHDMIMAT4X431 matrix switcher AV matrix switcher
58 W
Model VLHDMIMAT4X431EAN 5704174240525
49 specifications
- TypeAV matrix switcher
- Weight1.8 kg
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)58 W
Overview
- Type
- AV matrix switcher
- Weight
- 1.8 kg
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 58 W
- Brand
- Vivolink
- Category
- Matrix Switcher
- Model
- VLHDMIMAT4X431
- Part number
- VLHDMIMAT4X431
- EAN / UPC
- 5704174240525
- Also known as
- Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Specifications
49 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum resolution | 4096 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| Audio channels | 7.1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | PCM |
| Supported chroma subsampling | 4:4:4 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Control type | Buttons |
| LED indicators | Yes |
| Remote control included | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

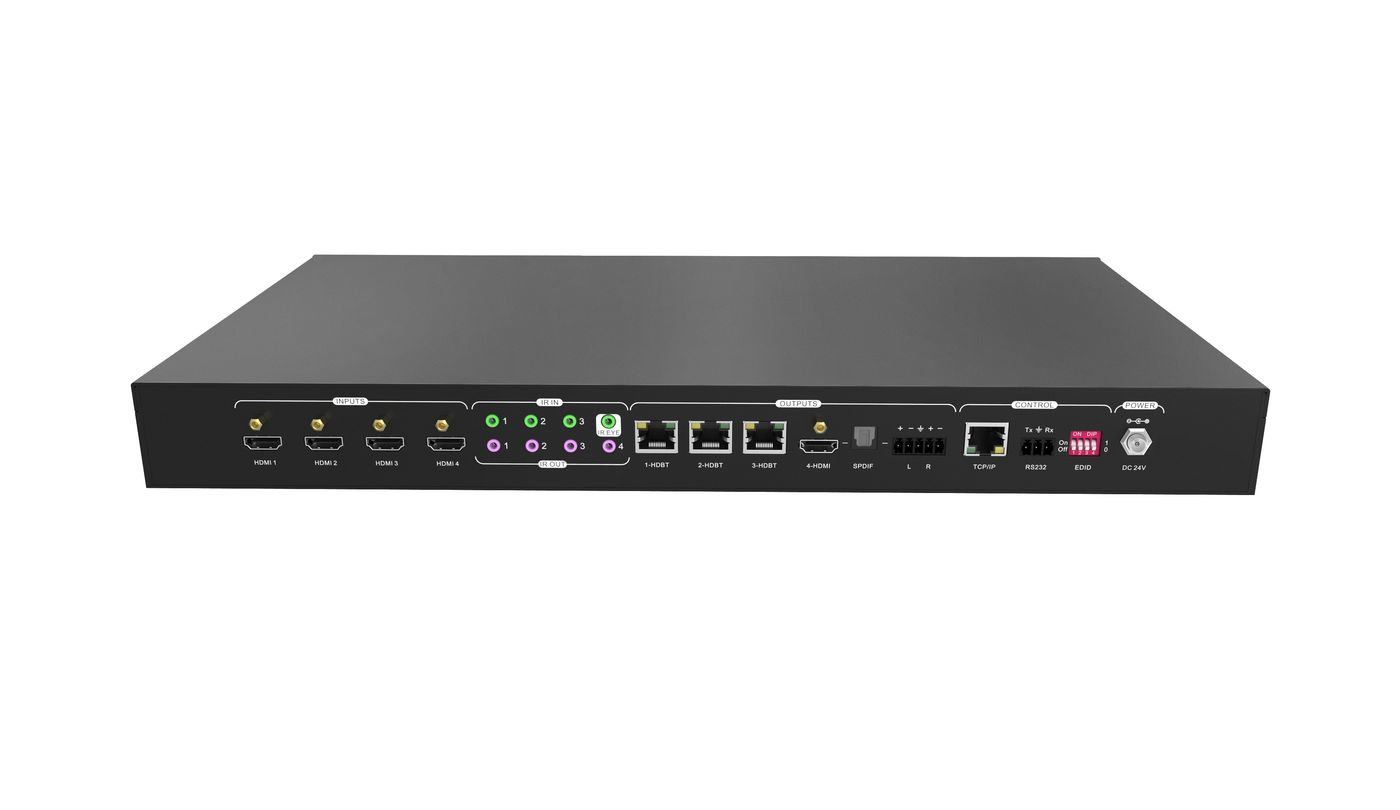

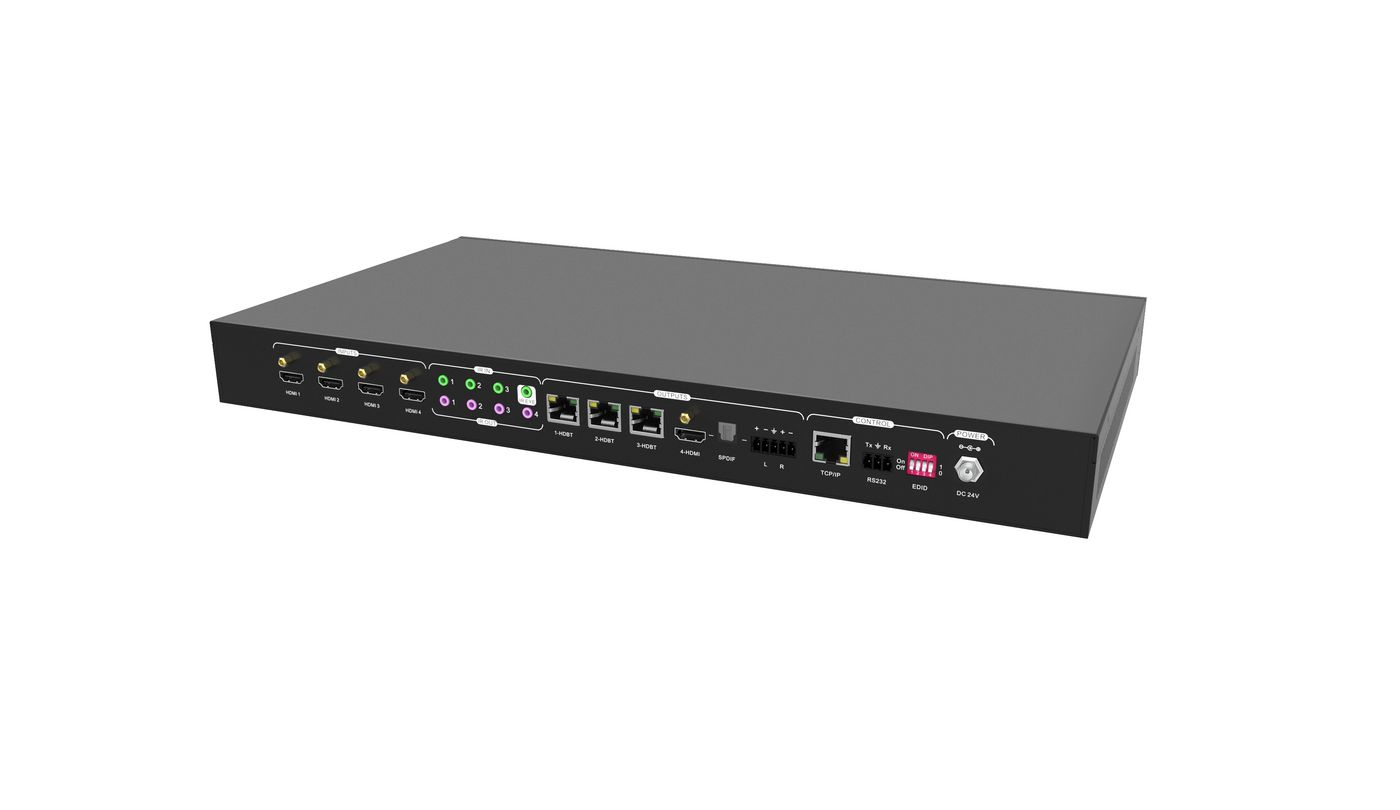

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 3 |
| Digital audio optical out | 1 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| RS-232 ports | 1 |
| Audio (L/R) out | 1 |
| Analog audio output terminal ports | 1 |
| Remote (IR) input | 4 |
| Remote (IR) output | 4 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 58 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 2710 mA |
| Output voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 436.4 mm |
| Depth | 236.5 mm |
| Height | 44 mm |
| Weight | 1.8 kg |
| Package weight | 1.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR sensor |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
