Cybex SCM185
Model Cybex SCM185Part no. SCM185-001EAN 636430087252
24 specifications
- TypeAV matrix switcher
- Weight2.5 kg
- Housing colourBlack
- Built-in displayNo
- DVI-I ports quantity10
- AC input voltage100 - 240 V
Overview
- Type
- AV matrix switcher
- Weight
- 2.5 kg
- Housing colour
- Black
- Built-in display
- No
- DVI-I ports quantity
- 10
- AC input voltage
- 100 - 240 V
- Brand
- Vertiv
- Category
- Matrix Switcher
- Model
- Cybex SCM185
- Part numbers
- SCM185-001, SCM185-202, SCM185-201
- EAN / UPC
- 636430087252, 636430087221, 636430087269
- Also known as
- Vertiv Cybex SCM185 AV matrix switcher
Specifications
24 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum resolution | 2560 x 1600 pixels |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Control type | Buttons |
| LED indicators | Yes |
| Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

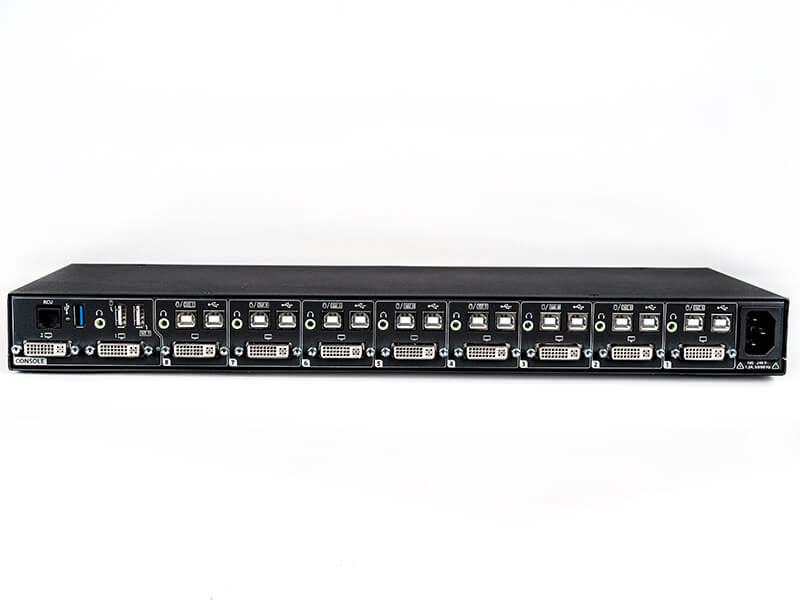

Ports & interfaces
| Specification | Value |
|---|---|
| DVI-I ports quantity | 10 |
| DVI-I input ports | 8 |
| DVI-I output ports | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB ports quantity | 19 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 185 mm |
| Height | 43 mm |
| Weight | 2.5 kg |
