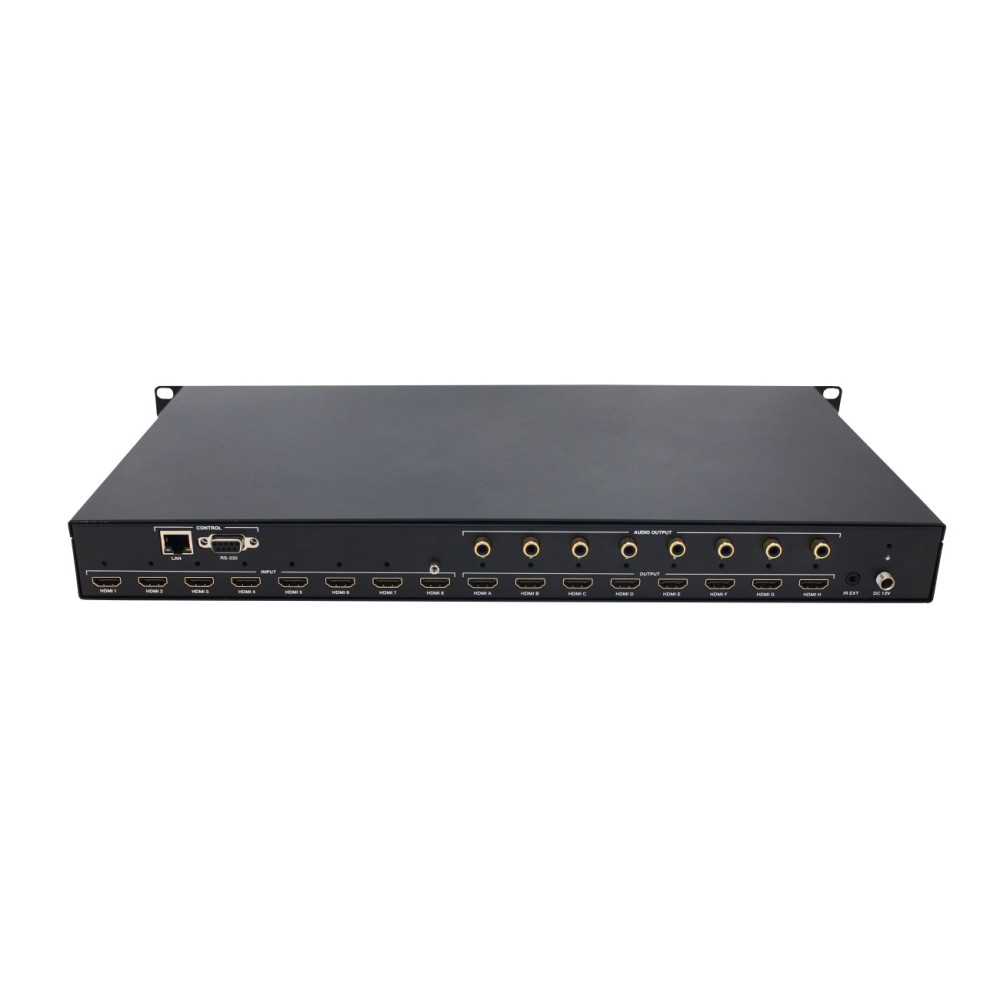

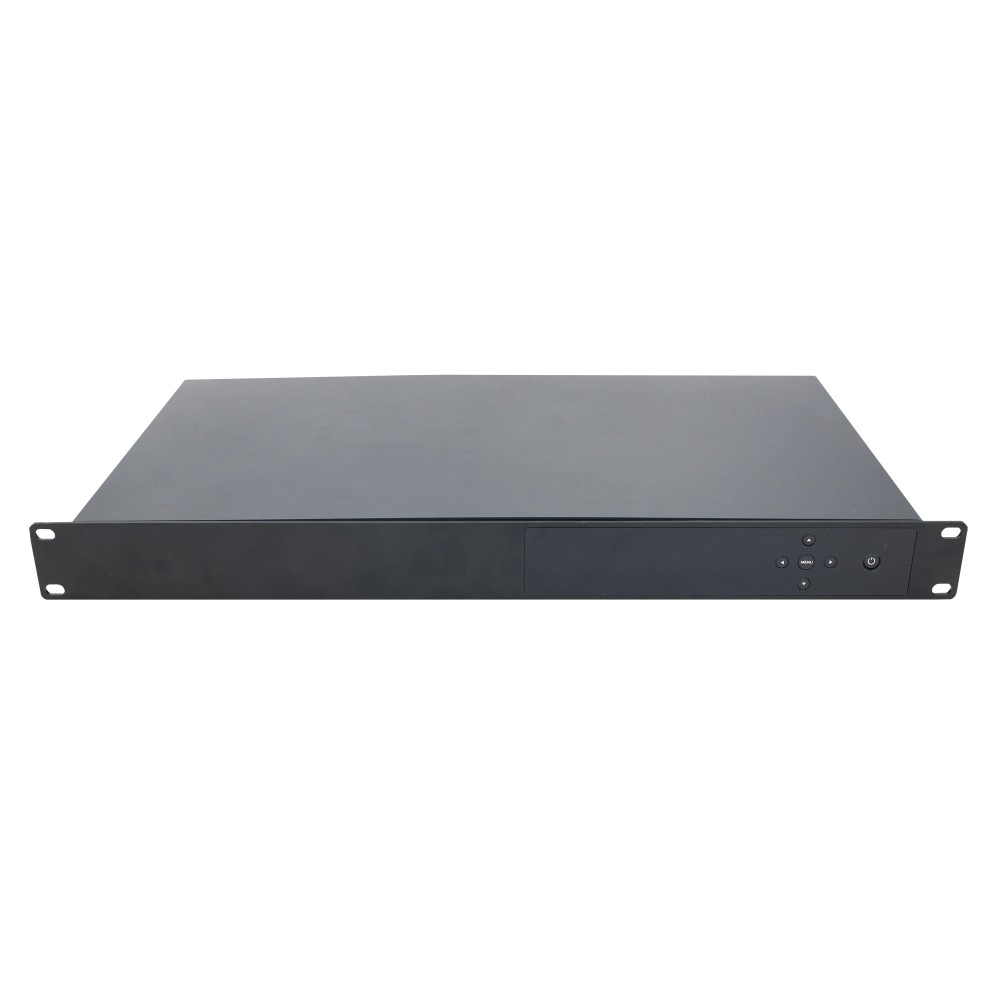

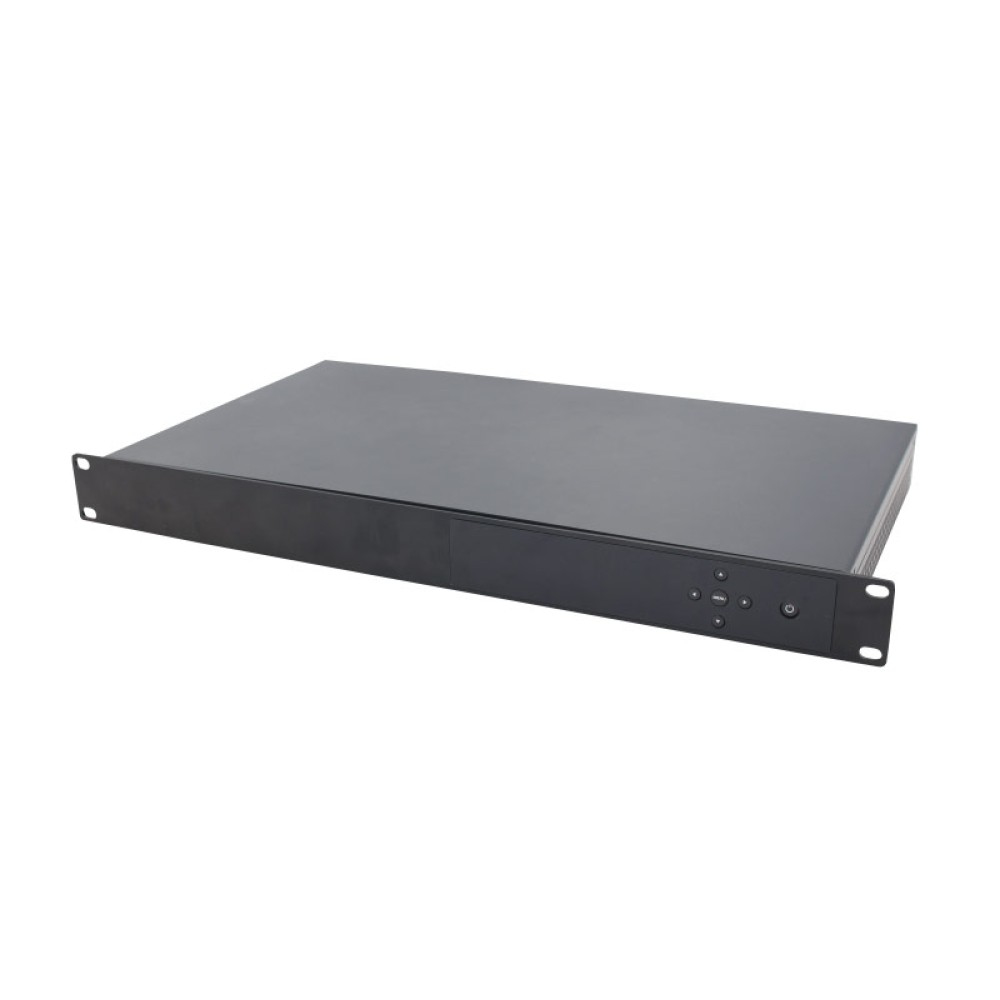

IDATA HDMI-MXB88
Model IDATA HDMI-MXB88EAN 8051128107739
39 specifications
- TypeAV matrix switcher
- Weight4.72 kg
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity8
- Power consumption (max)26.5 W
Overview
- Type
- AV matrix switcher
- Weight
- 4.72 kg
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 8
- Power consumption (max)
- 26.5 W
- Brand
- Techly
- Category
- Matrix Switcher
- Model
- IDATA HDMI-MXB88
- Part number
- IDATA HDMI-MXB88
- EAN / UPC
- 8051128107739
- Also known as
- Techly 8x8 HDMI Matrix Switch 4K@60HZ
Specifications
39 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Certification | CE/FCC/UL |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| HDMI version | 2.0b |
| RJ-45 input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 26.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 45 mm |
| Weight | 4.72 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
