IDATA HDMI-MX944G
Model IDATA HDMI-MX944GEAN 8051128106206
29 specifications
- TypeScaling matrix switcher
- Weight3.83 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity4
- Operating temperature (T-T)-5 - 51 °C
Overview
- Type
- Scaling matrix switcher
- Weight
- 3.83 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 4
- Operating temperature (T-T)
- -5 - 51 °C
- Brand
- Techly
- Category
- Matrix Switcher
- Model
- IDATA HDMI-MX944G
- Part number
- IDATA HDMI-MX944G
- EAN / UPC
- 8051128106206
- Also known as
- Techly 4X4 4K @ 60Hz HDMI Matrix Switch with Scaler Function
Specifications
29 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Scaling matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |

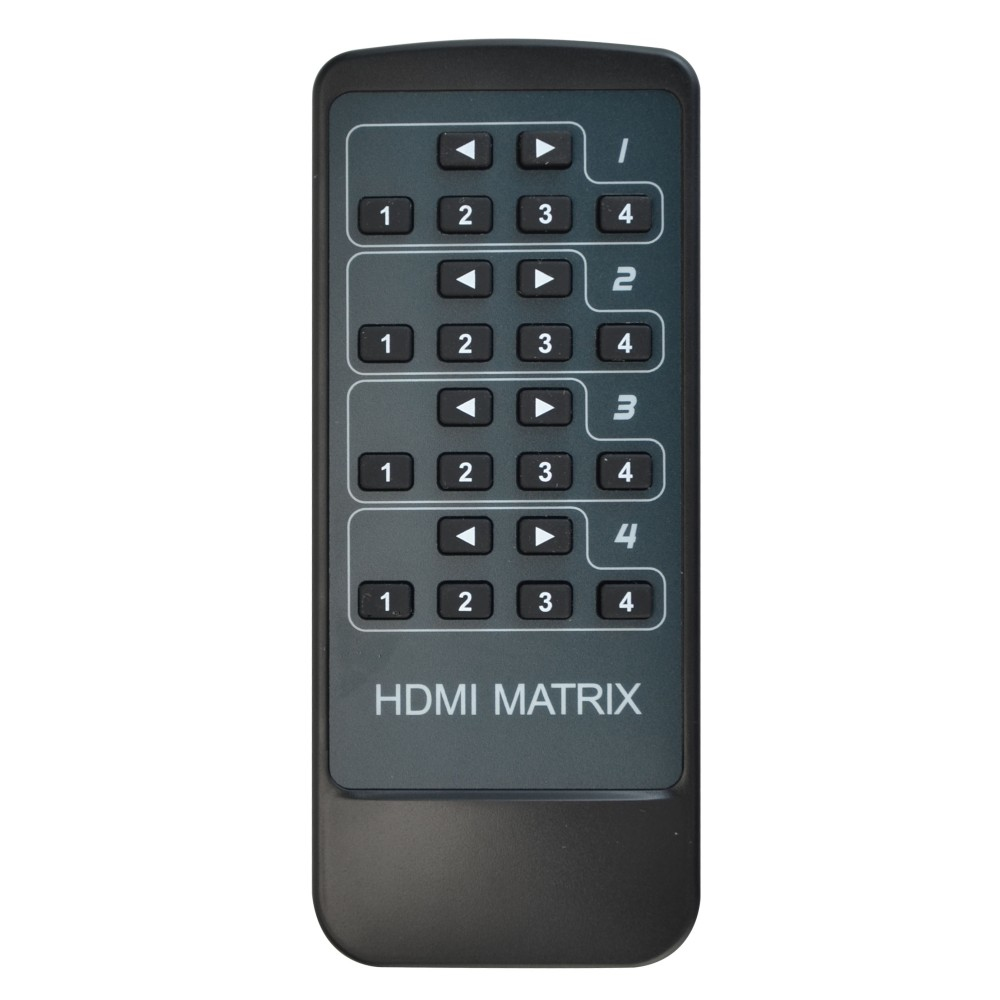

| Remote control included | Yes |
| Certification | CE, WEEE |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| RJ-45 output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Audio (L/R) out | 4 |
| Remote (IR) input | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 51 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441.3 mm |
| Depth | 256 mm |
| Height | 50.8 mm |
| Weight | 3.83 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
