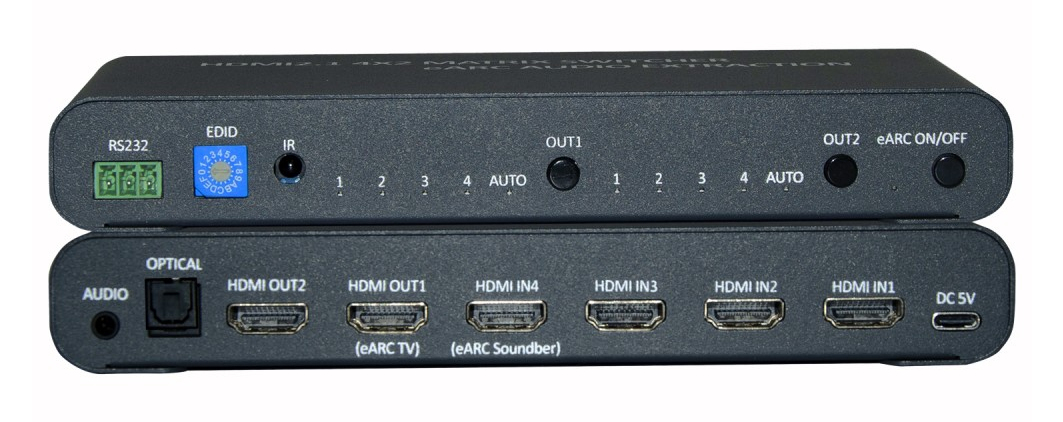

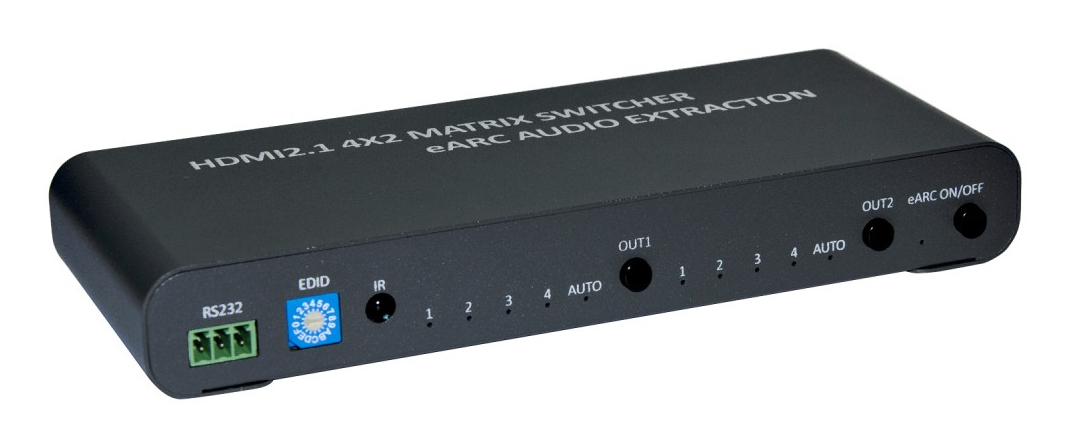

IDATA HDMI-MX428KA
Model IDATA HDMI-MX428KAEAN 8059018366631
38 specifications
- TypeAV matrix switcher
- Weight525 g
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)4 W
Overview
- Type
- AV matrix switcher
- Weight
- 525 g
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 4 W
- Brand
- Techly
- Category
- Matrix Switcher
- Model
- IDATA HDMI-MX428KA
- Part number
- IDATA HDMI-MX428KA
- EAN / UPC
- 8059018366631
- Also known as
- Techly IDATA HDMI-MX428KA matrix switcher AV matrix switcher 4 W
Specifications
38 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 10 Gbit/s |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
| Supported resolutions | 4Kx2K@120Hz, 8Kx4K@60Hz |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Remote control included | Yes |
| Certification | EC, FCC , RoHS |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.1 |
| Digital audio optical out | 1 |
| USB connector type | USB Type-C |
| RS-232 ports | 1 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 4 W |
| Output current | 1000 mA |
| Output voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -15 - 55 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 80 mm |
| Height | 21 mm |
| Weight | 525 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|

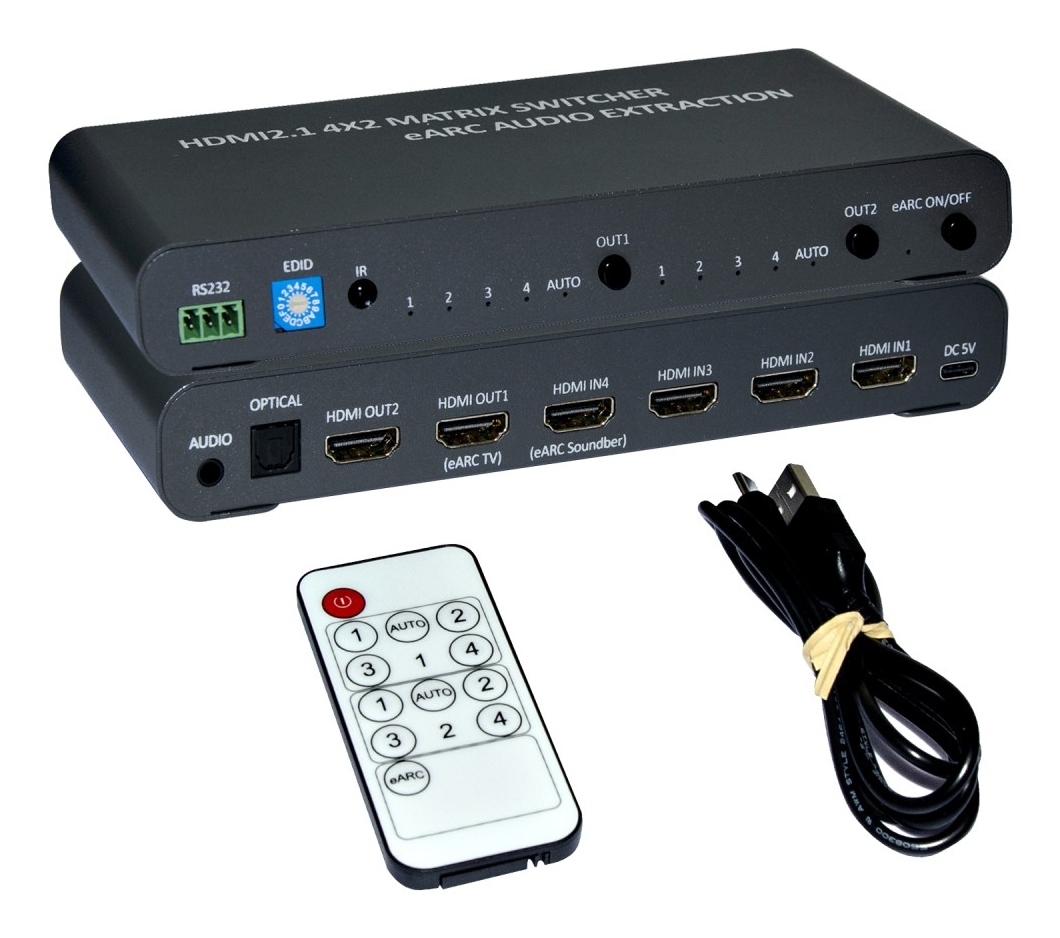

| Cables included | USB |
| Manual | Yes |
| AC adapter included | Yes |
