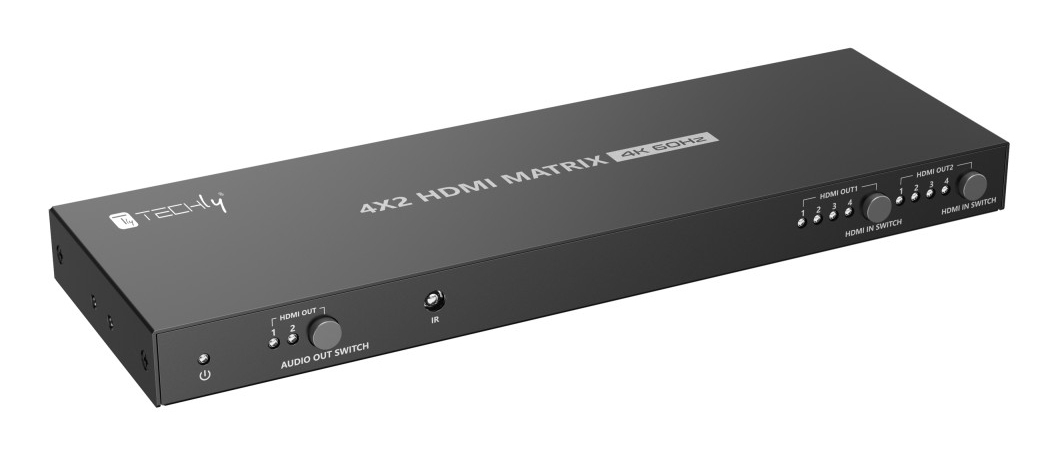

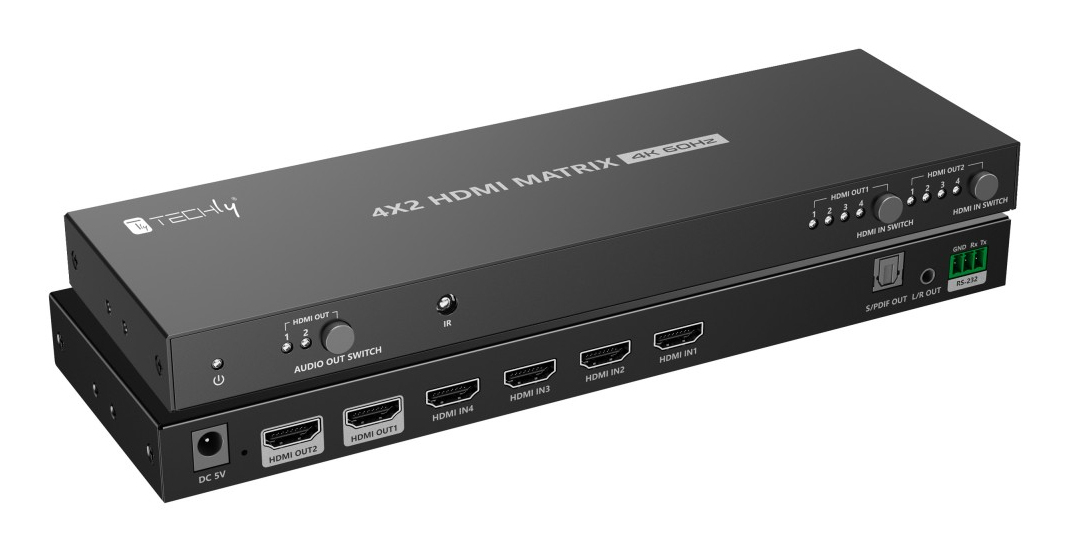

IDATA HDMI-MX422
Model IDATA HDMI-MX422EAN 8059018369472
35 specifications
- TypeAV matrix switcher
- Weight914 g
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)4 W
Overview
- Type
- AV matrix switcher
- Weight
- 914 g
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 4 W
- Brand
- Techly
- Category
- Matrix Switcher
- Model
- IDATA HDMI-MX422
- Part number
- IDATA HDMI-MX422
- EAN / UPC
- 8059018369472
- Also known as
- Techly IDATA HDMI-MX422 matrix switcher AV matrix switcher 4 W
Specifications
35 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Supported resolutions | 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50@60Hz, 1080i@50@60Hz, 1080P@50@60Hz, 3840x2160@24@25@30@50@60Hz; 4096x2160@24 @25 @30 @50 @60Hz |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Remote control included | Yes |
| Certification | EC, FCC , RoHS |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

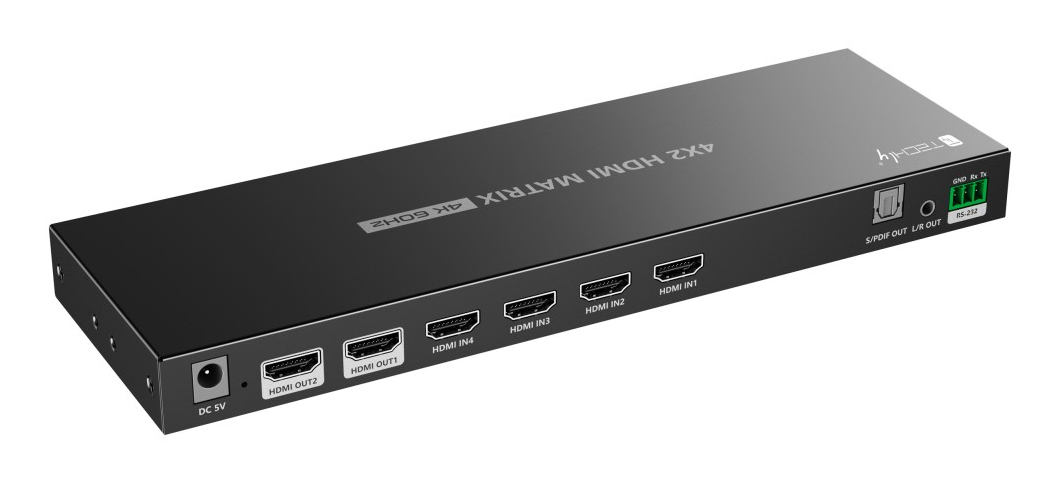

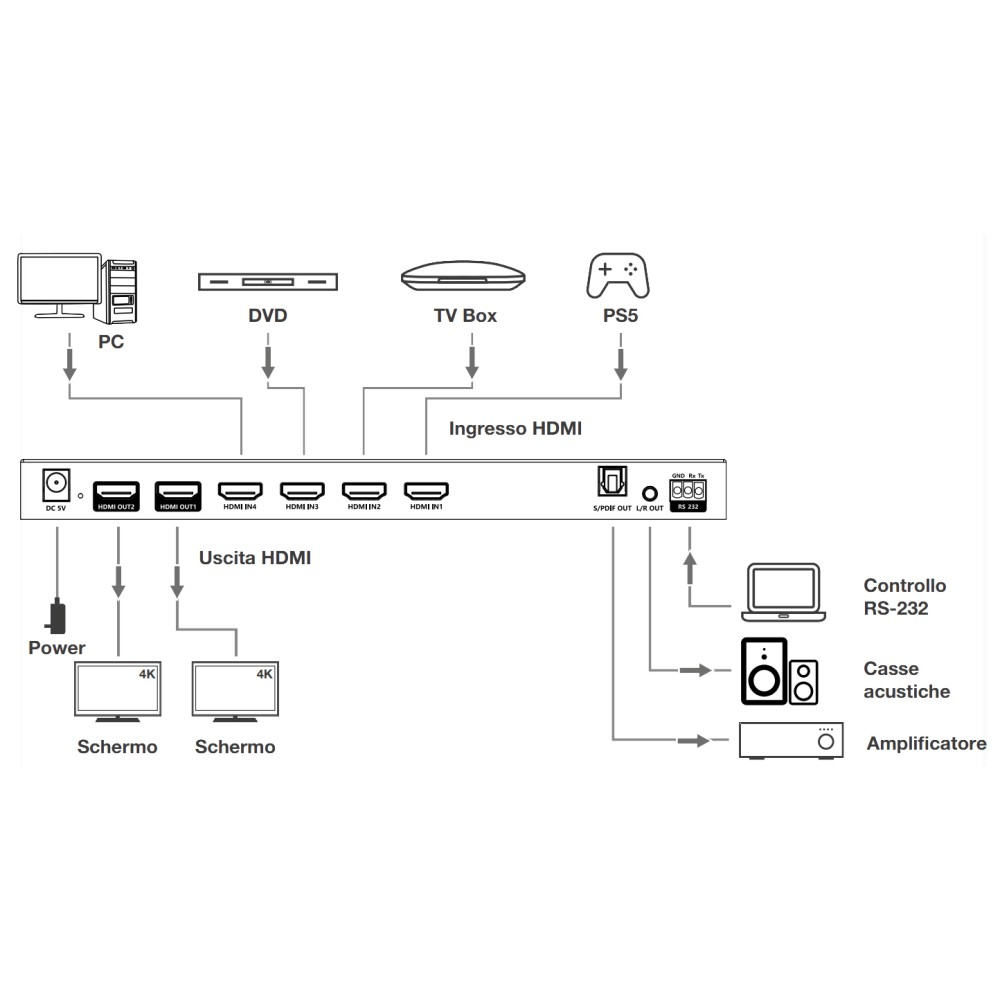

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.0 |
| Digital audio optical out | 1 |
| USB connector type | USB Type-C |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 4 W |
| Output current | 1000 mA |
| Output voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 80 mm |
| Height | 21 mm |
| Weight | 914 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
