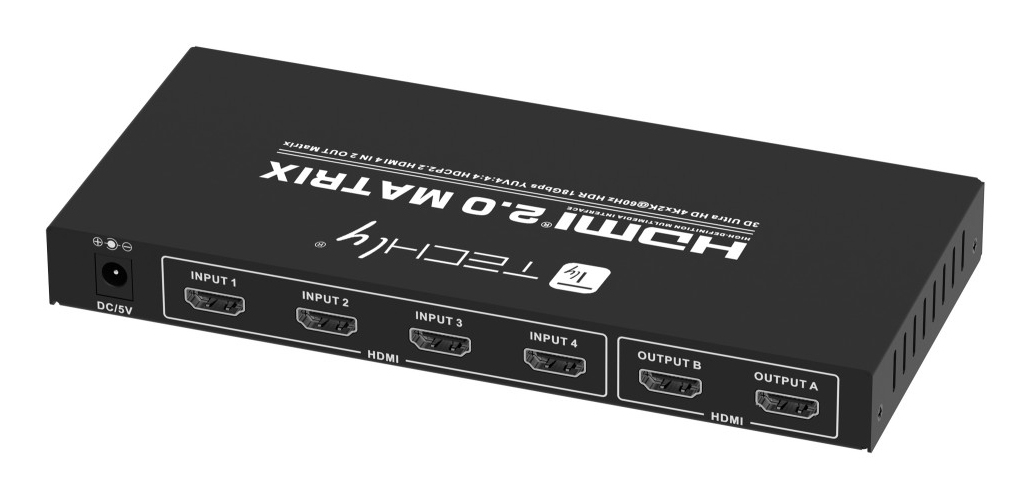

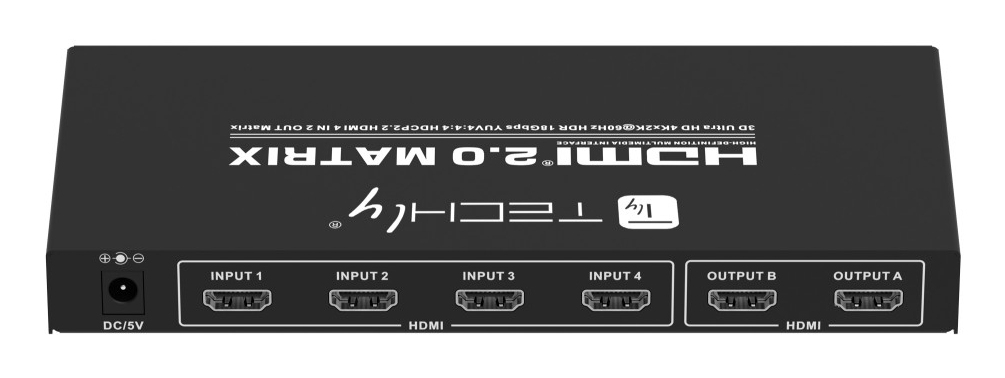

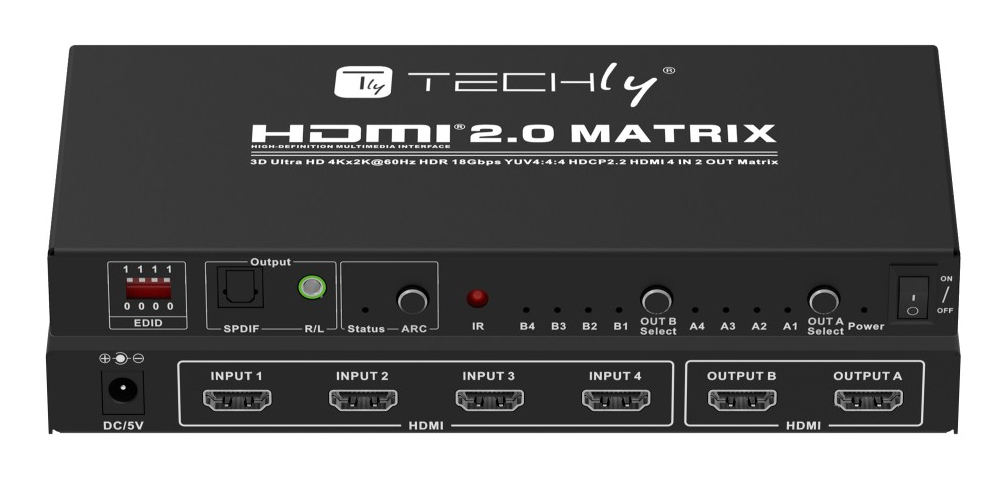

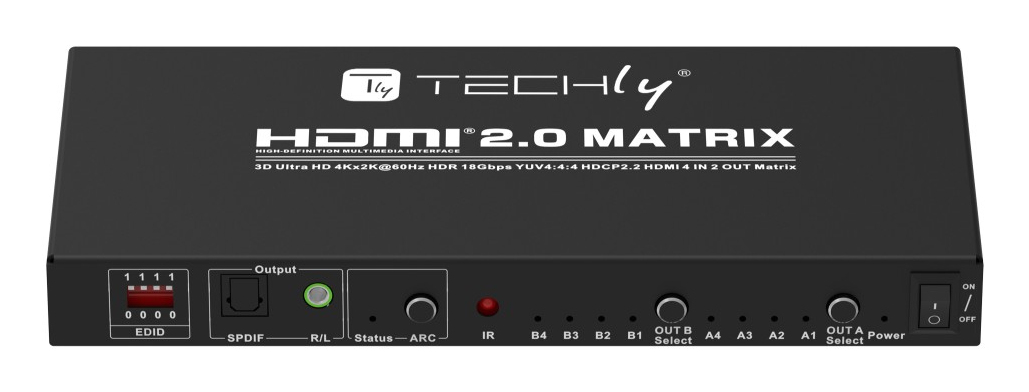

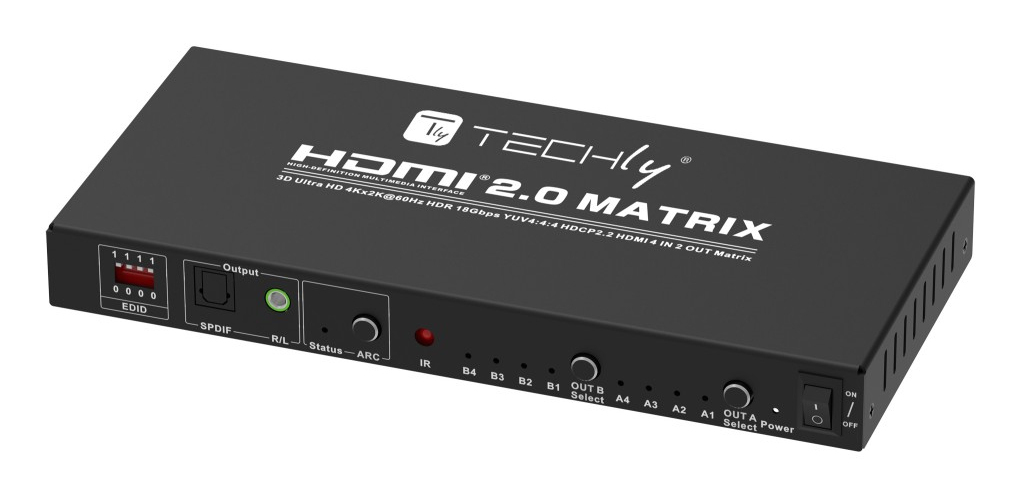

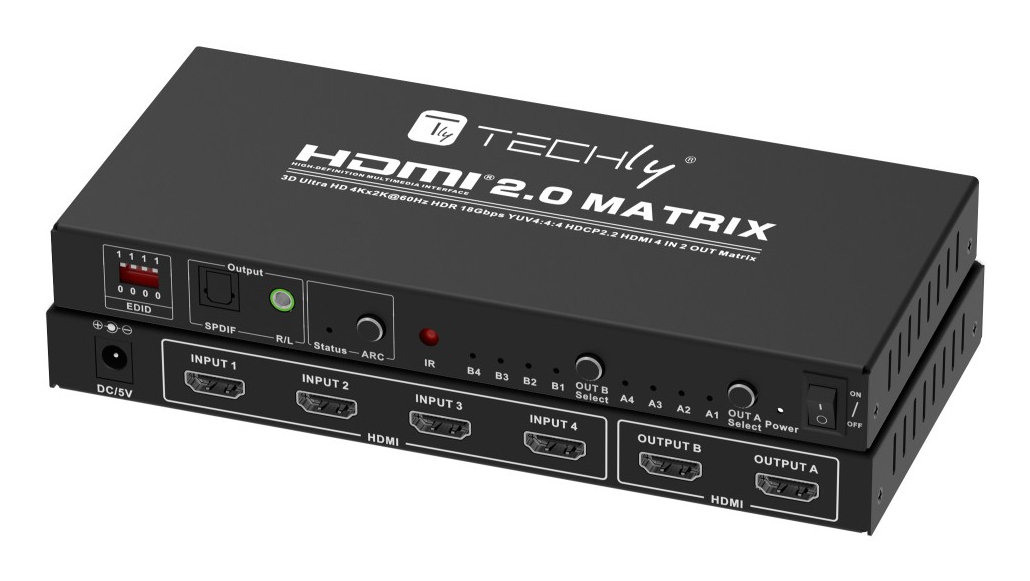

IDATA HDMI-H42C
Model IDATA HDMI-H42CEAN 8059018363883
31 specifications
- TypeAV matrix switcher
- Weight698 g
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)6.5 W
Overview
- Type
- AV matrix switcher
- Weight
- 698 g
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 6.5 W
- Brand
- Techly
- Category
- Matrix Switcher
- Model
- IDATA HDMI-H42C
- Part number
- IDATA HDMI-H42C
- EAN / UPC
- 8059018363883
- Also known as
- Techly IDATA HDMI-H42C matrix switcher AV matrix switcher 6.5 W
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Control type | Buttons |
| LED indicators | Yes |
| On/off switch | Yes |
| Remote control included | Yes |
| Certification | EC RoHS |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| HDMI version | 1.4 |
| Digital audio optical out | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 6.5 W |
| Power supply location | External |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 94 mm |
| Height | 21.5 mm |
| Weight | 698 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
