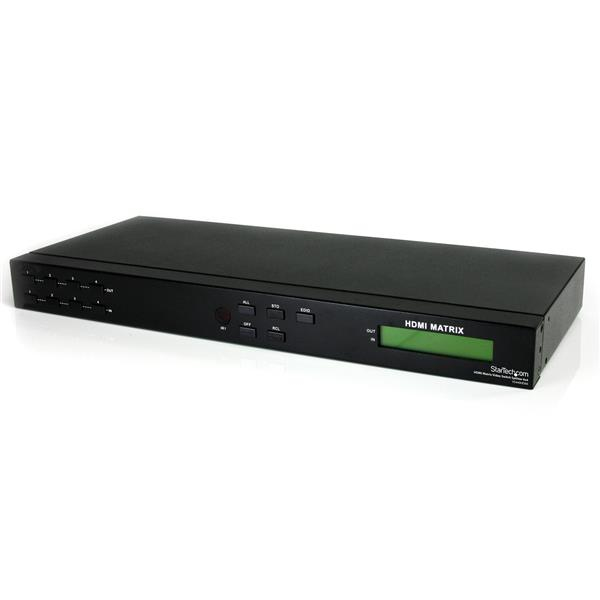

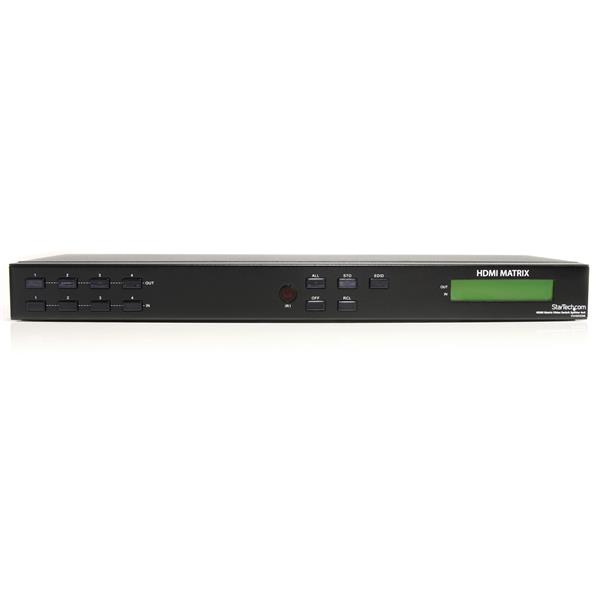

4x4 HDMI Matrix Video Switch Splitter with Audio and RS232
Model VS440HDMIEAN 5054629258347
37 specifications
- TypeAV matrix switcher
- Weight2.4 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity4
- Power consumption (typical)18 W
Overview
- Type
- AV matrix switcher
- Weight
- 2.4 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 4
- Power consumption (typical)
- 18 W
- Brand
- StarTech.com
- Category
- Matrix Switcher
- Model
- VS440HDMI
- Part number
- VS440HDMI
- EAN / UPC
- 5054629258347, 065030842105, 100177284552, 132018278277 +10 more
- Also known as
- StarTech.com 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232
Specifications
37 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum resolution | 1920 x 1200 pixels |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, TAA, REACH |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |

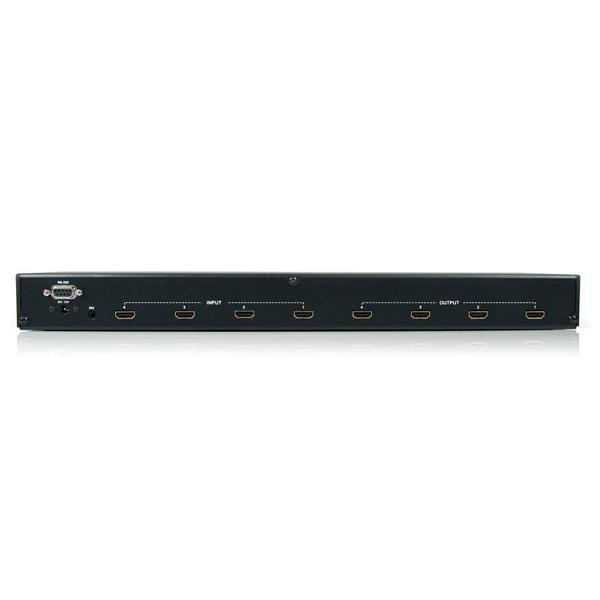

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output current | 1500 mA |
| Output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 440 mm |
| Height | 42 mm |
| Weight | 2.4 kg |
| Package width | 263 mm |
| Package depth | 581 mm |
| Package height | 90 mm |
| Package weight | 3.1 kg |

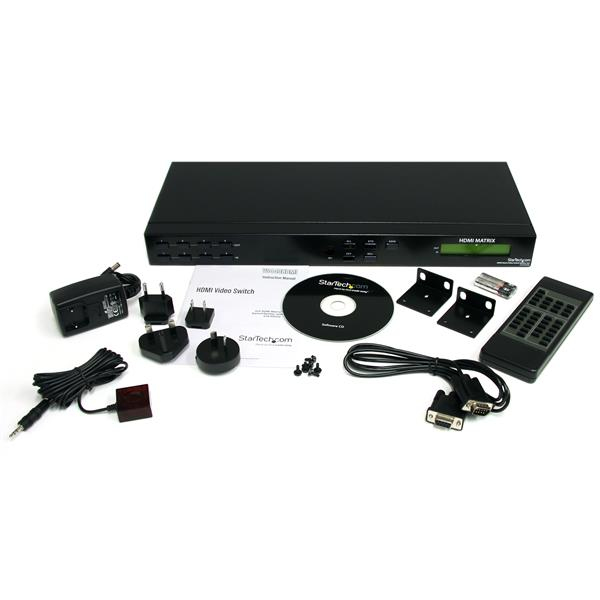

Packaging content
| Specification | Value |
|---|---|
| Cables included | RS-232 |
| Rack mount kit | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Screws included | Yes |
| Number of screws | 6 |
| Included power plug types | AU, EU, UK, US |
| IR extender included | Yes |
