HD0049 matrix switcher AV matrix switcher
5 W
Model HD0049EAN 4052792062472
31 specifications
- TypeAV matrix switcher
- Weight340 g
- Housing colourBlack
- HDMI input ports quantity4
- Power consumption (max)5 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Type
- AV matrix switcher
- Weight
- 340 g
- Housing colour
- Black
- HDMI input ports quantity
- 4
- Power consumption (max)
- 5 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LogiLink
- Category
- Matrix Switcher
- Model
- HD0049
- Part number
- HD0049
- EAN / UPC
- 4052792062472
- Also known as
- LogiLink HD0049 matrix switcher AV matrix switcher 5 W
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Bandwidth | 6 Gbit/s |
| Audio channels | 7.1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Remote Input Control Over DDC (RICOD) | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| LED indicators | Yes |

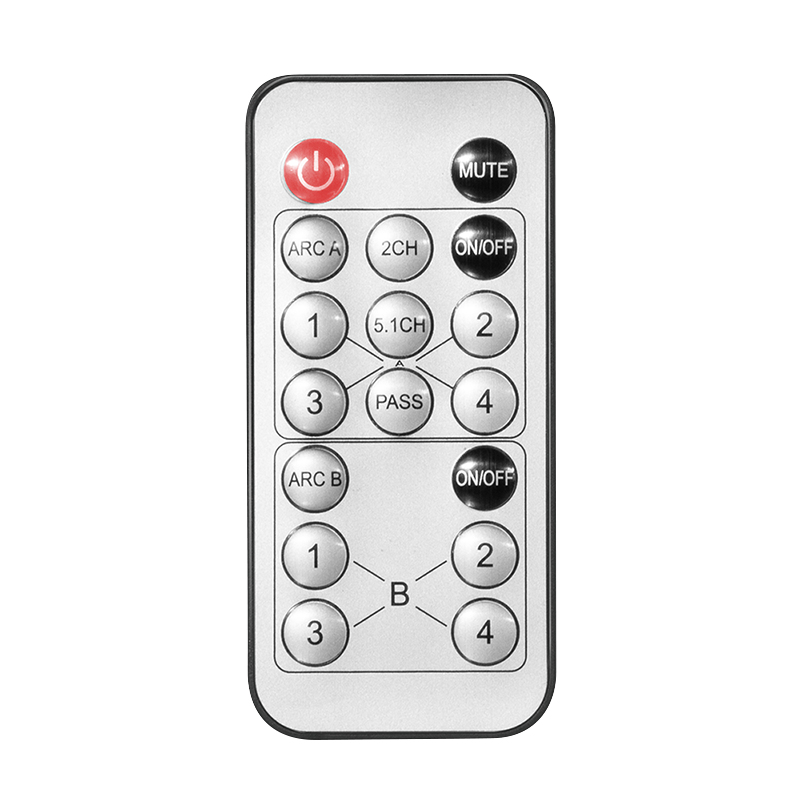

| Remote control included | Yes |

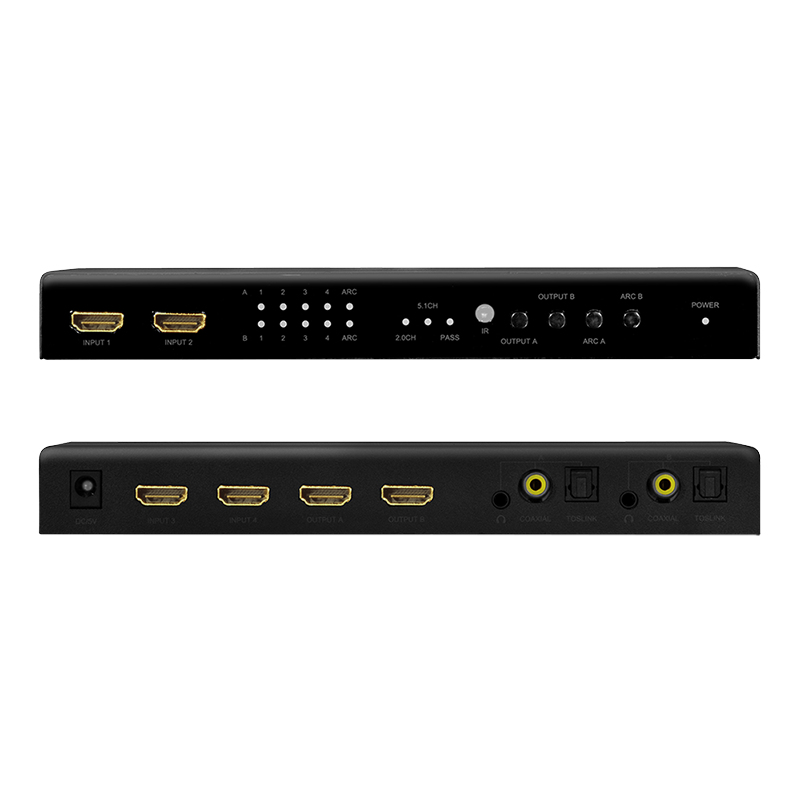

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.0 |
| Digital audio optical out | 2 |
| Digital audio coaxial in | 2 |
| Audio (L/R) out | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 66 mm |
| Height | 26 mm |
| Weight | 340 g |

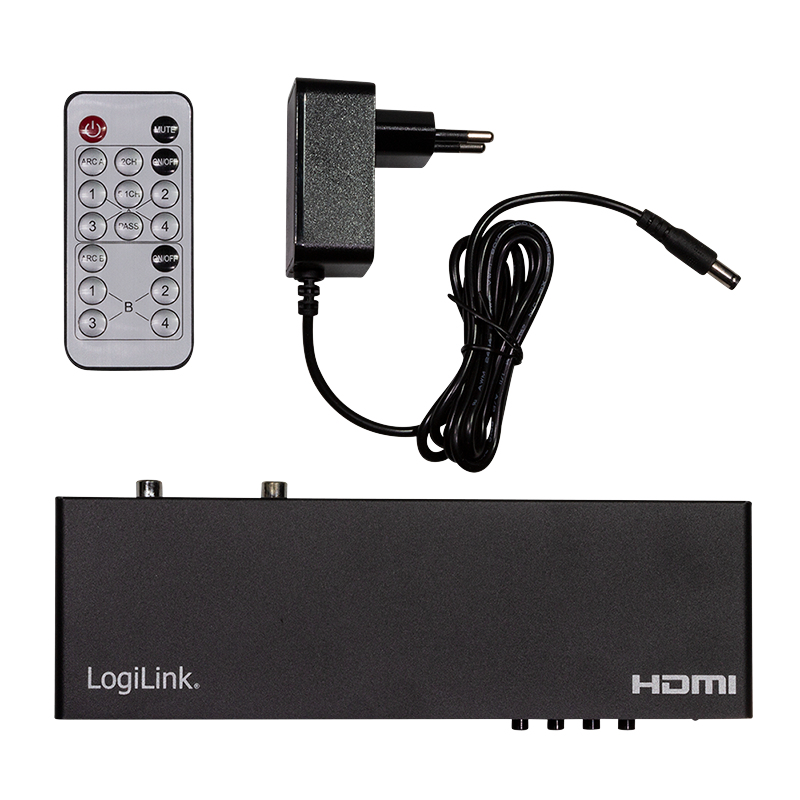

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
