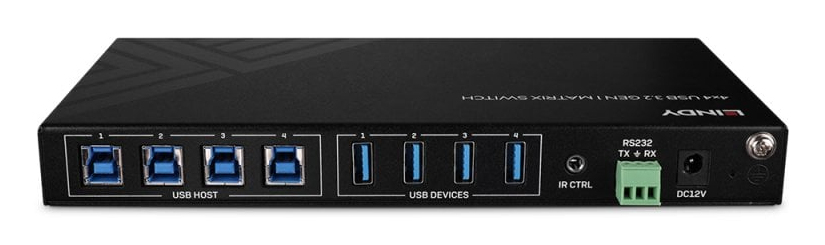

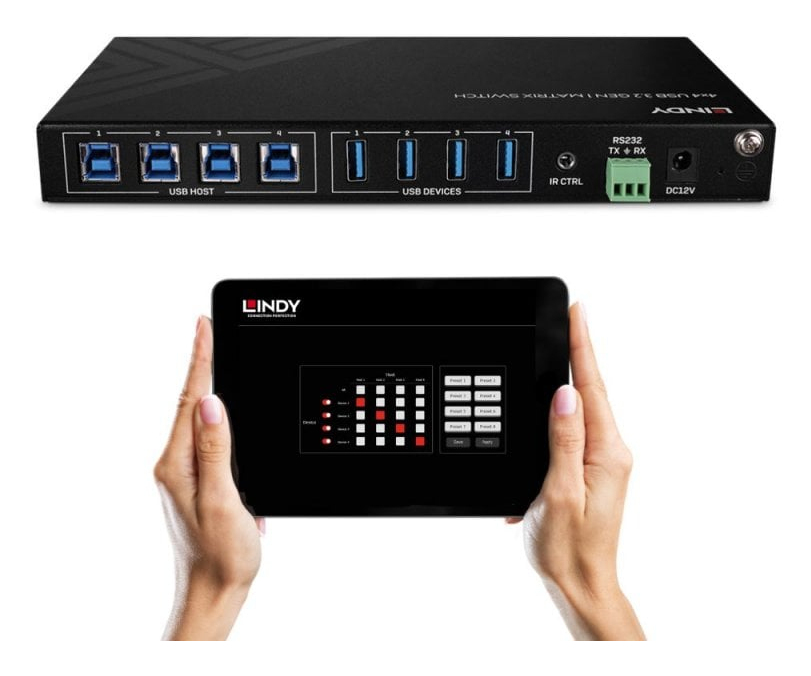

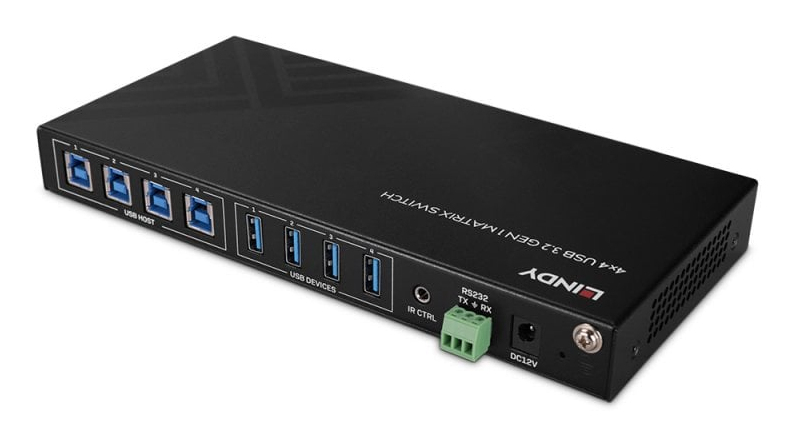

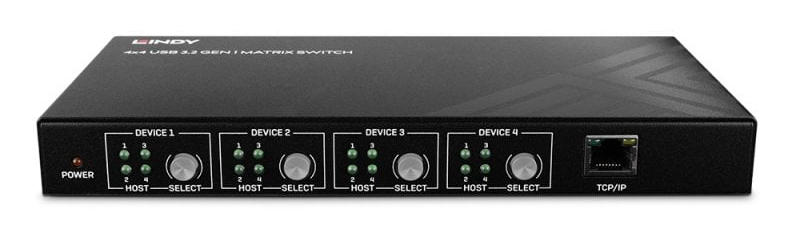

4x4 USB 3.2 Gen 1 Matrix Switch
Model 43406EAN 4002888434065
28 specifications
- Weight1.15 kg
- Bandwidth5 Gbit/s
- Housing colourBlack
- Built-in displayNo
- USB connector typeUSB Type-A, USB Type-B
- AC input voltage12 V
Overview
- Weight
- 1.15 kg
- Bandwidth
- 5 Gbit/s
- Housing colour
- Black
- Built-in display
- No
- USB connector type
- USB Type-A, USB Type-B
- AC input voltage
- 12 V
- Brand
- Lindy
- Category
- Matrix Switcher
- Model
- 43406
- Part number
- 43406
- EAN / UPC
- 4002888434065
- Also known as
- Lindy 4x4 USB 3.2 Gen 1 Matrix Switch
Specifications
28 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Bandwidth | 5 Gbit/s |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Control type | Rotary |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS & REACH |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | USB Type-A, USB Type-B |
| USB ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
| Input current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 221 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 1.15 kg |
| Package type | Box |
| Package width | 260 mm |
| Package depth | 173 mm |
| Package height | 70 mm |
| Package weight | 1.45 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
